Rockwell Automation Energy Management Accelerator Toolkit Quick Start User Manual
Page 342
342
Rockwell Automation Publication IASIMP-QS016C-EN-P - October 2014
Chapter 11
FactoryTalk View ME Energy Faceplates

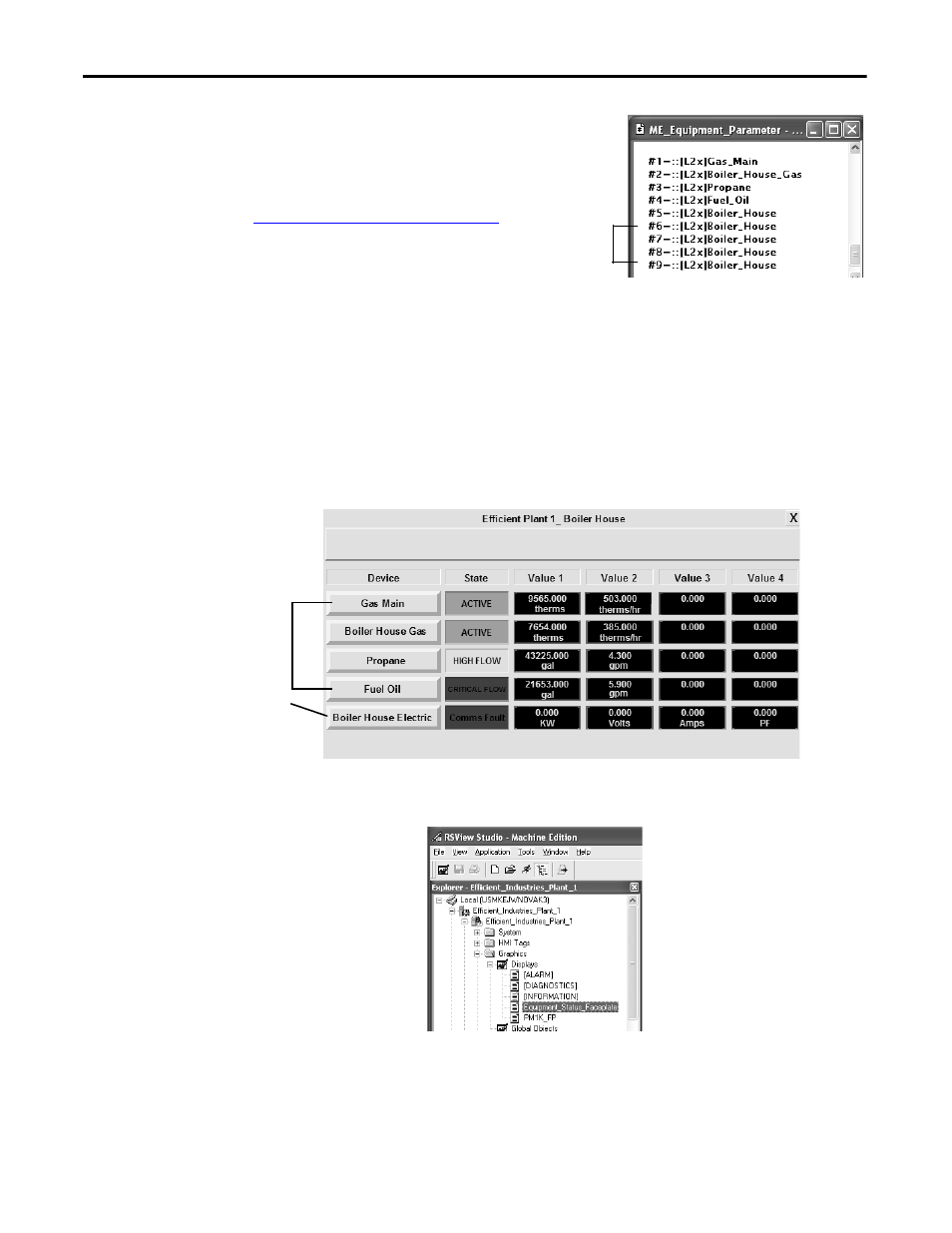

When done, the parameter file will look similar to this.
7. Close and save the file.
Configure Energy Meter Goto Buttons
The Goto Display buttons within the Equipment Status Faceplate are used to identify the energy meters displayed in each
row and can also be used to launch the PowerMonitor faceplates.
For the Efficient Industries Plant 1 example, the first four Goto Display buttons are configured for meter identification
only. The Boiler House Electric Goto Display button is configured to identify the meter and also launch the corresponding
PowerMonitor 1000 faceplate.
Follow these steps to configure the energy meter Goto Display buttons for each row of the Equipment Status Faceplate.
1. Double-click the Equipment Status Faceplate
display in the Graphics folder.
The display opens.
TIP
To add devices that do not have preconfigured
Add-On Instructions or faceplates, refer to the
ME Equipment Status Summary Faceplate at
http://samplecode.rockwellautomation.com
.
Unused
parameters
Goto Display buttons
identify meters only.
Goto Display button
identifies meter and launches
faceplate
