Rockwell Automation Energy Management Accelerator Toolkit Quick Start User Manual
Page 282
282
Rockwell Automation Publication IASIMP-QS016C-EN-P - October 2014
Chapter 11
FactoryTalk View ME Energy Faceplates

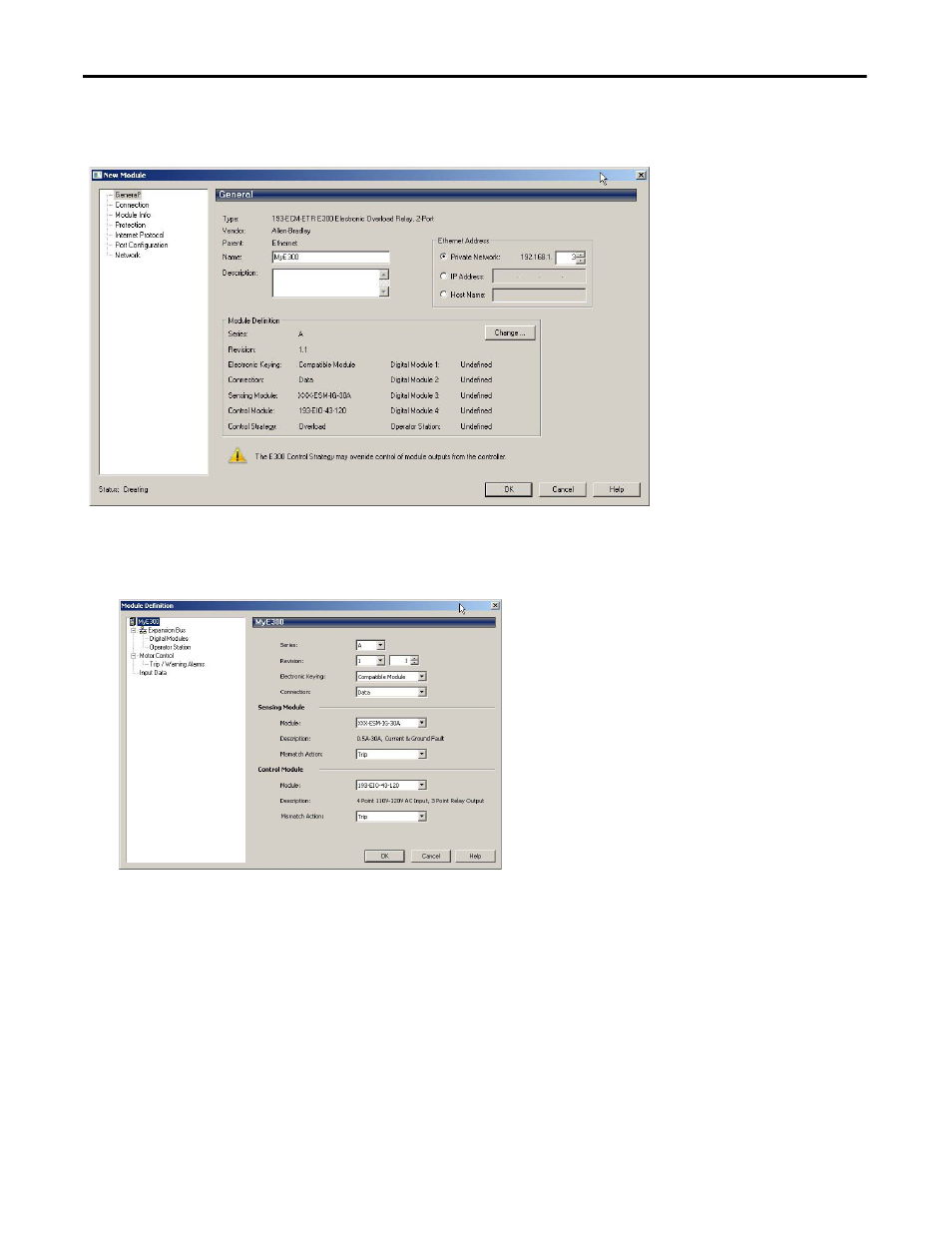

5. Enter a distinct module name and the IP Address of your E300 module.
(For example, we use ‘MyE300’ for the module name throughout this document.)
6. Click Change to launch the Module Definition window.
7. Select the specific E300 Electronic Overload Relay Sensing and Control Modules and their respective Option Match
actions.
