Time of Day Control Chapter 13
System Application Guide
This section guides you through the pre-configured FactoryTalk View Machine Edition faceplate providing you with an
understanding of the status, control, and diagnostic operation of the faceplate display.
Faceplate Operation Overview

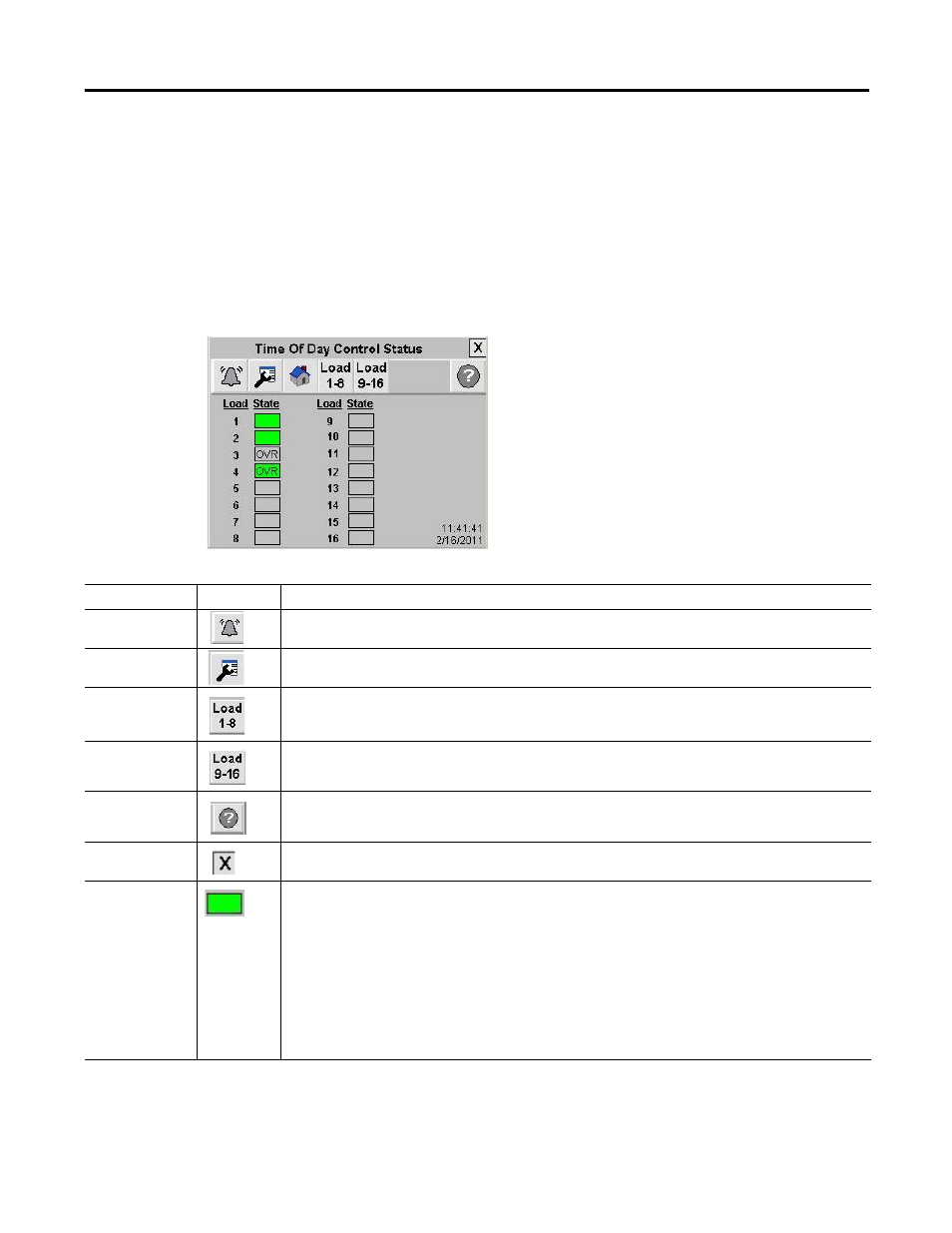

The Time of Day Control Faceplate opens with the Home View displayed.
Title Bar
Faceplate Toolbar
Status
Indicators
Close Button
Button Icons Description
Alarm The alarm button indicates an alarm condition and activates alarm diagnostic views. A grey bell indicates normal
status, with no alarms. A red flashing bell indicates an alarm condition.
Configuration The Configuration button lets you edit the Time of Day control settings, such as load schedules, overrides, time and
date configuration, and calendar configuration.
Load 1…8 The Load 1-8 button lets you view the load status and descriptive name for loads 1…8
Load 9…16 The Load 9-16 button lets you view the load status and descriptive name for loads 9…16
Help The Help button provides information for the existing view.
Close Click the Close button to close the faceplate.
Status Indicators Grey = Off/Auto TOD Control
H Grey = Off/Auto TOD control - Holiday
Green = On/Auto TOD Control
H Green = On/Auto TOD Control - Holiday
OVR-Grey = Off/Override Set/Load is off.
OVR Grey/Red Flashing = Override Off is set, but load is still on.
OVR-Green = On/Override Set/Load is on
OVR Green/Red Flashing = Override On is set, but load is still off.
Red/Grey Flashing = Load is not in OVR, controller telling to turn off, but load is still on.
Red/Green Flashing = Load is not in OVR, controller telling to turn on, but load is still off.
