Time of Day Control Chapter 13
Configure Alarms
Each load is configured to generate a feedback alarm if the load input
status does not match the commanded state. If the load input status is
not available, the feedback alarm can be disabled. Perform the
following steps to disable the alarm.

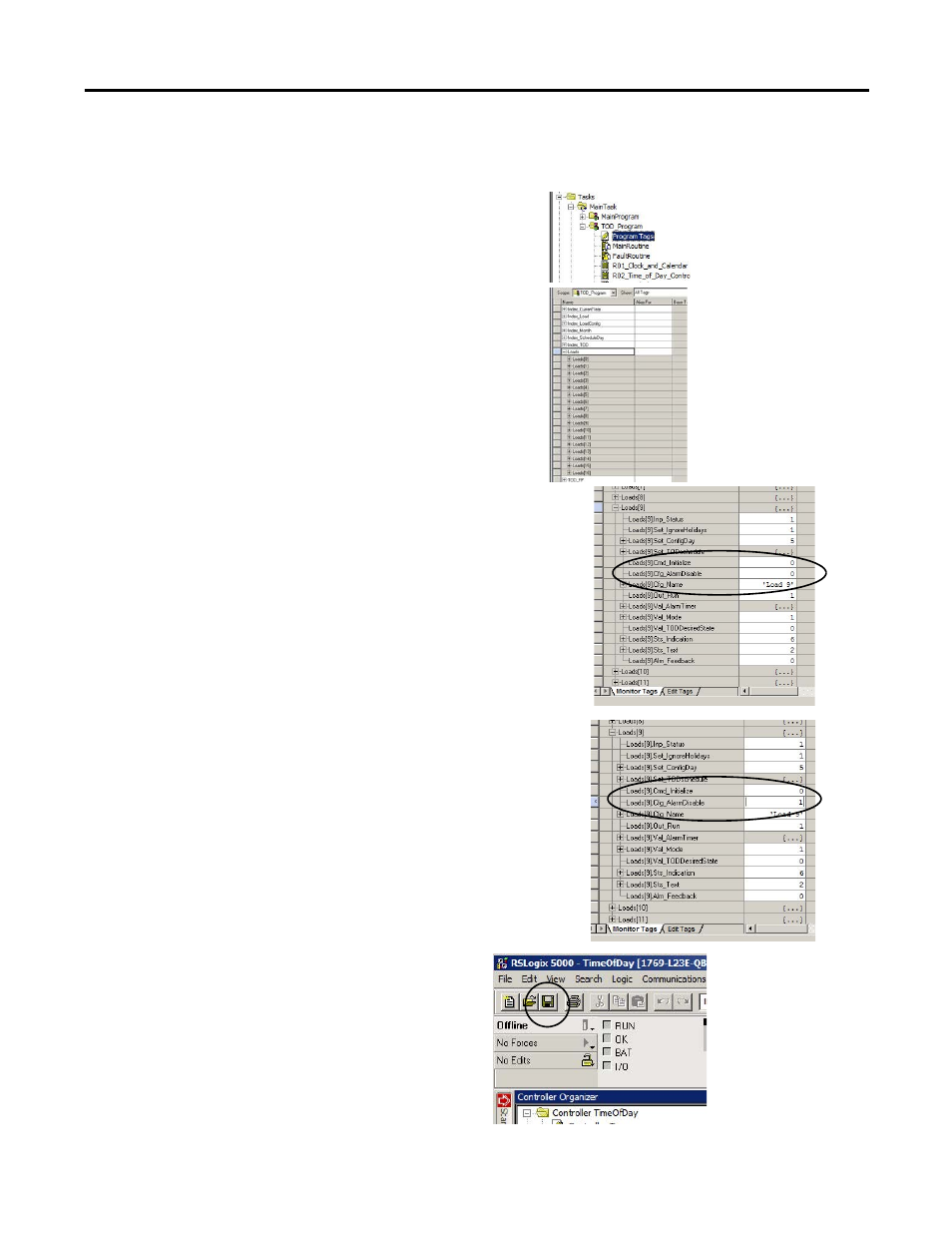

1.
Expand the TOD_Program folder and double-click Program
Tags.
2.
Expand the Loads tag.
3.
Select the Monitor Tags tab and expand the load instance
(Loads[#] where # equals the load number) for the alarm that is
being disabled.
In the Efficient Industries example, load number 9 does not
have an input status, so we would want to disable the feedback
alarm for that load.
4.
Set the Loads[#].Cfg_AlarmDisable tag to 1.
5.
Repeat for any loads that do not have a feedback status.
Save the Project File
Click save to save your RSLogix 5000 application file.
