Rockwell Automation Energy Management Accelerator Toolkit Quick Start User Manual
Page 49
Rockwell Automation Publication IASIMP-QS016C-EN-P - October 2014
49
System Configuration and Wiring Chapter 2
Panel Layout Drawings
The AutoCAD Electrical project includes several panel-layout drawings for the PowerMonitor 1000, PowerMonitor 3000,
and CompactLogix data collector devices. Choose an appropriate drawing as a starting point. Add or remove components
as needed.

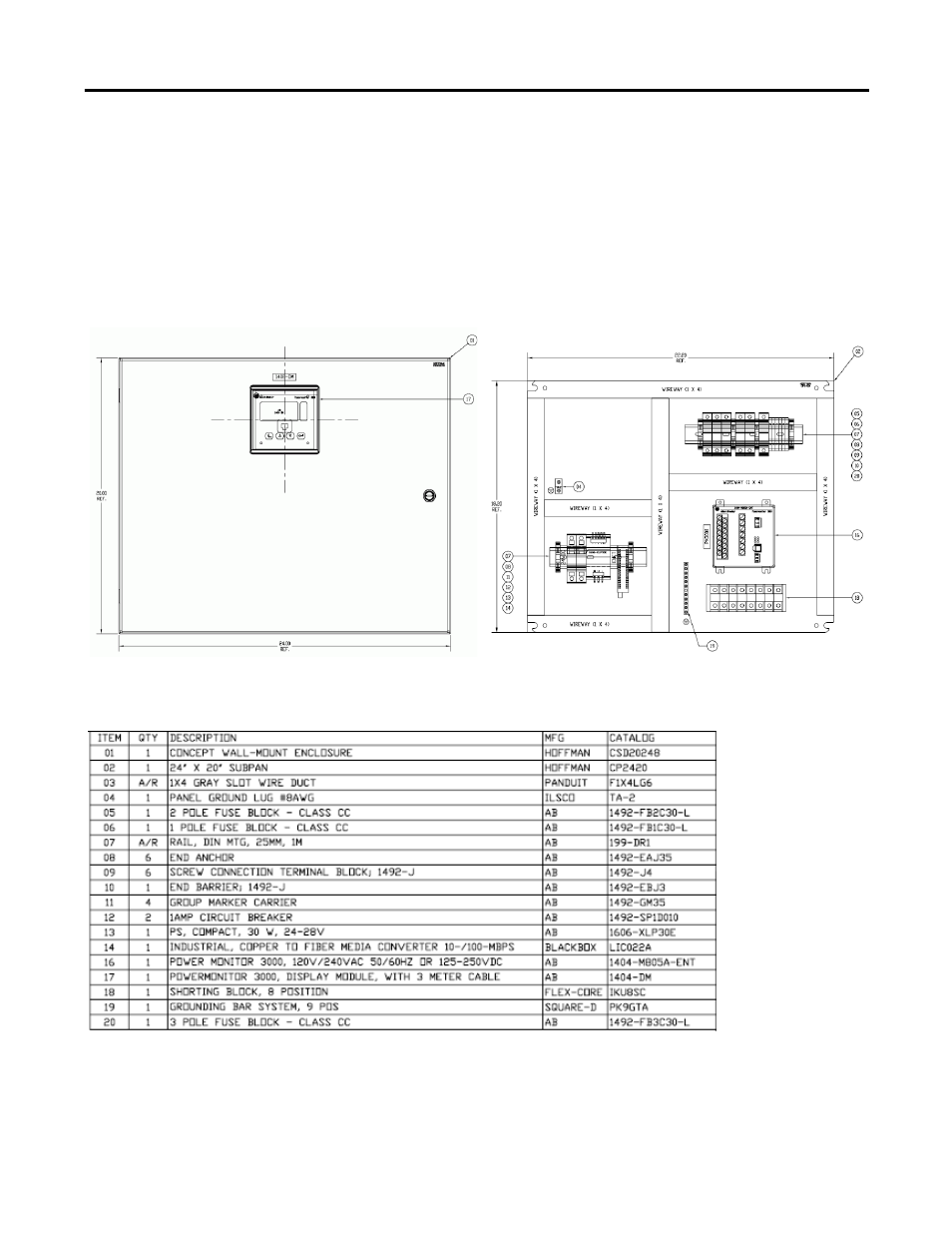

This example shows an energy panel layout with a PowerMonitor 3000 device.
Sample PowerMonitor 3000 Layout
Sample Bill of Material
