System Configuration and Wiring Chapter 2

List Energy Data Points

You will now review your business goals and energy monitoring plan, then enter your data points in the Energy Data
Worksheet.

Review Business Goals and Energy Monitoring Plan

1.

Review the business goals that you created in Chapter 1.

The Efficient Industries Plant 1 example, referenced throughout this quick start, is a midsized plant with two
production areas. These are the business goals of the example plant:
Reduce electrical energy demand charges
Improve electrical energy efficiency through power quality monitoring
Reduce fuels and steam energy usage by running boilers in accordance with production demand schedules
Reduce air compressor energy use
Provide energy cost allocation to production areas, shipping and receiving, and the data center

2.

Review your monitoring plan based on the initial energy assessment findings.

These are the monitoring goals of the Efficient Industries Plant 1 example:
Monitor electrical main power quality
Track electrical consumption of production 1, production 2, shipping/receiving, boiler house, and data center
Monitor gas main, boiler house gas, fuel oil, and propane fuel usage
Monitor steam, air, and water flow

Enter Energy Data Points in Energy Data Worksheet

Enter your energy data points in the Energy Data Worksheet. The procedure demonstrates how to enter data points using
the Efficient Industries Plant 1 example.

1.

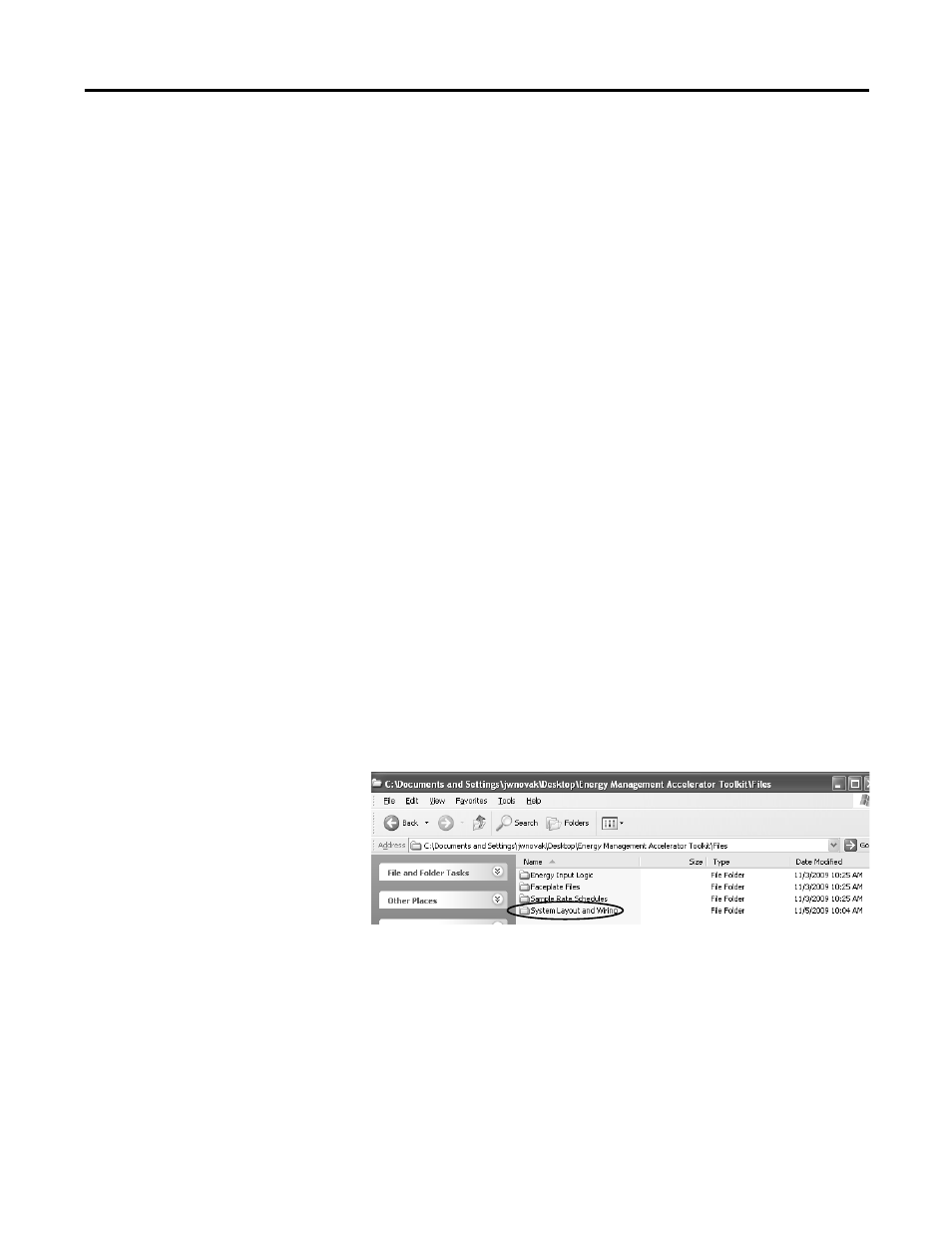

Browse to the System Layout and
Wiring folder on the Energy
Management Accelerator Toolkit
CD image.
