Rockwell Automation Publication IASIMP-QS016C-EN-P - October 2014

123

FactoryTalk EnergyMetrix Software Device Setup

Chapter 6

6.

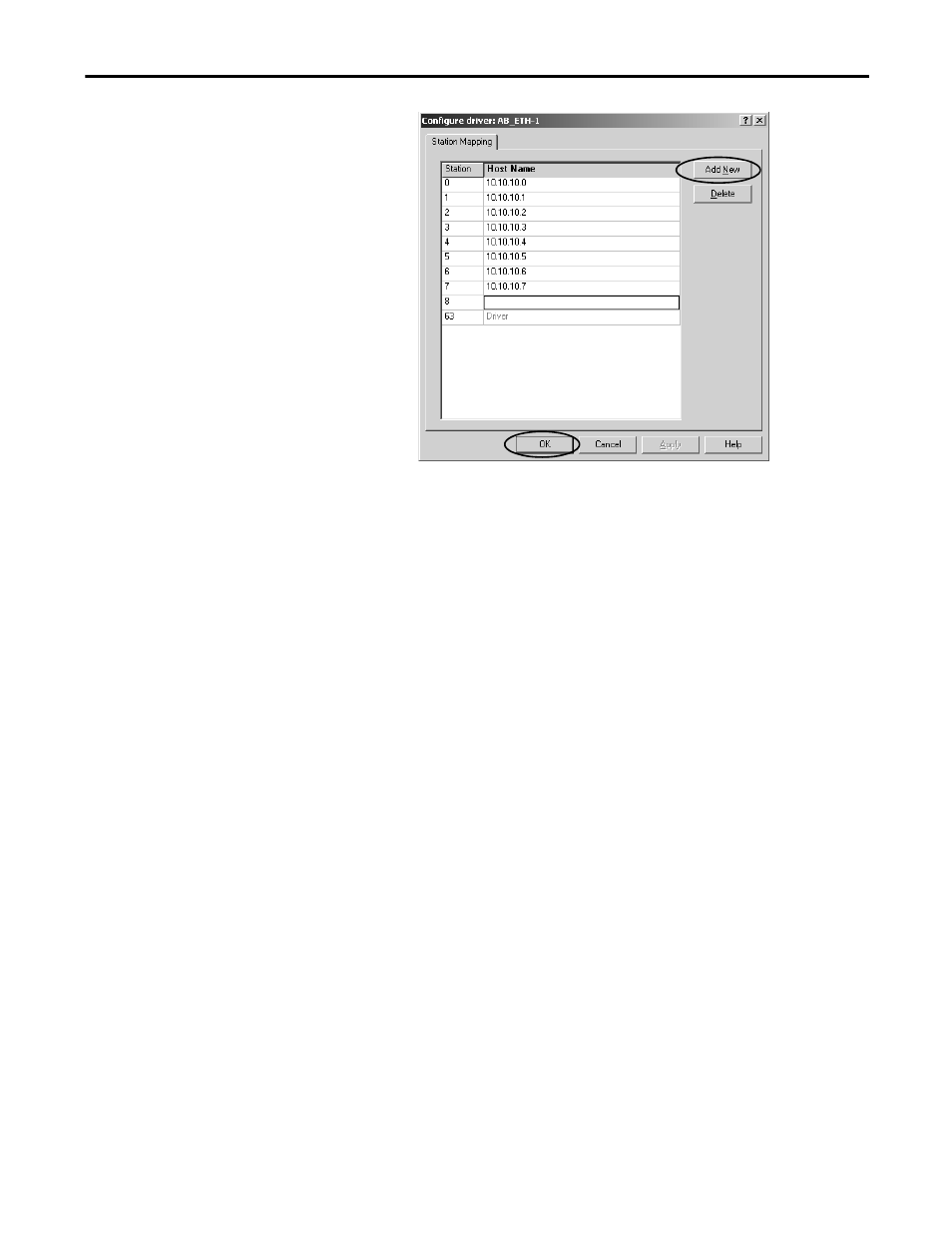

Enter the IP address of your first device
(Station).

7.

Click Add New to enter the IP address for
each additional device you want to add,
then click OK.

In this example, you will enter eight IP
addresses for:

(1) PowerMonitor 3000 device.

(6) PowerMonitor 1000 devices.

(1) CompactLogix controller.

8.

Click OK when done entering IP addresses.

9.

Click Close to exit the Configure Drivers
dialog box.
