Rockwell Automation Energy Management Accelerator Toolkit Quick Start User Manual
Page 343
Rockwell Automation Publication IASIMP-QS016C-EN-P - October 2014
343
FactoryTalk View ME Energy Faceplates
Chapter 11

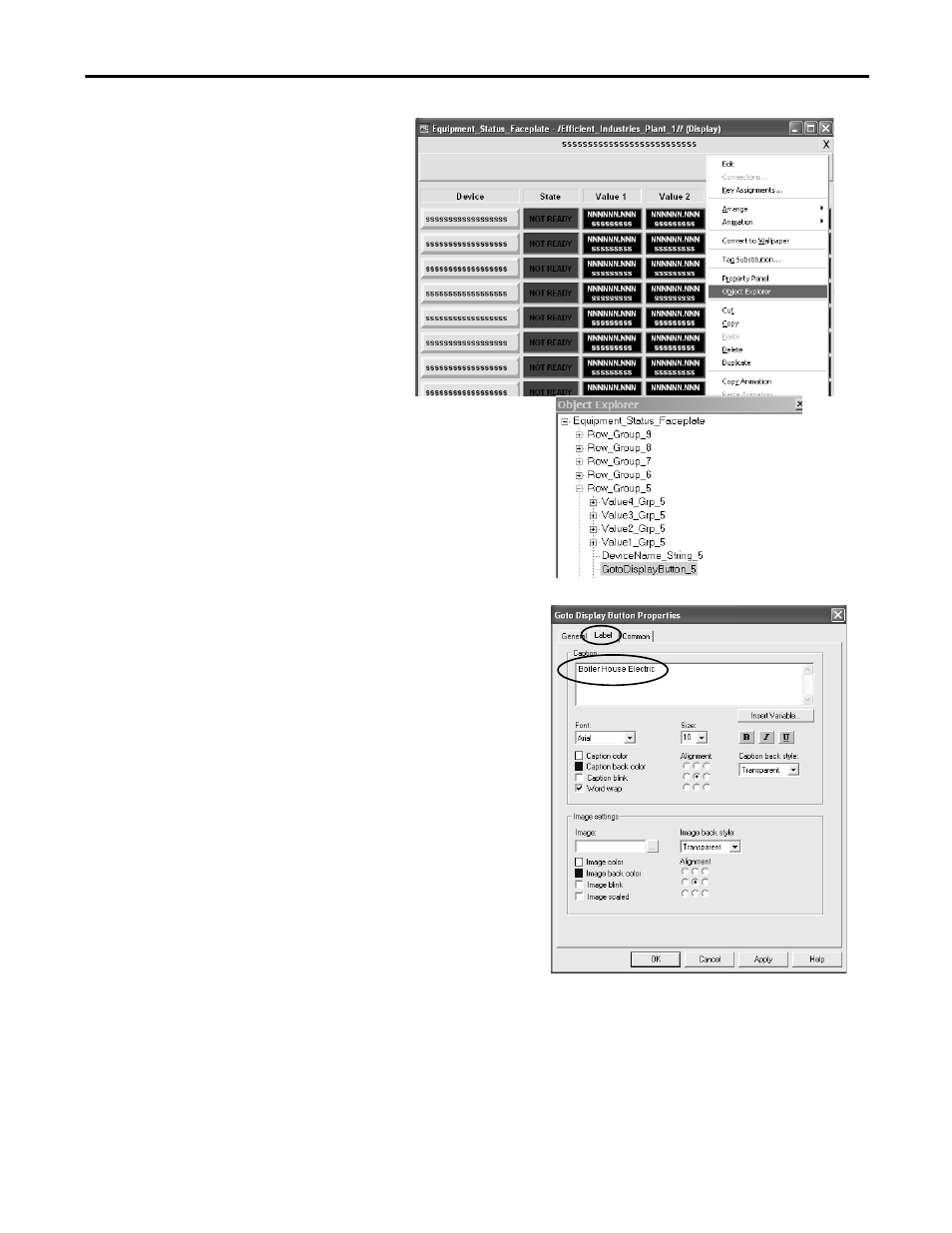

2. Right-click in the display and choose
Object Explorer.
3. Browse to Row_Group_
x and double-click
the GotoDisplayButton_
x that you want to configure.
For this example, GotoDisplayButton_5 is selected to configure
the Boiler_House meter button in row 5 of the faceplate.
4. Click the Label tab and type the text you want to display on the
corresponding Goto Display button.
For this example, Boiler House Electric is entered.
TIP
Complete steps 5 and 6 only if you are configuring the button to also launch a faceplate. Otherwise, skip to step 7.
