Rockwell Automation Energy Management Accelerator Toolkit Quick Start User Manual
Page 222
222
Rockwell Automation Publication IASIMP-QS016C-EN-P - October 2014
Chapter 11
FactoryTalk View ME Energy Faceplates

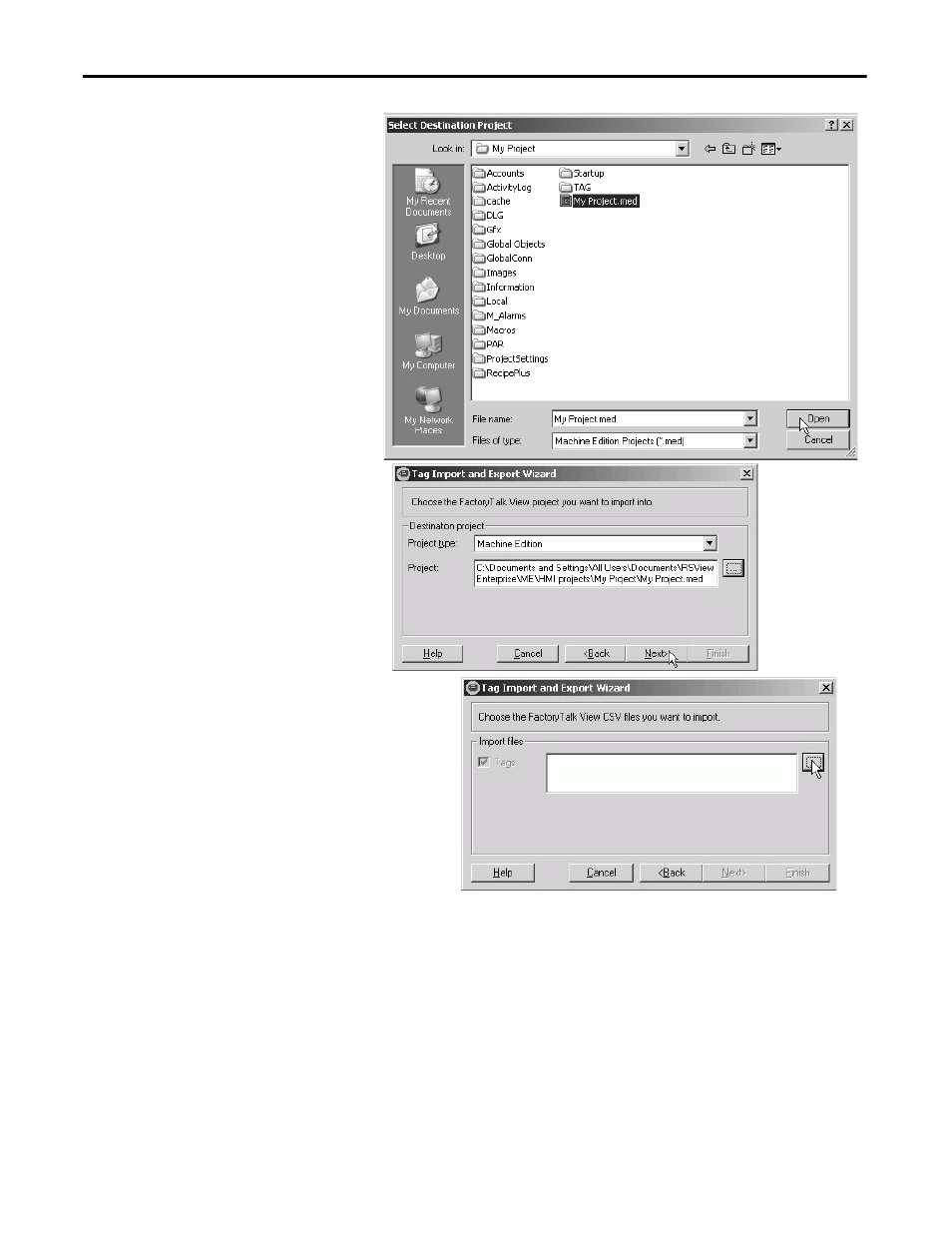

4. Select your FactoryTalk View ME
project file (.med), then click Open.
5. Click Next.
6. Click the ellipse icon to browse for
PM1K_FP_HMI_tags_default.csv.
The file is in the
ME_PowerMonitor1000_Faceplates_Files folder
on the Energy Management Toolkit CD.
