Rockwell Automation Publication IASIMP-QS016C-EN-P - October 2014 363
Demand Control Chapter 12

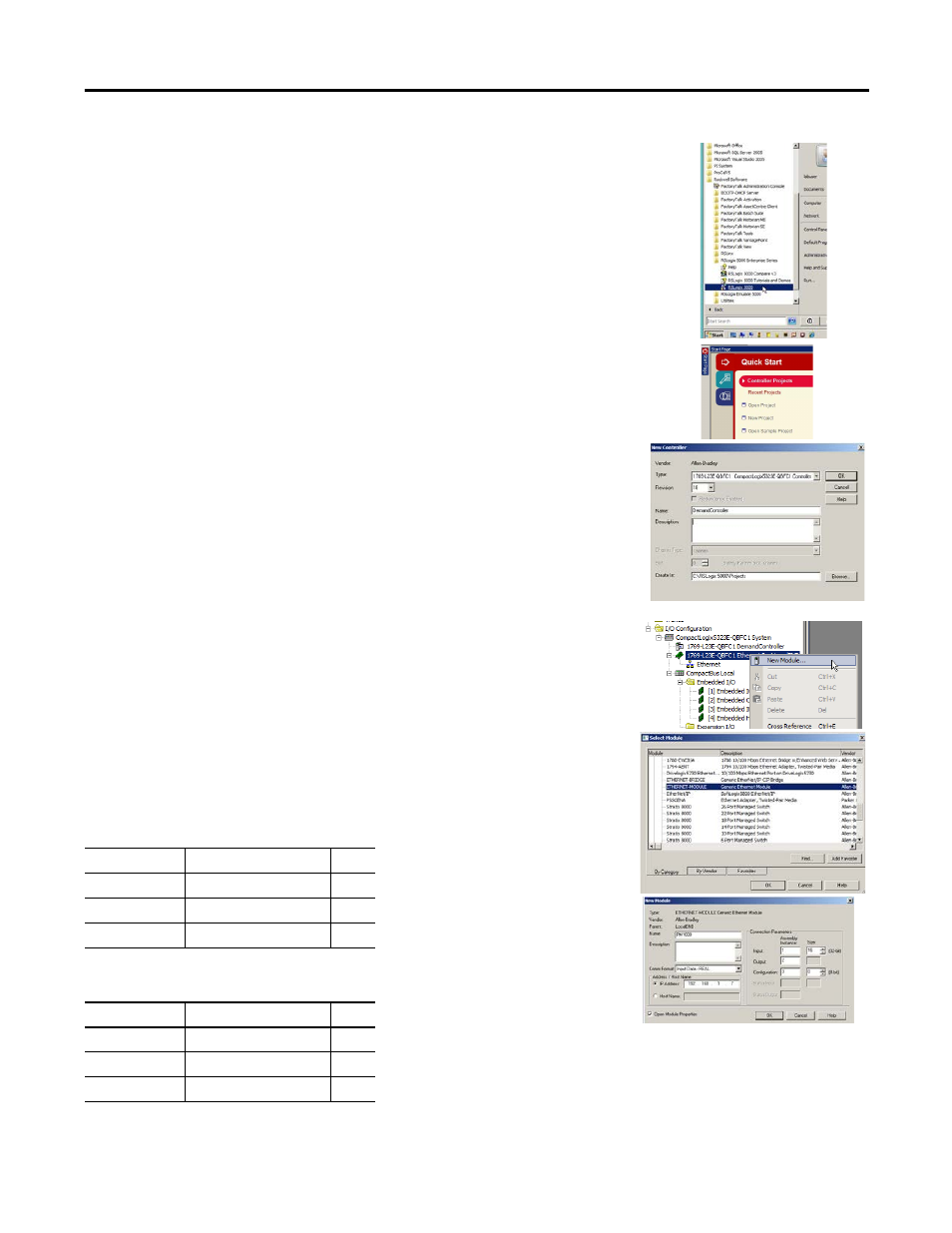

Create or Open a Project in RSLogix 5000 Software
Follow these steps to create or open a project in RSLogix 5000 software.
1. Open RSLogix 5000 software by clicking Start> Programs> Rockwell
Software> RSLogix 5000 Enterprise Series> RSLogix 5000.
The Quick Start window displays in the RSLogix workspace.
2. Click Open Project to open an existing project, or click New Project.
3. If you are creating a new project, configure the controller.
a. Choose your controller and revision number.
b. Enter a unique controller name.
c. Click OK.
Configure the PowerMonitor Unit
Follow these steps to configure a PowerMonitor unit.
1. Right-click the Ethernet Port and choose New Module.
2. Select ETHERNET-MODULE (Generic Ethernet Module) as the module
type and click OK.
3. Configure the PowerMonitor's IP address and Connection Parameters and
then click OK.
PowerMonitor 1000/3000 Connection Parameters
Assembly Instance Size
Input 1 16
Output 2
Configuration 3 0
PowerMonitor 5000 Connection Parameters
Assembly Instance Size
Input 100 60
Output 101 1
Configuration 102 160
