FactoryTalk View ME Energy Faceplates Chapter 11

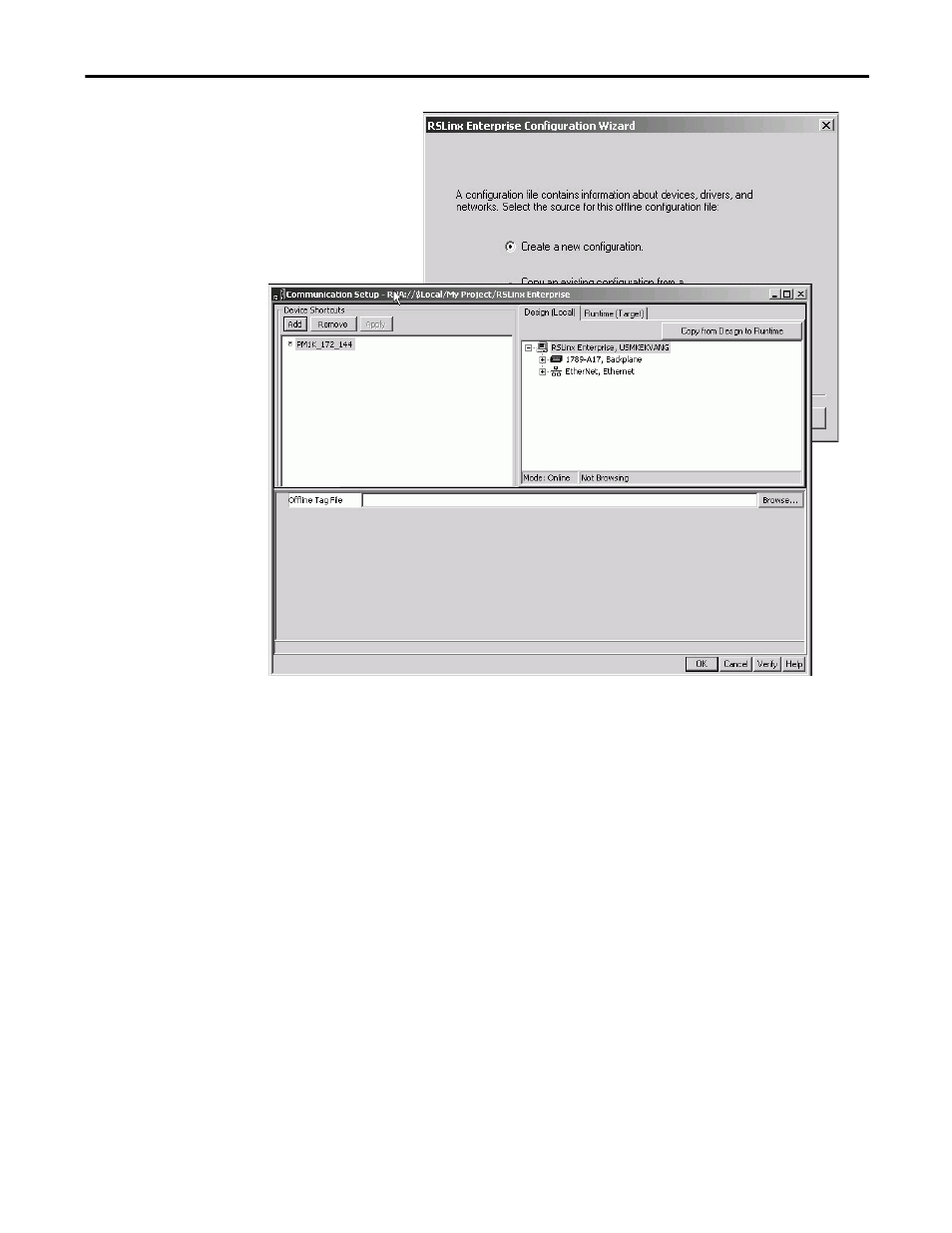

You will see this dialog box if a
communication setup does not exist.
3. Select Create a new configuration and
click Finish.
4. Click Add under Device Shortcuts to
create a new shortcut, then rename the
shortcut PM1K_172_144.
5. Write down the shortcut name, PM1K_172_44, for later use.
6. Click the Design Local tab.
7. Expand the Ethernet network and select the PowerMonitor 1000 meter.
