292 Rockwell Automation Publication IASIMP-QS016C-EN-P - October 2014
Chapter 11 FactoryTalk View ME Energy Faceplates
Configure ME SMC-50 Controller Faceplates
The ME SMC-50 controller faceplate files provide a pre-configured display and associated logic for the SMC-50 Solid
State Soft Starter using FactoryTalk View Machine Edition and RSLogix 5000 software. The faceplate includes status,
control, diagnostic and energy views controlled by its own toolbar buttons.
These instructions are for the SMC_50 communicating over the EtherNet/IP network only.
Configure RSLogix5000 for the SMC-50 Controller Faceplate
Follow these procedures to configure the faceplate.
Add the SMC_50 Controller to Your Ethernet Network
1. Create a new or open an existing RSLogix5000 file.
2. Under I/O Configuration, right-click the network communication module to be used for the intended SMC-50
controller.

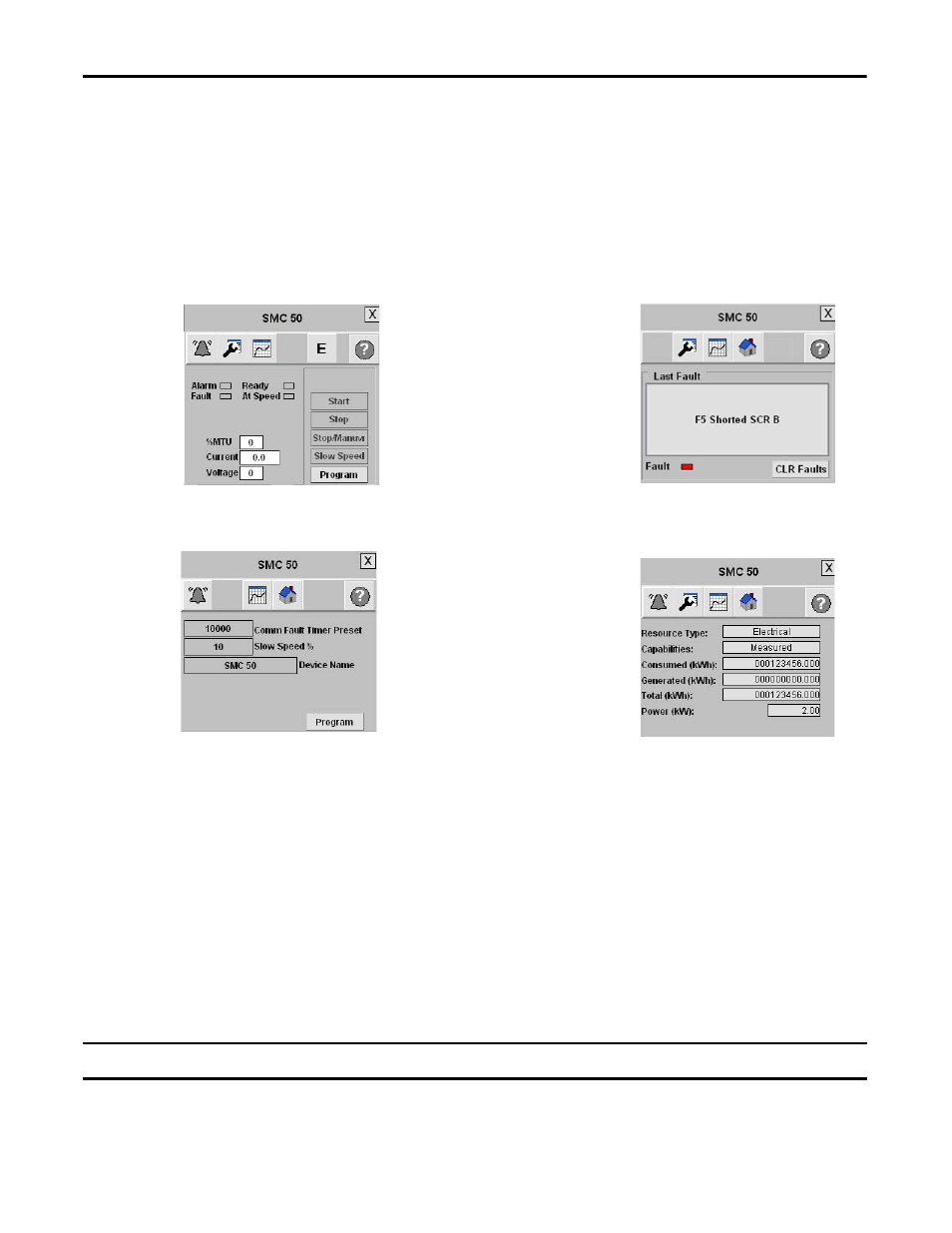

Shows status and provides operator control of the soft starter Shows the last fault.
Home Display Fault Display
Configuration Display Energy Display
Lets you set the communication fault timer and the
slow speed percentage and rename the device for
display at the top of the faceplate.
Shows basic energy data.
IMPORTANT This step assumes you have already added and configured an Ethernet module to your I/O tree.
