Rockwell Automation Publication IASIMP-QS016C-EN-P - October 2014

327

FactoryTalk View ME Energy Faceplates

Chapter 11

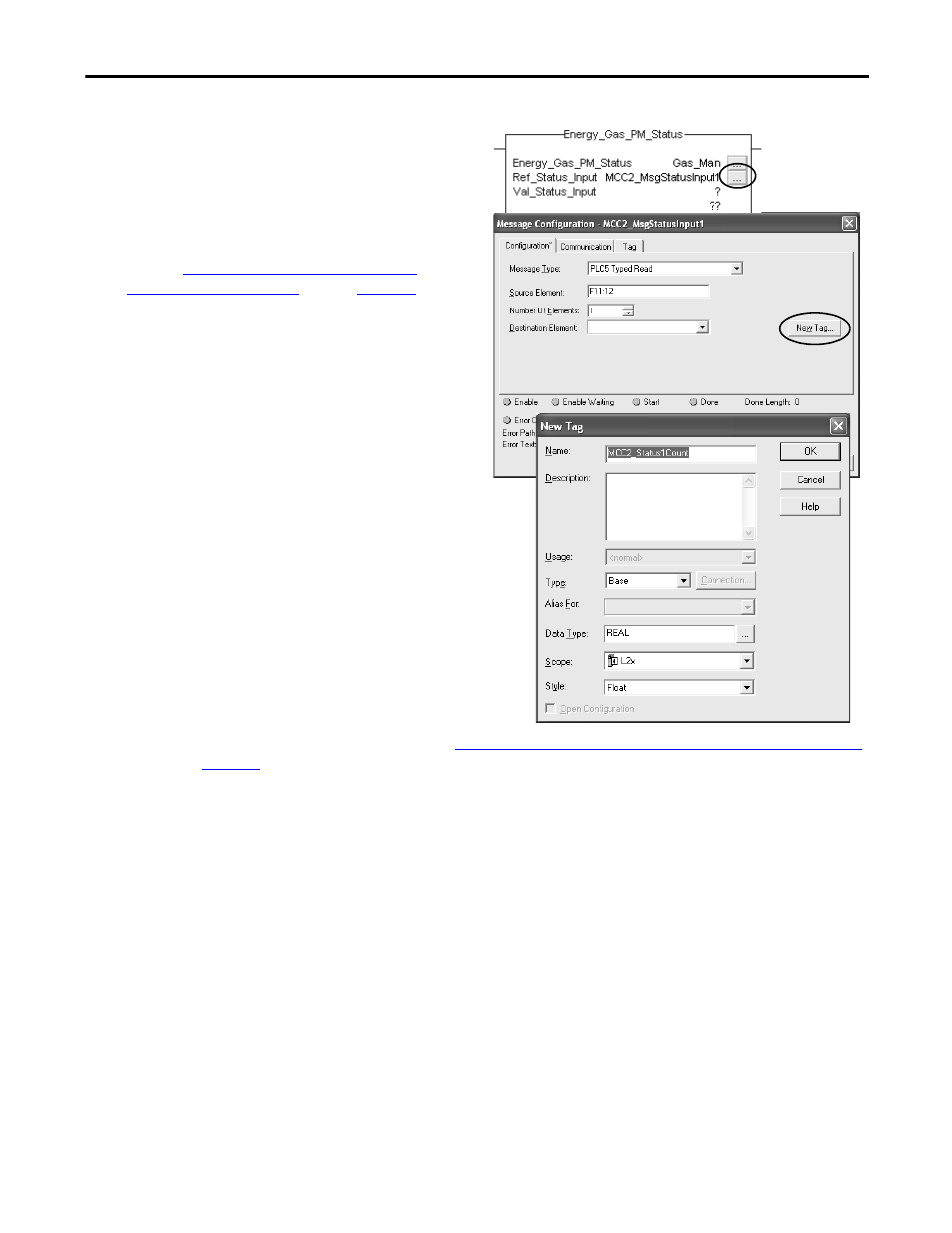

9. Click the Browse icon next to the

xxx_MsgStatusInput1 tag to open the Message
Configuration dialog box.

10. Choose PLC5 Typed Read for Message Type.

11. Enter the associated PM1000, PM3000, or PM5000

PLC5 address as the Source Element.

Refer to

PowerMonitor Status Input Add-on

Instruction Tag References

table on

page 326

for the

correct PLC5 address.

For this example, F11:12 is entered as the Status 1
Count x 1 PLC5 address for the
PM 1000 MCC 2.

12. Set the Number of Elements to 1.

13. Click New Tag to create a controller-scoped tag for the

Destination Element.
a. Enter a name for the associated controller-scoped

tag.

Use the Message Destination Tag defined in the

PowerMonitor Status Input Add-on Instruction Tag References

table on

page 326

.

For this example, MCC_2_Status1Count is entered.

b. Choose REAL as the Data Type for PowerMonitor 1000 messages; choose INT for PowerMonitor 3000

messages.

c. Choose a controller from the Scope list.

For this example, L2x is chosen.

d. Choose Float as the style for PowerMonitor 1000 and PowerMonitor 5000 messages.

Choose Decimal for PowerMonitor 3000 messages.

e. Click OK.
