Alarm history faceplate logic – Rockwell Automation Energy Management Accelerator Toolkit Quick Start User Manual
Page 437
Rockwell Automation Publication IASIMP-QS016C-EN-P - October 2014
437
Energy Electric Add-On Instructions Appendix C
Alarm History Faceplate Logic
The following logic is included in the Energy_Electric_Digital, Energy_Electric_Analog, and Energy_Electric_PM_Status
Add-On Instructions to initiate an alarm trigger and send corresponding device state to the alarm trigger value.

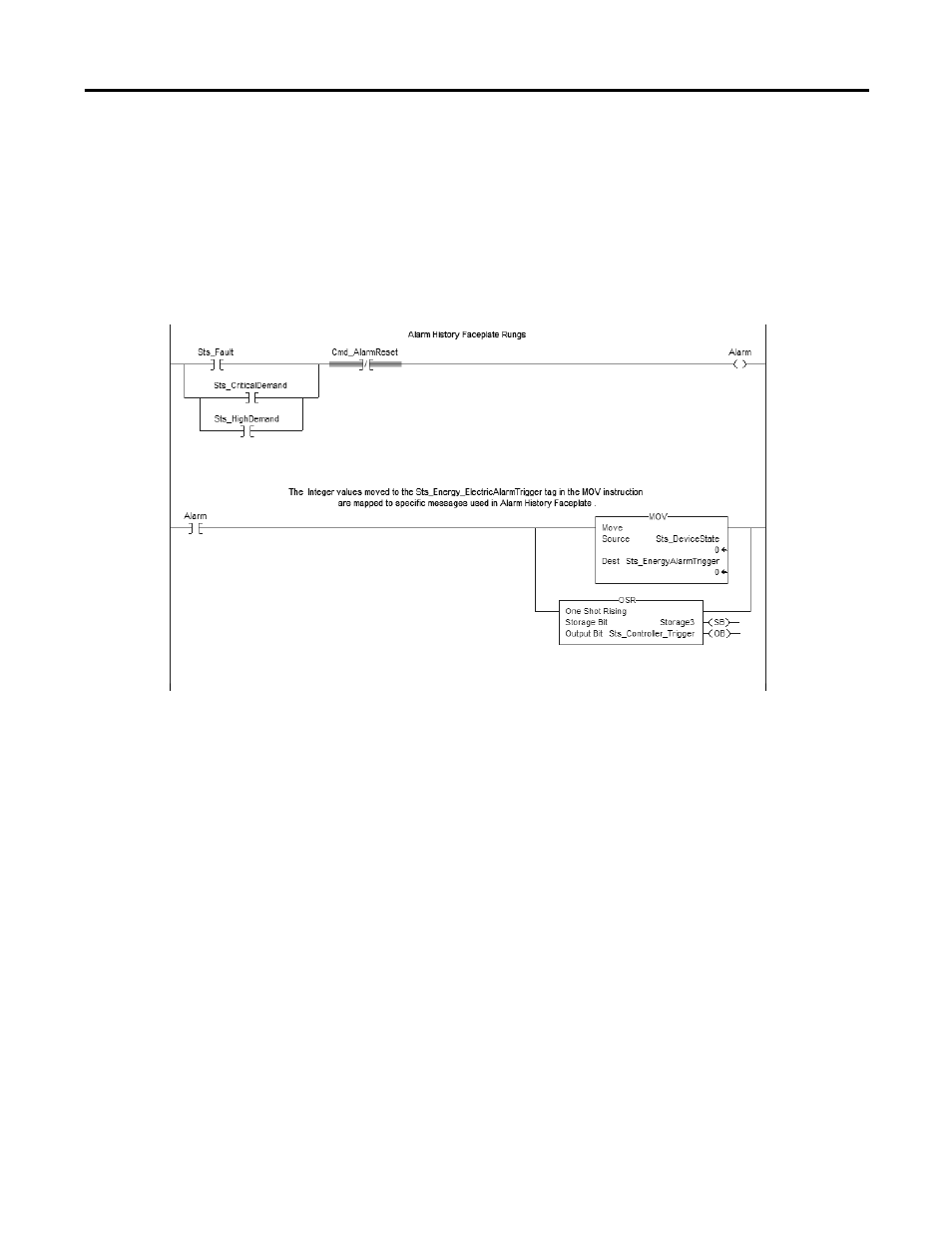

The following two rungs monitor the Fault, High Flow, and Critical Flow bits, and send predefined integer values to the
Sts_Energy_AlarmTrigger tags already configured in the Alarm History setup file. The Alarm History Faceplate uses these
values to trigger the appropriate messages to show on the Alarm Display.
