Rockwell Automation Energy Management Accelerator Toolkit Quick Start User Manual
Page 41
Rockwell Automation Publication IASIMP-QS016C-EN-P - October 2014
41
System Configuration and Wiring Chapter 2
11.
Select a Device Class and Meter Type on the FactoryTalk EnergyMetrix tab of the Energy Data Worksheet for the
OPC server data point identified in step 10.
a. Select OPC Server on Ethernet for the Device Class.
b. Select OPC for the Meter Type.

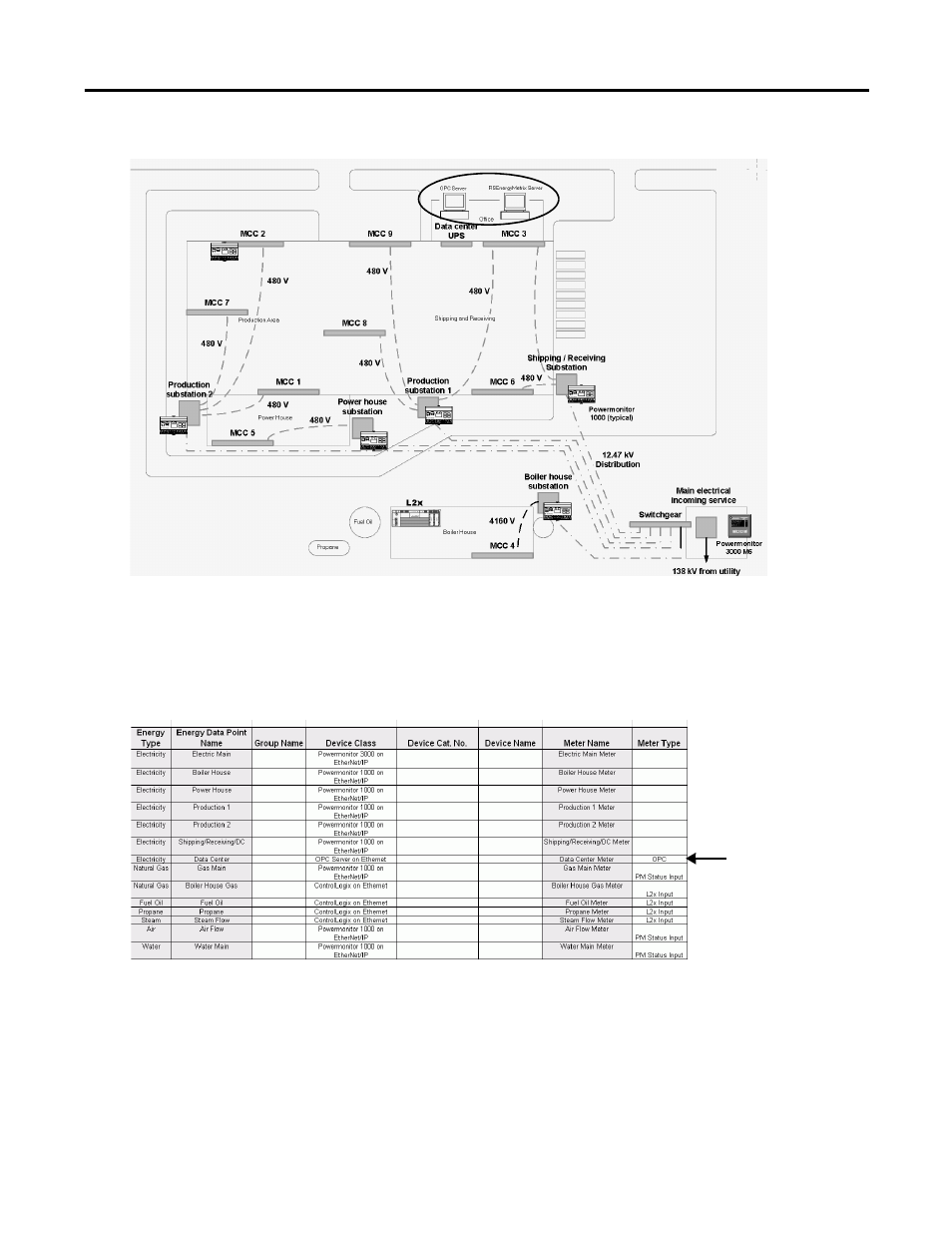

For the Efficient Industries Plant 1 example, the entry for the OPC server data point would look like this.
