46 Rockwell Automation Publication IASIMP-QS016C-EN-P - October 2014
Chapter 2 System Configuration and Wiring

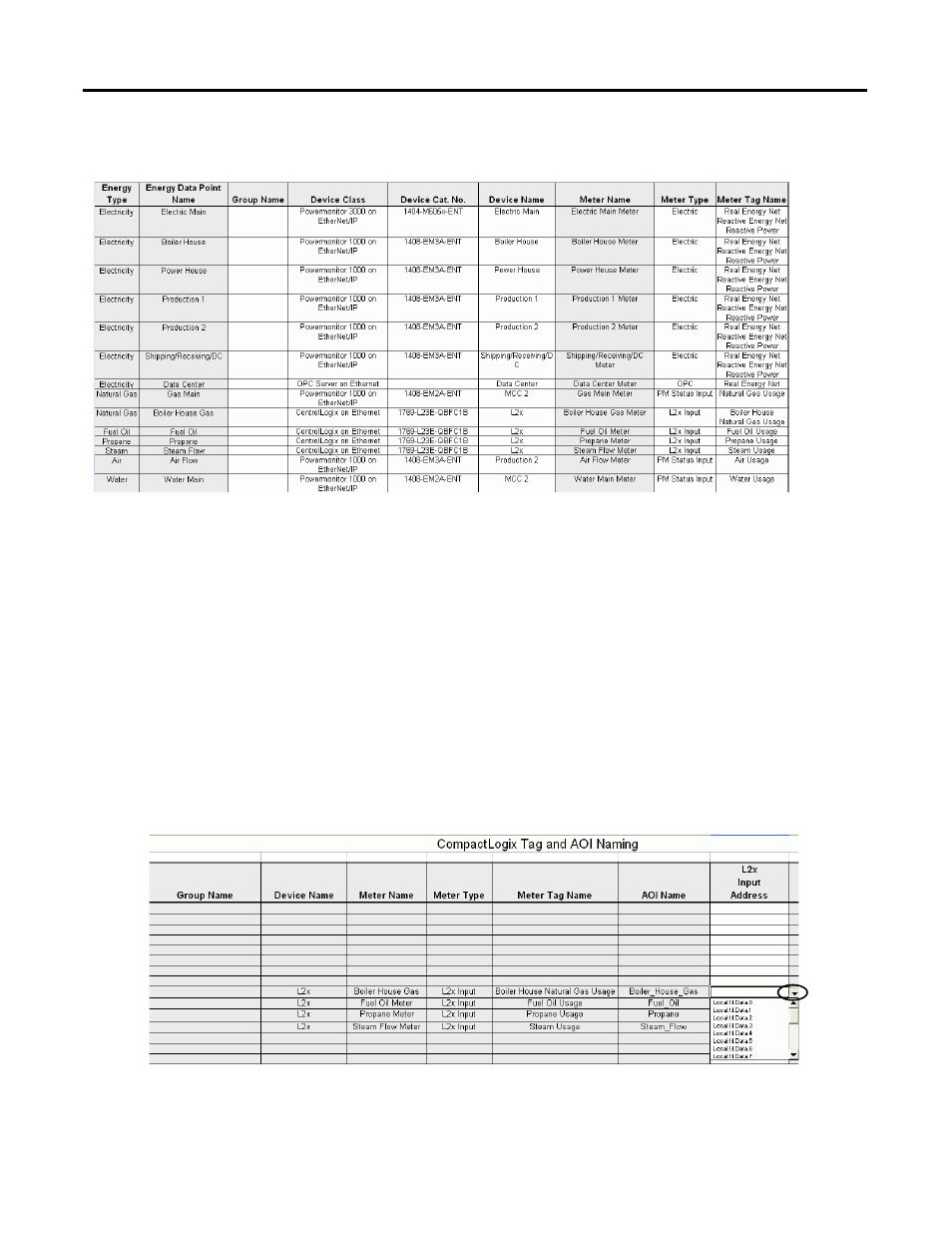

For the Efficient Industries Plant 1 example, the meter type and meter tag name listing would look like this.
Assign CompactLogix Input Addresses
Follow these steps to assign CompactLogix hardware input addresses and corresponding PLC-5

mapped tags to the
energy data points.
1. Click the CompactLogix tab on the Energy Data Worksheet.
2. Enter an L2x address for each energy data point that is connected to a CompactLogix controller.
a. Select a cell in the L2x column and click the pull-down list icon.
b. Choose the L2x digital hardware address to which the energy data point is wired.
Digital Input addresses are Local:1:I.Data.0 through Local:1:I.Data.15.
Analog Input addresses are Local:3:I.CH0 through Local:3:I.CH3.
