436 Rockwell Automation Publication IASIMP-QS016C-EN-P - October 2014
Appendix C Energy Electric Add-On Instructions

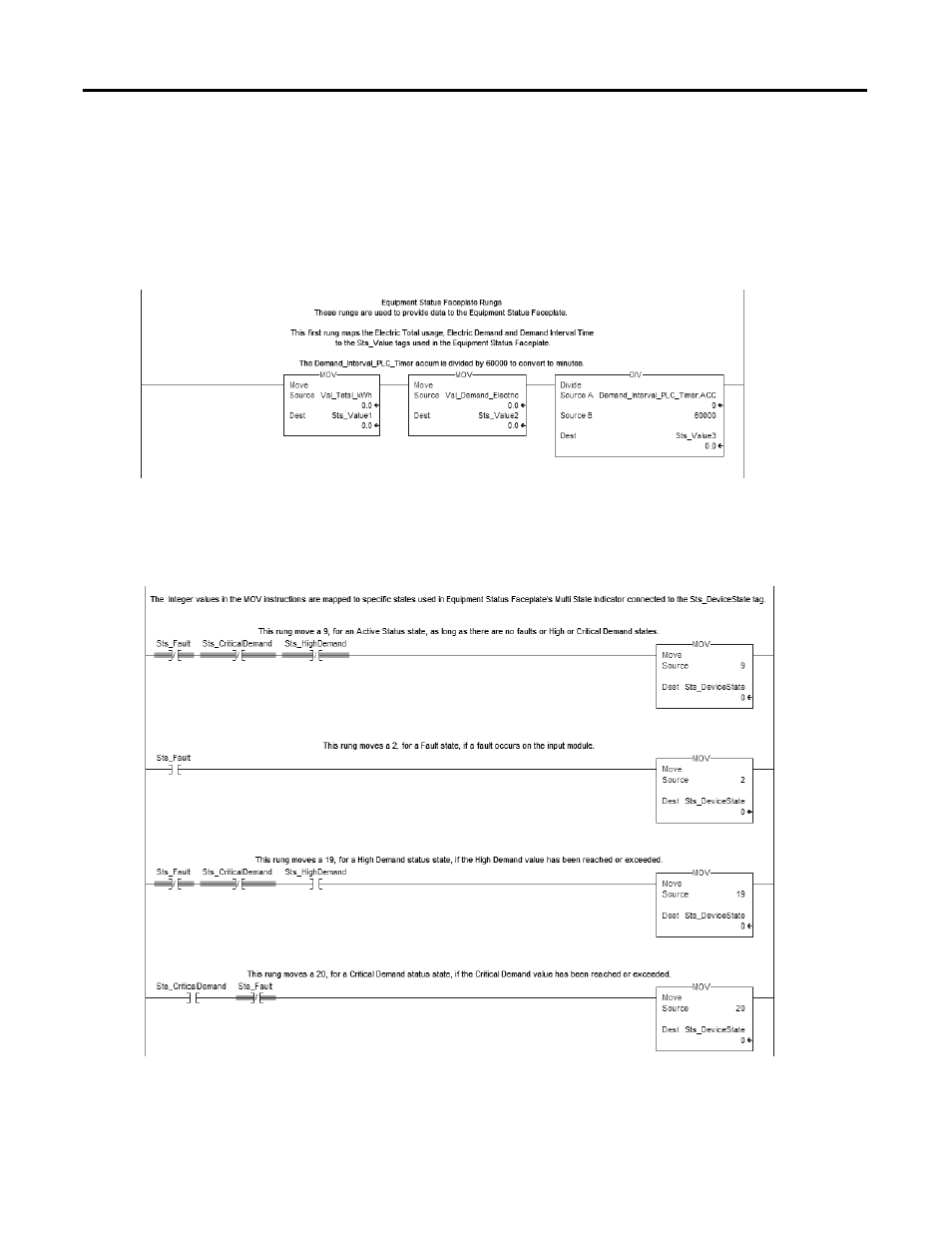

Equipment Status Faceplate Logic
The following logic is included in the Energy_Electric_Digital, Energy_Electric_Analog, and Energy_Electric_PM_Status
Add-On Instructions to provide the Equipment Status Faceplate with electric consumption, demand, and device states.
This rung moves the Val_Total_ xxx and Val_Avg_Flow_xxx values to predefined tags in the Equipment Status Faceplate,
Sts_Value1 and Sts_Value2.
The next four rungs monitor and send device status information to the Equipment Status Faceplate including Active, Fault,
High Flow, and Critical Flow.
The Sts_DeviceState tag is a predefined tag mapped to a multistate indicator in the Equipment Status Faceplate. Each
device status state is triggered by a unique integer value preconfigured in the multistate indicator.
