Rockwell Automation Energy Management Accelerator Toolkit Quick Start User Manual
Page 284
284
Rockwell Automation Publication IASIMP-QS016C-EN-P - October 2014
Chapter 11
FactoryTalk View ME Energy Faceplates

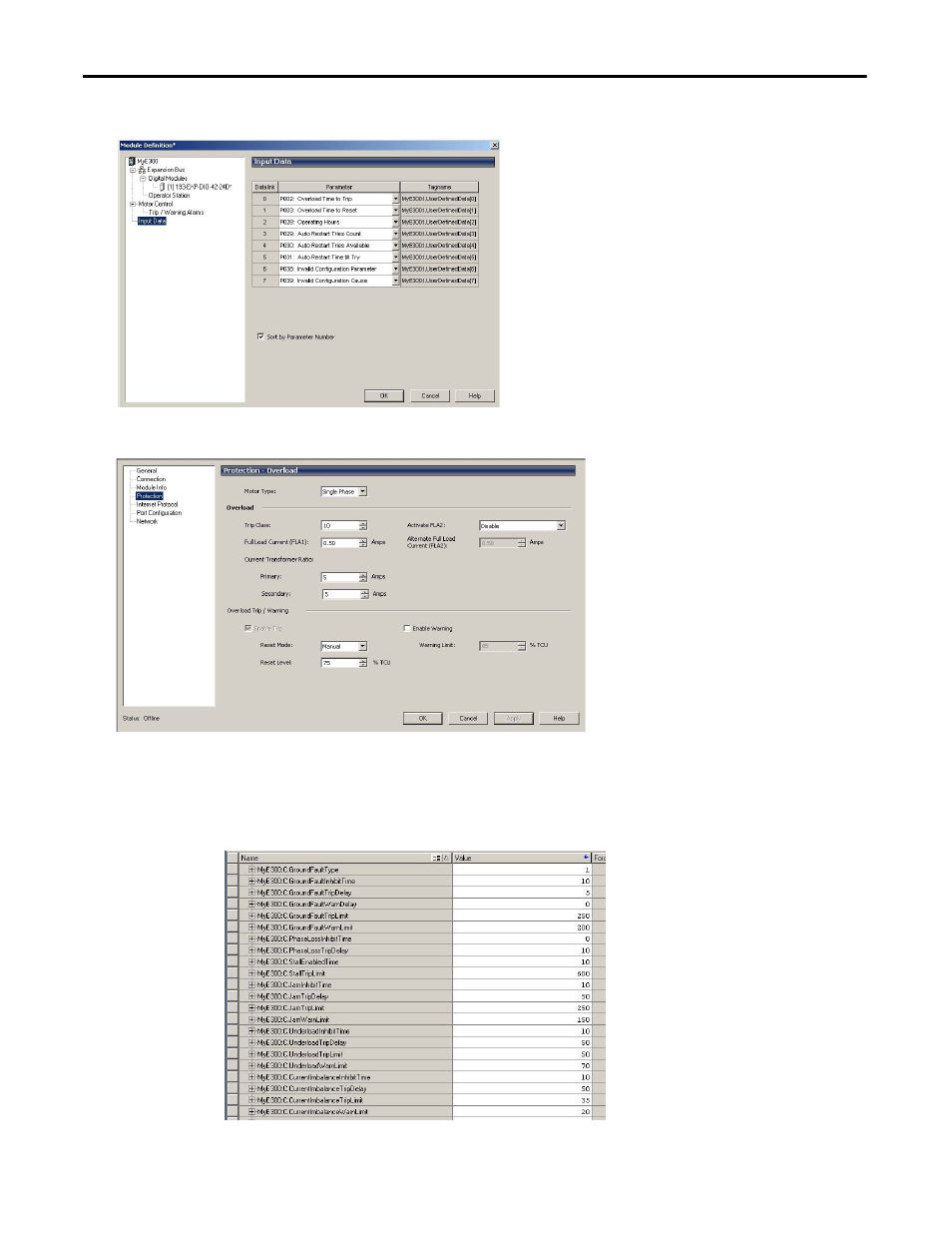

12. Click OK to complete the module definition.
13. Select Protection and set the overload configuration parameters for your specific application and click OK.
14. To configure the other protection configuration parameters, follow these steps.
a. In Controller Tags, browse to the configuration tags of the newly added E300 module.
b. Modify the configuration tags directly to enable and adjust the other current-based and control-based protection
functions of the E300 module.
