Configure powermonitor messages – Rockwell Automation Energy Management Accelerator Toolkit Quick Start User Manual
Page 367
Rockwell Automation Publication IASIMP-QS016C-EN-P - October 2014
367
Demand Control Chapter 12
8.
Click Enter.
9.
Use the same procedure to configure the I/O mapping for the remaining loads in rungs 3…32.
If you are not utilizing all 16 loads in your application, you can delete the unused I/O mapping rungs, or leave them as is.

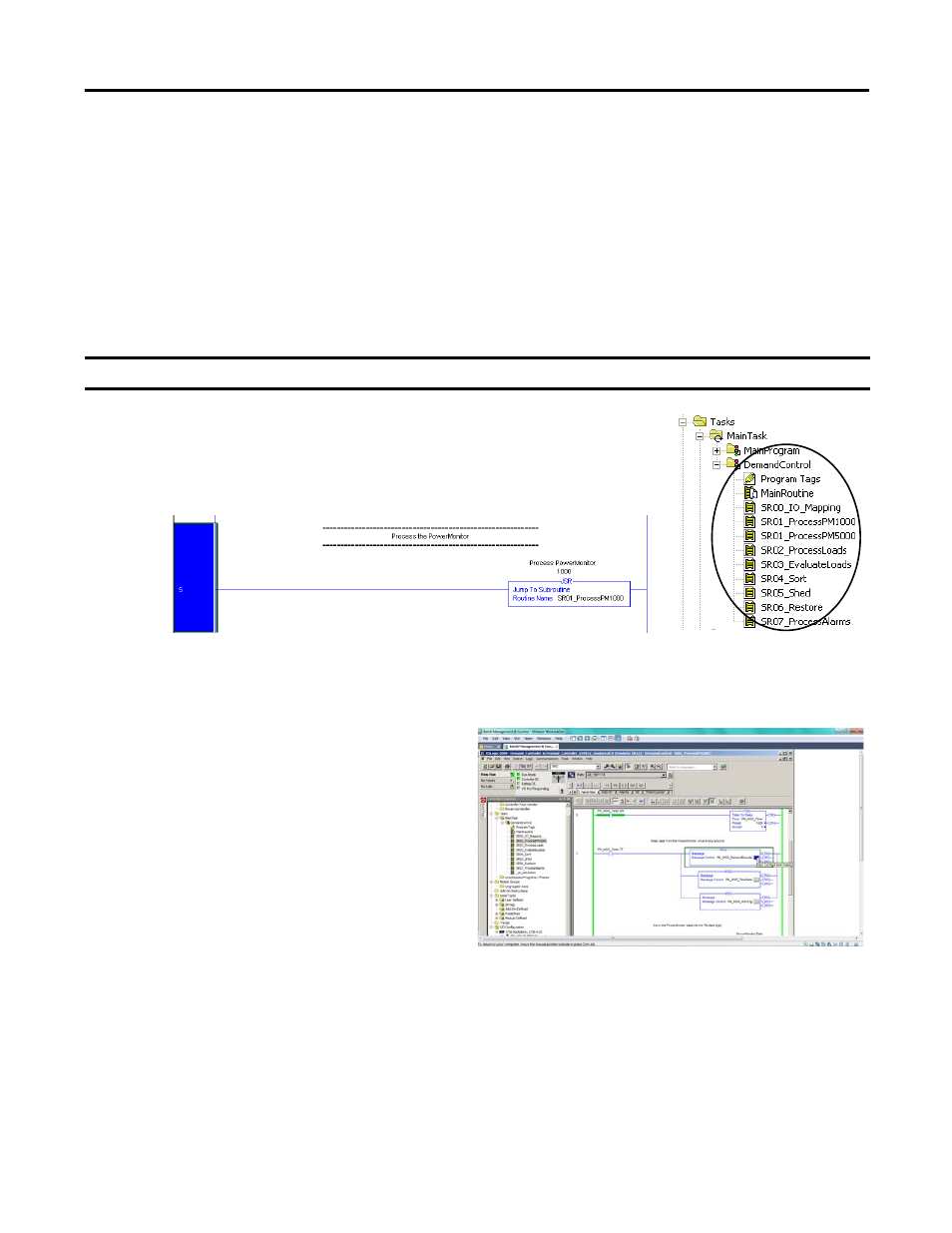

Configure PowerMonitor Messages
Follow these steps to configure PowerMonitor unit messages.
1.
If you are using a PowerMonitor 1000, skip to step 2.
If you are using a PowerMonitor 5000, you must edit the main routine.
a. Expand the DemandControl program and double-click the MainRoutine.
b. In rung 5, modify the JSR instruction to call the SR01_ProcessPM5000 routine.
2.
Expand the DemandControl program and double-click the SR01_ProcessPM1000 or SR01_ProcessPM5000
routine as required per your application.
Rung 1 includes several message instructions.
3.
For each message, click the View Configuration
Dialog button to launch the configuration window.
IMPORTANT The demand control program is configured to use a PowerMonitor 1000 by default.
