Rockwell Automation Publication IASIMP-QS016C-EN-P - October 2014 37
System Configuration and Wiring Chapter 2

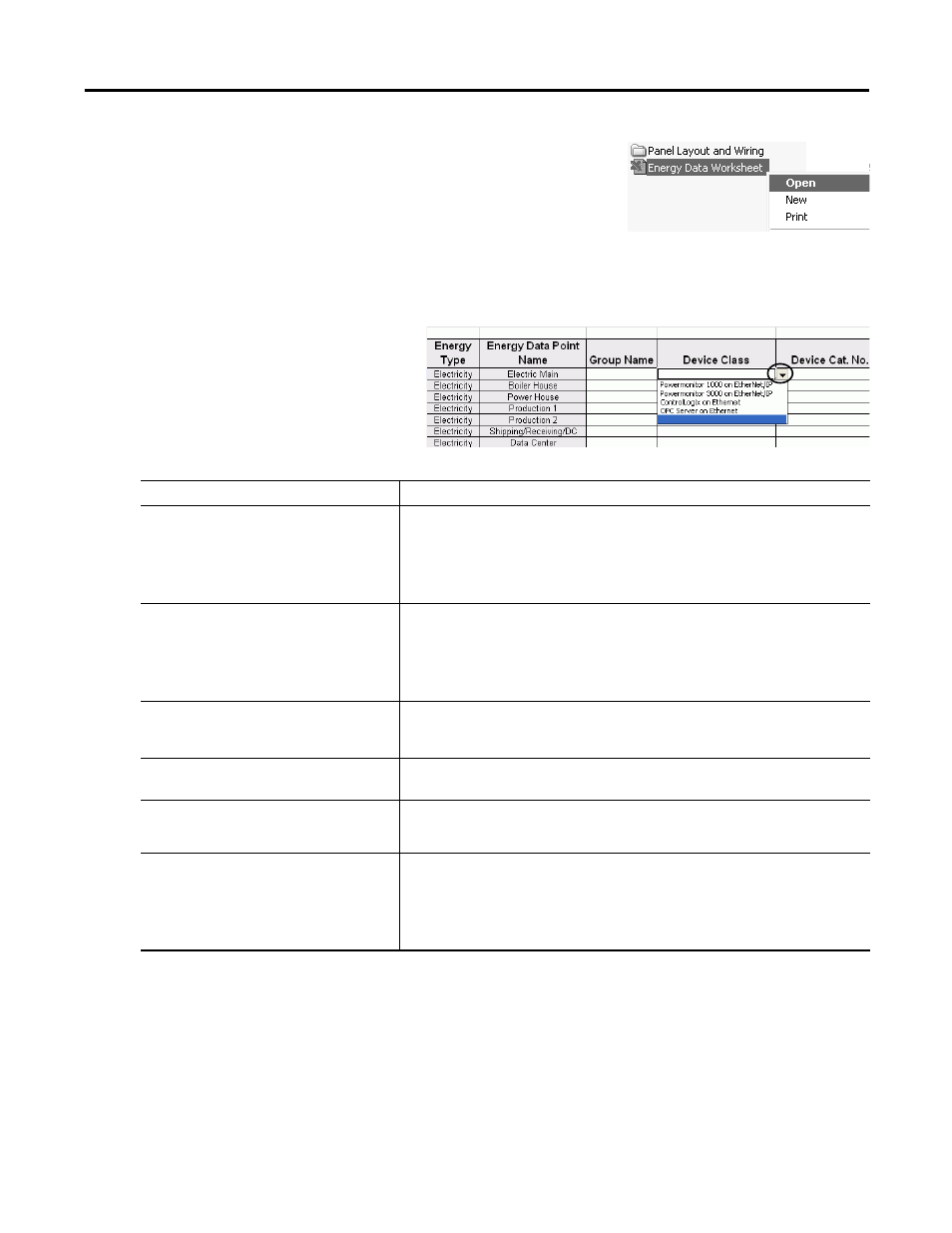

2. Browse to the System Layout and Wiring folder on your Energy
Management Accelerator Toolkit CD image and open the Energy Data
Worksheet.
3. Click the FactoryTalk EnergyMetrix tab and select a Device Class for each PowerMonitor added to the layout.
The device classes will be used in later chapters when configuring devices in FactoryTalk EnergyMetrix software and
also determine the energy meter tag names.
a. Select a cell in the Device Class column
and click the pull-down list icon.
b. Choose the appropriate PowerMonitor
device class for each data point based on
the Device Class Selection table.
Device Class Selection
Device Class Energy Data Point Metering Requirements
PowerMonitor 1000 on EtherNet/IP Select this device class for:
• electricity data points requiring only consumption and demand monitoring.
• other energy data points in close proximity to a PowerMonitor 1000 device that can
provide a digital contact output, for example, an existing utility meter with a pulse
contact output.
A maximum of two energy status inputs are provided on the PowerMonitor 1000 device.
PowerMonitor 3000 on EtherNet/IP Select this device class for:
• electricity data points requiring consumption, demand, and power quality monitoring.
• other energy data points in close proximity to a PowerMonitor 3000 device that can
provide a digital contact output, for example, an existing utility meter with a pulse
contact output.
A maximum of two energy status inputs are provided on the PowerMonitor 3000 device.
PowerMonitor W250 Select this device class for:
electricity data points requiring consumption monitoring in a wireless communication
network
PowerMonitor 500 on Serial Select this device class for:
electricity data points requiring consumption monitoring
PowerMonitor 500 on EtherNet/IP Select this device class for:
• electricity data points requiring consumption monitoring
• can also be used for demand monitoring
PowerMonitor 5000 on Ethernet/IP Select this device class for:
• electricity data points requiring consumption, demand, and power quality monitoring.
• other energy data points in close proximity to a PowerMonitor 5000 device that can
provide a digital contact output, for example, an existing utility meter with a pulse
contact output.
A maximum of four energy status inputs are provided on the PowerMonitor 5000 device.
