Rockwell Automation Energy Management Accelerator Toolkit Quick Start User Manual
Page 319
Rockwell Automation Publication IASIMP-QS016C-EN-P - October 2014
319
FactoryTalk View ME Energy Faceplates
Chapter 11

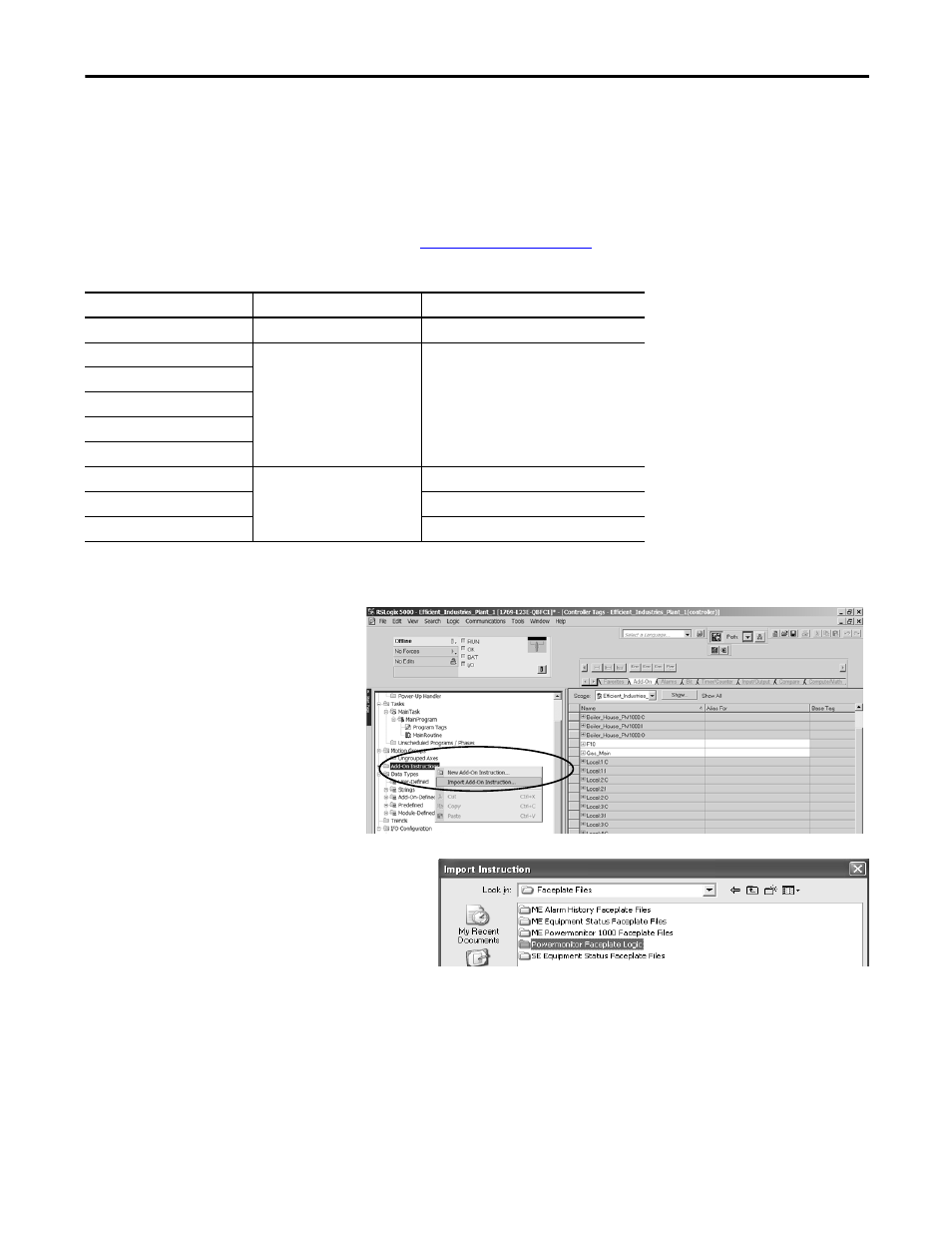

Import PowerMonitor and Status Input Faceplate AOIs
You will now learn how to import faceplate Add-On Instructions for PowerMonitor devices and PowerMonitor status
inputs. These Add-On Instructions support the Equipment Status and Alarm History faceplates for FactoryTalk View
Machine Edition or Site Edition applications.
Faceplate Add-on Instruction types required for the
example are listed in the table.
Follow these steps to import the required Add-on Instructions.
1. Open your RSLogix 5000 project.
2. Right-click the Add-On
Instructions folder and choose
Import Add_On Instruction.
3. Browse to the Faceplate Files folder on your
Energy Management Accelerator Toolkit CD
image and select the PowerMonitor Faceplate
Logic Files folder.
Energy Meter
Meter Type
Add-on Instruction Required
Electric Main
PowerMonitor 3000
PM_3000
Boiler House
PowerMonitor 1000
PM_1000
Power House
Production 1
Production 2
Shipping/Receiving/DC
Gas Main
PowerMonitor Status Input
Energy_Gas_PM_Status
Air Flow
Energy_Air_PM_Status
Water Main
Energy_Water_PM_Status
