Chapter 11
FactoryTalk View ME Energy Faceplates

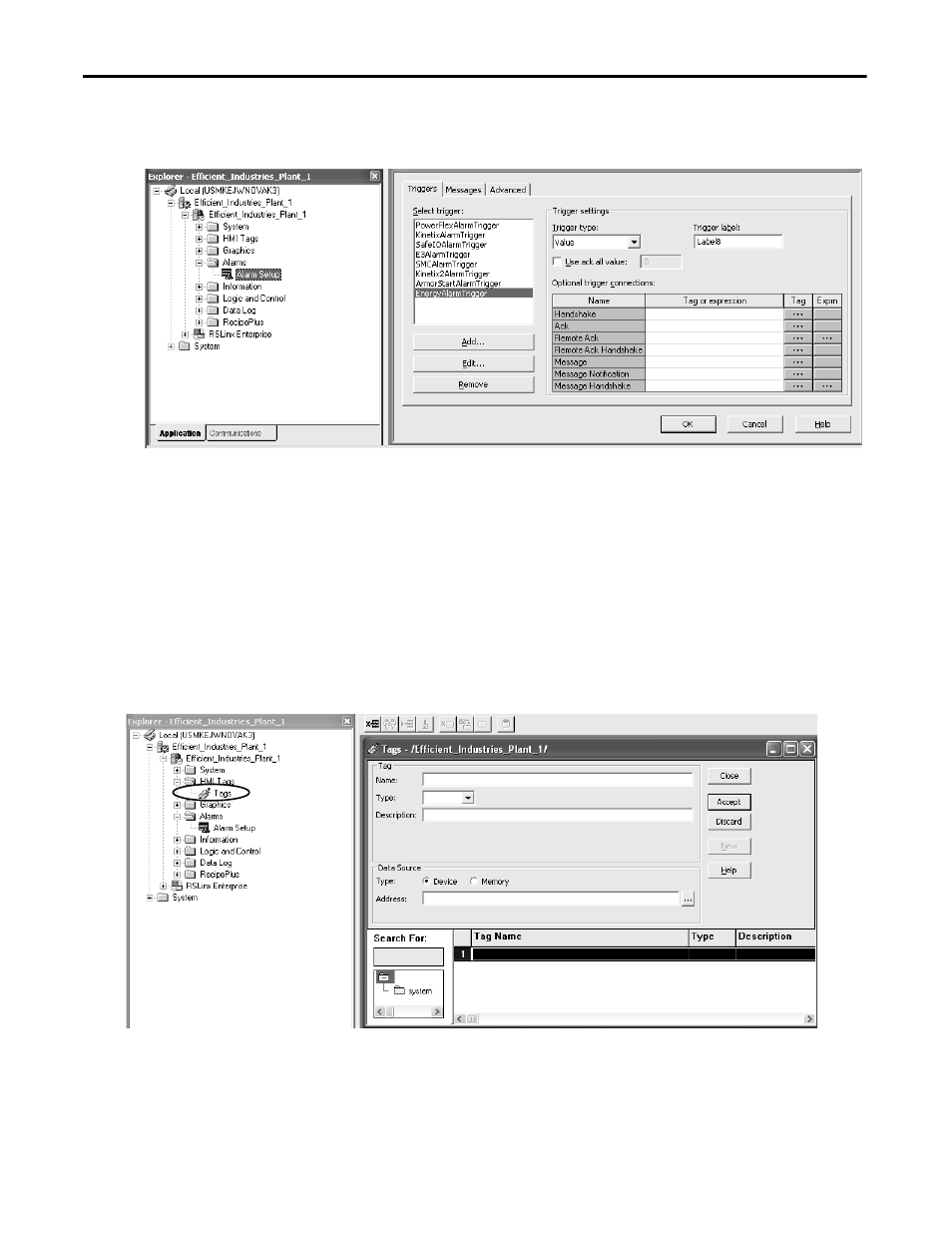

6. Double-click Alarm Setup in the Alarms folder to open the new configuration.
You will see the EnergyAlarmTrigger tag and other Rockwell Automation device triggers.
You can remove device triggers not needed by selecting the triggers and clicking Remove. Corresponding messages
not needed can be deleted from the Messages tab.
Configure Alarm Trigger Tags
Although the alarm triggers were imported, you must configure the alarm trigger tags.
Follow these steps to configure the alarm trigger tags.
1. Access the Machine Edition HMI tag database by double-clicking Tags under the HMI Tags folder.
