Rockwell Automation Energy Management Accelerator Toolkit Quick Start User Manual
Page 64

64
Rockwell Automation Publication IASIMP-QS016C-EN-P - October 2014
Chapter 3 Energy Data Collector Configuration
2.
Enter the default password of 0 or another valid
password to access Edit mode.
3.
Enter the value of the Voltage Mode you are using.
4.
Set elements 2, 3, and 4 to configure the PT and
CT parameters.
5.
Click Submit to send the parameter changes to the
PowerMonitor 1000 device.
TIP
The password appears as asterisks
(*)
.
If you don’t know the password,
call Rockwell Automation technical
support for assistance.

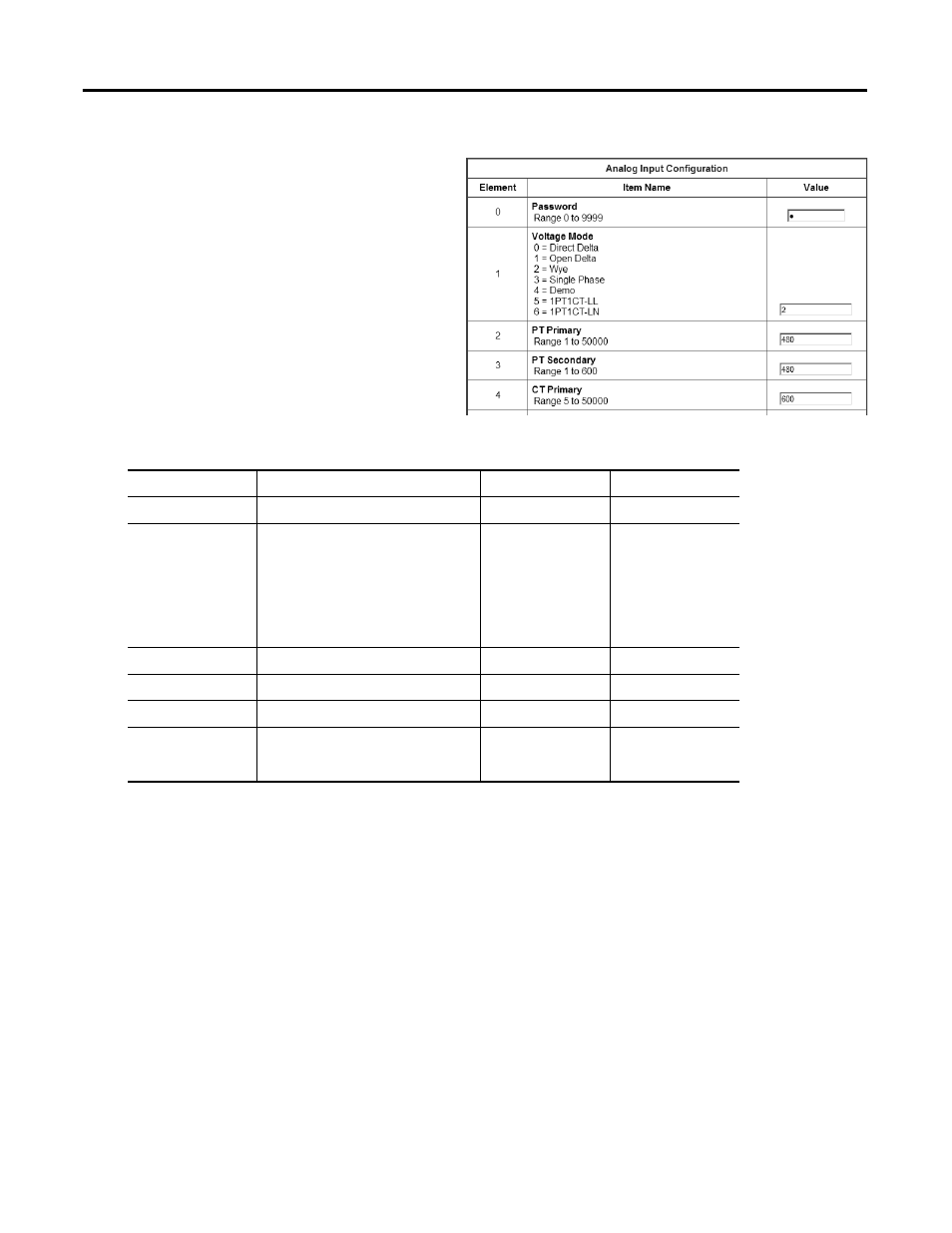

Analog Input Setup Parameters
Parameter
Range
Default
Example Settings
Password
0…9999
0
0
Voltage Mode
0…6
0 = Direct Delta
1 = Open Delta
2 = Wye
3 = Single Phase
4 = Demo, simulated results
5 = 1PT1CT-LL
6 = 1PT1CT-LN
2
2
PT Primary
1.0… 50,000
480
480
PT Secondary
5.00… 50,000
480
480
CT Primary
5.00… 50,000
5
600
System PF Setting
0 = Lead (-97…89)
1 = High (-85…98)
2 = Low (-52…-95)
2 = Low
2
