Rockwell Automation Energy Management Accelerator Toolkit Quick Start User Manual
Page 218
218
Rockwell Automation Publication IASIMP-QS016C-EN-P - October 2014
Chapter 11
FactoryTalk View ME Energy Faceplates
Add PowerMonitor 1000 Faceplate to ME Application
Follow these steps to add the PowerMonitor 1000 faceplate to a FactoryTalk View ME application.
1. Launch FactoryTalk View Studio for Machine Edition.
2. Create a new or open an existing application to which you want to add the faceplate.

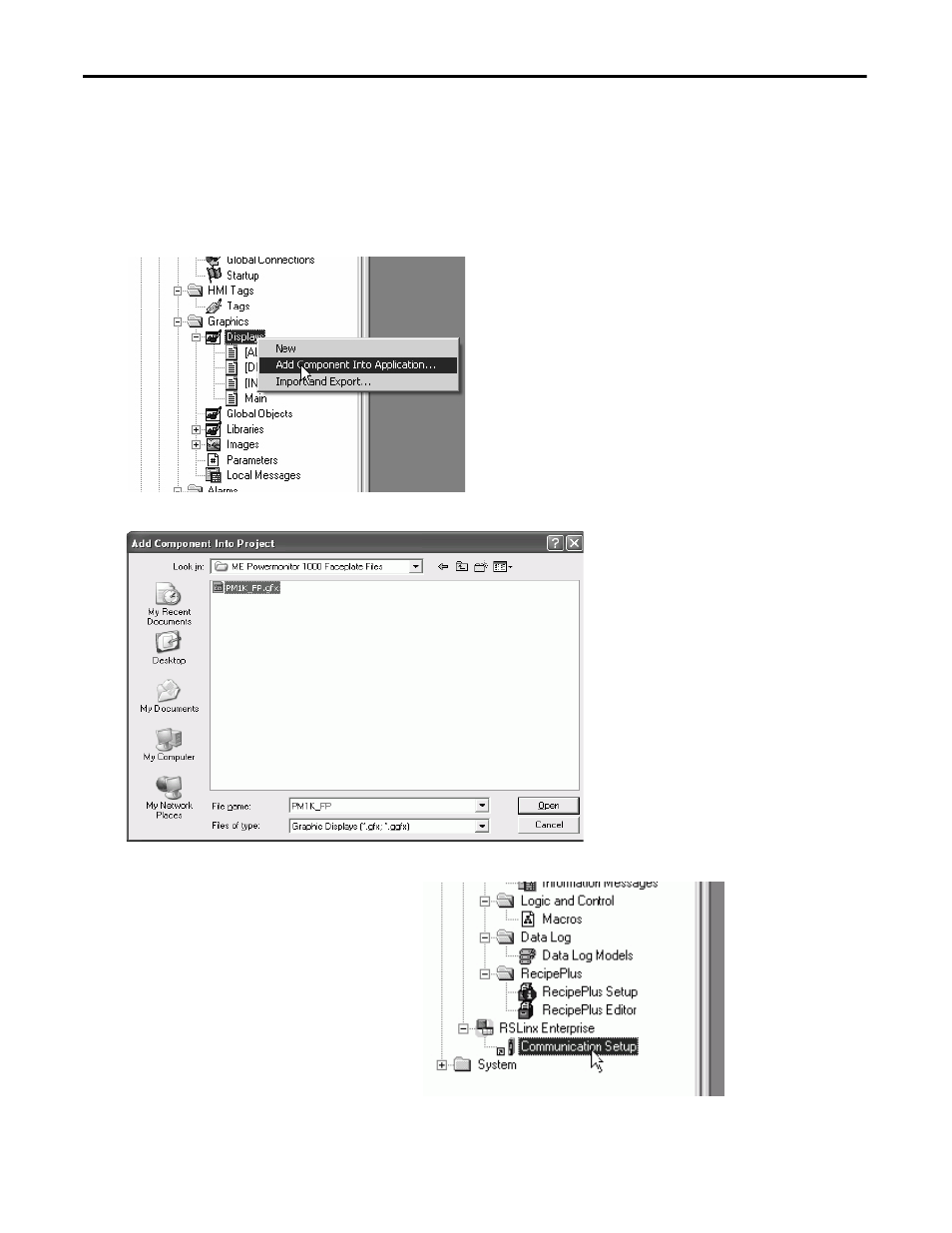

3.Right-click Displays and choose Add
Component Into Application.
4.Browse to the ME PowerMonitor 1000
Faceplate Files folder on the Energy
Management Toolkit CD image and
choose PM1K_FP.gfx.
5.Select the file and click Open.
The faceplate display is added to
application.
Configure Communication to PowerMonitor 1000
Follow these steps to configure RSLinx
Enterprise software to communicate with
the PowerMonitor 1000 meter.
1.Launch RSLinx Enterprise software.
2. Double-click Communication Setup
under RSLinx Enterprise in the
Explorer window.
