Alarm history faceplate logic – Rockwell Automation Energy Management Accelerator Toolkit Quick Start User Manual
Page 444
444
Rockwell Automation Publication IASIMP-QS016C-EN-P - October 2014
Appendix D Digital and Analog Energy Add-On Instructions
Alarm History Faceplate Logic
The following logic is included all digital and analog energy Add-On Instructions to initiate an alarm trigger and send the
corresponding device state to the alarm trigger value.

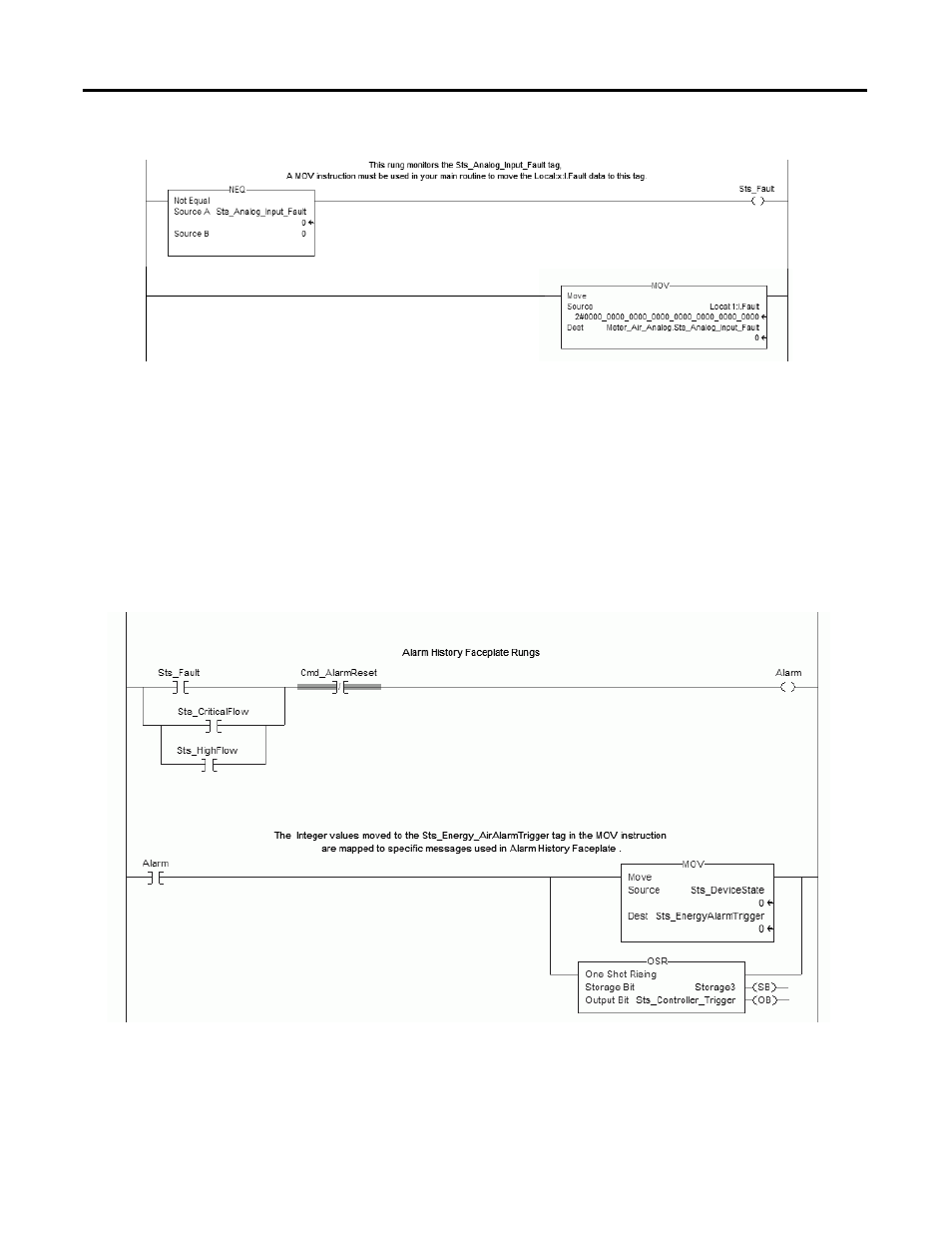

The following two rungs monitor the Fault, High Flow, and Critical Flow bits and send predefined integer values to the
Sts_EnergyAlarmTrigger tags configured in the Alarm History setup file. The Alarm History Faceplate uses these values to
trigger the appropriate messages to show on the Alarm Display.
