Rockwell Automation Publication IASIMP-QS016C-EN-P - October 2014 331
FactoryTalk View ME Energy Faceplates Chapter 11

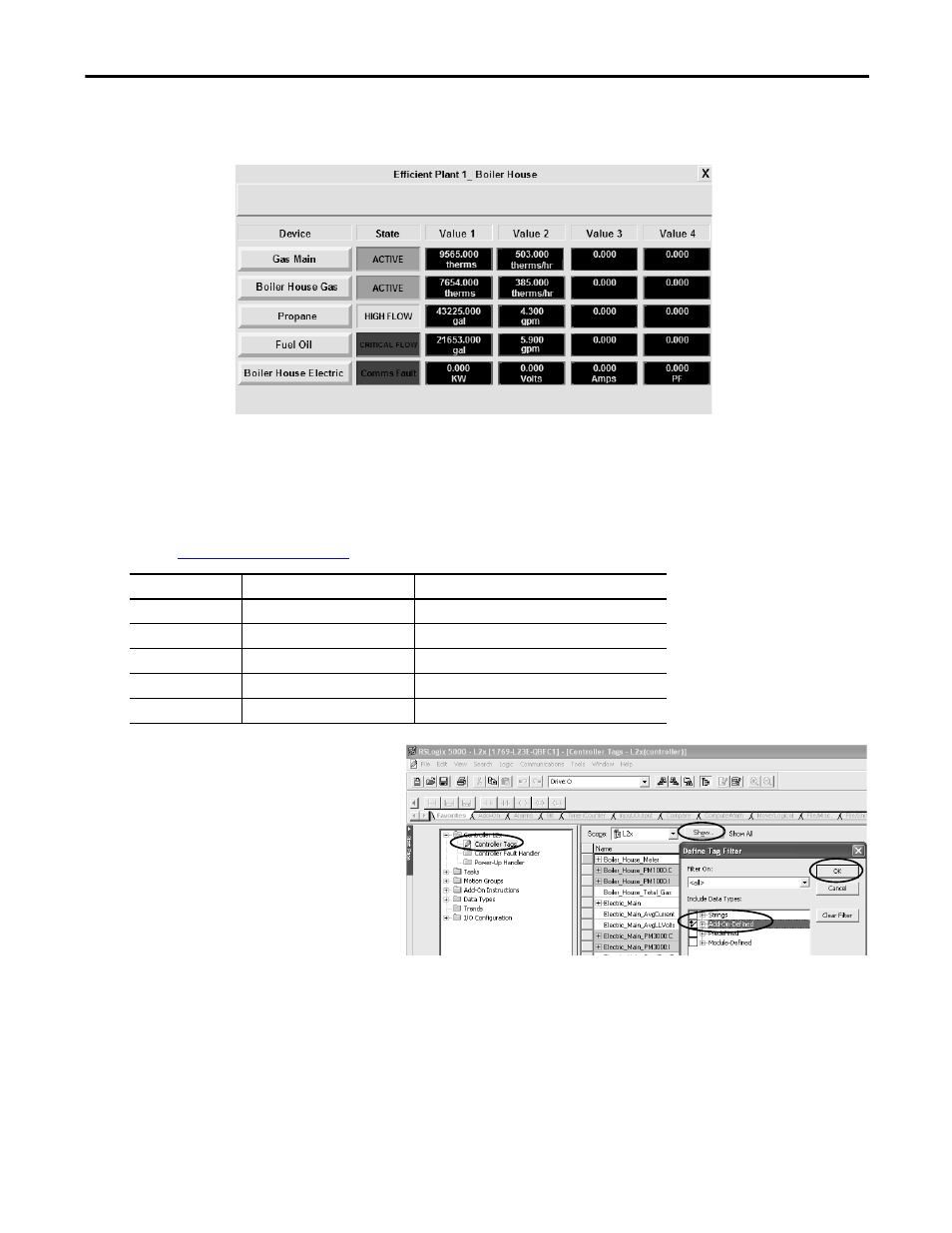

This example shows the Boiler House energy meters for the Efficient Industries Plant 1. The faceplate is configured for five
rows or five energy meters and provides overall status with up to four additional status values for each meter.
Follow these steps to modify the faceplate or energy Add-On Instruction to set the number of rows for the Equipment
Status Faceplate.
1. Determine how many of the nine available rows you will use on the Equipment Status Faceplate and which energy
meter you will assign to each row.
For the Efficient Industries Plant 1 example, you will use five rows to display data from five meters.
2. In your RSLogix 5000 project, set the
Inp_NumRowsVis tag of the energy
meter Add-On Instruction that is
assigned to row 1.
a. Select Controller Tags under the
Controller folder for your project then
click Show to open the Define Tag
Filter dialog box.
b. Check the Add-On-Defined filter and
click OK.
Row Number Energy Meter Faceplate or Energy Add-On Instruction
1 Gas Main Gas_Main
2 Boiler House Gas Boiler_House_Gas
3 Propane Propane
4 Fuel Oil Fuel_Oil
5 Boiler House (Electric) Boiler_House
