Rockwell Automation Energy Management Accelerator Toolkit Quick Start User Manual
Page 283
Rockwell Automation Publication IASIMP-QS016C-EN-P - October 2014
283
FactoryTalk View ME Energy Faceplates
Chapter 11

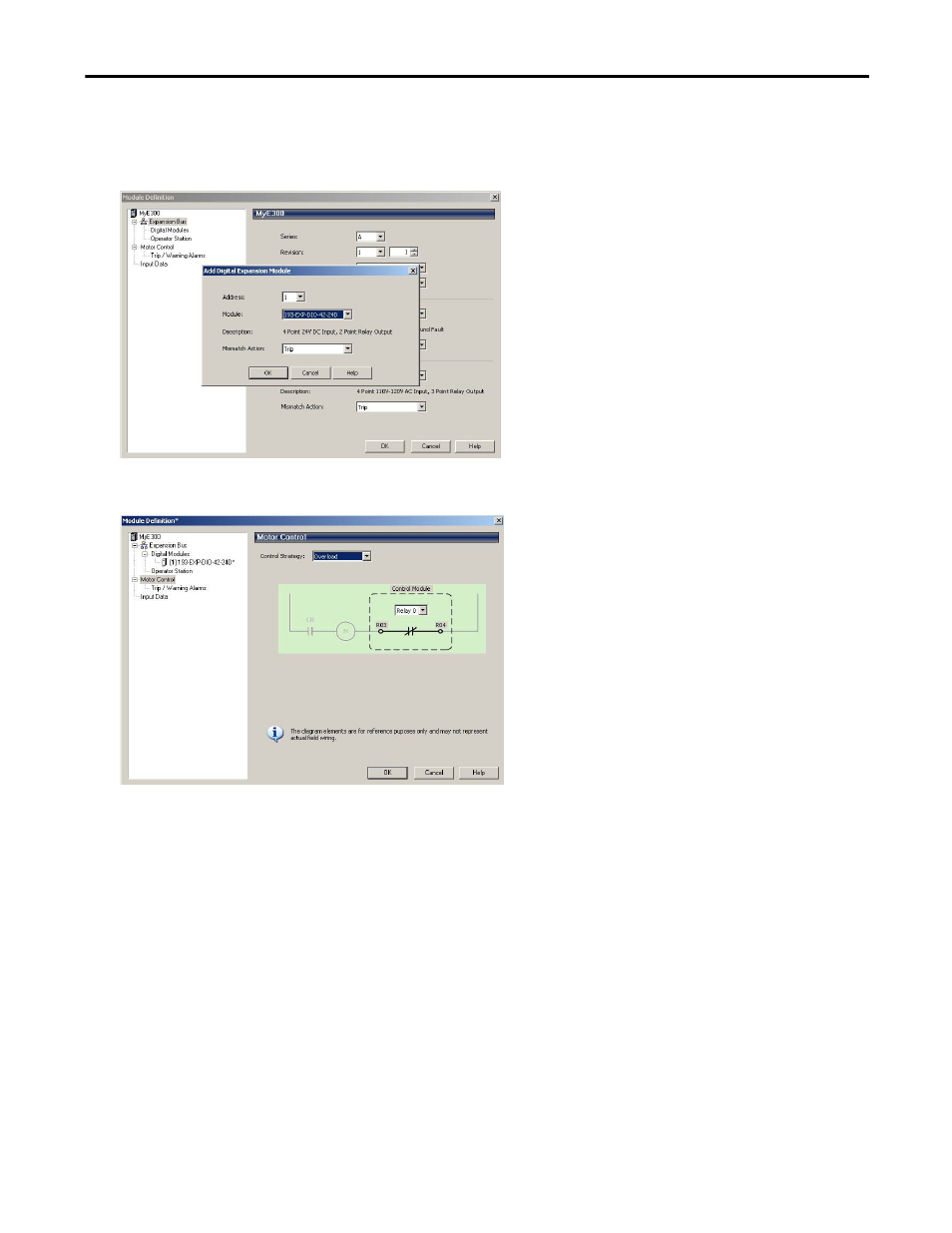

8. Right click on the Expansion Bus to add the specific Expansion Bus accessories for the E300 Electronic Overload
Relay system and select their specific Option Match action.
9. When finished, click OK.
10. Configure the Operating Mode and associated relay output assignments for the E300 Electronic Overload Relay.
The E300 module lets you configure up to 8 Datalinks.
11. Select the parameters for the additional data to be included with the input tags.
