Configure a Parameter File
1. From the explorer window in FactoryTalk View Studio, in the Parameters folder, right-click the
ME_E300_Parameter.par file, and choose Rename.
2. Rename the parameter file with the name of the corresponding device in your RSLogix5000 application.
For example, MyE300.
3. Double-click the parameter file to open it.
Parameter #1 represents the tag name for the specific faceplate tag within your RSLogix 5000 project. Each tag
contains a controller shortcut name in brackets. This should match the shortcut name created in your RSLinx
Enterprise communication setup.
4. Replace the shortcut name (CLX) and DriveName in parameters 1 to match the tags configured in your
RSLogix5000 project.

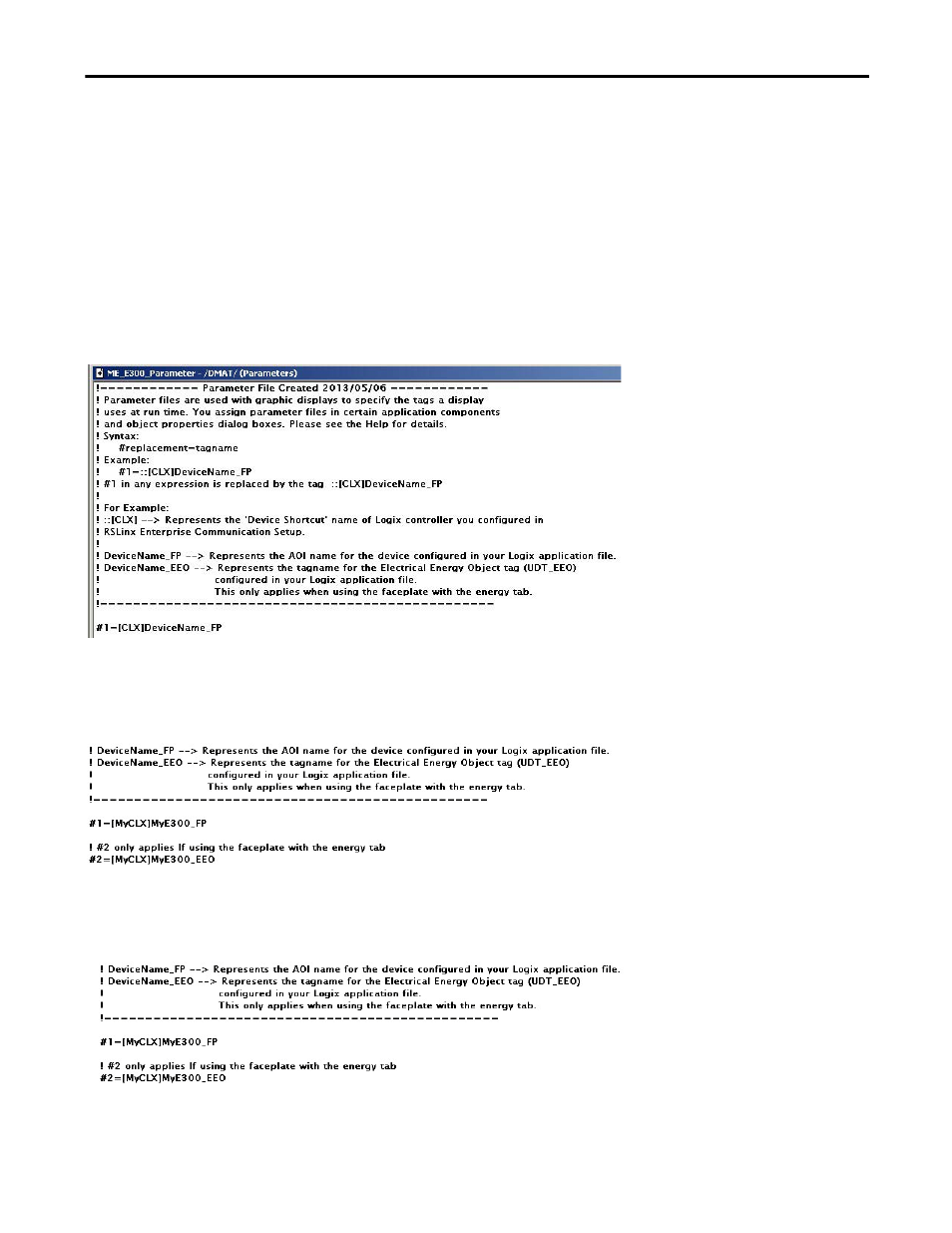

For the MyE300 example, the configuration looks like the following:
5. For parameter #2, change the shortcut name [CLX] to match your communication setup and DeviceName to match
the tag configured in your RSLogix5000 project.
For the MyE300 example, the configuration would look like the following:
6. Save your parameter file.
