Chapter 11 FactoryTalk View ME Energy Faceplates

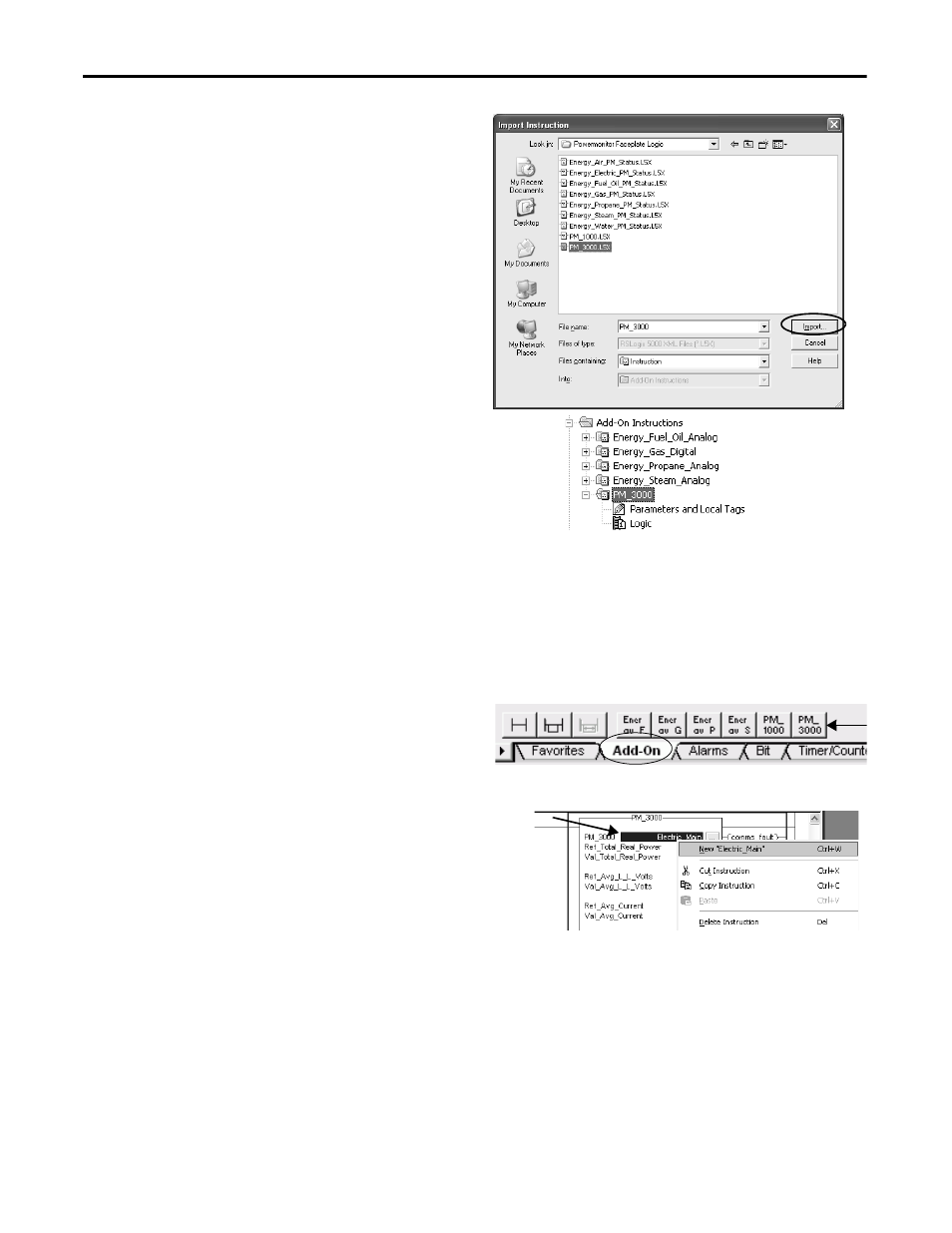

4. Select the required Add-On Instruction file then click
Import.
For this example, PM_3000.L5X is imported for the
Electric Main meter connected to the PowerMonitor
3000 device.
5. Click OK on the Import Configuration dialog box to
continue the import.
6. Verify the imported instruction is listed under the
Add-On Instructions folder.
For this example, you should see the PM_3000 Add-On
Instruction.
7. Repeat steps 1…7 to import each PowerMonitor and
PowerMonitor Status Input Add-On Instruction required for your
project.
Configure PowerMonitor 1000 and 3000 Faceplate AOIs
You will now configure the faceplate Add-On Instructions for each PowerMonitor 1000 or 3000 device in your system.
1. Open your program routine and create a new rung.
2. Click the Add-On tab, then click the desired
PowerMonitor Add-On Instruction to add to the rung.
For this example, the PM_3000 Add-On Instruction
was added.
3. Click in the PowerMonitor tag name field and enter a tag
name.
For this example, Electric_Main is entered.
4. Right-click the PowerMonitor tag name and choose the New
‘ tag_name’ just entered.
