FactoryTalk View ME Energy Faceplates Chapter 11

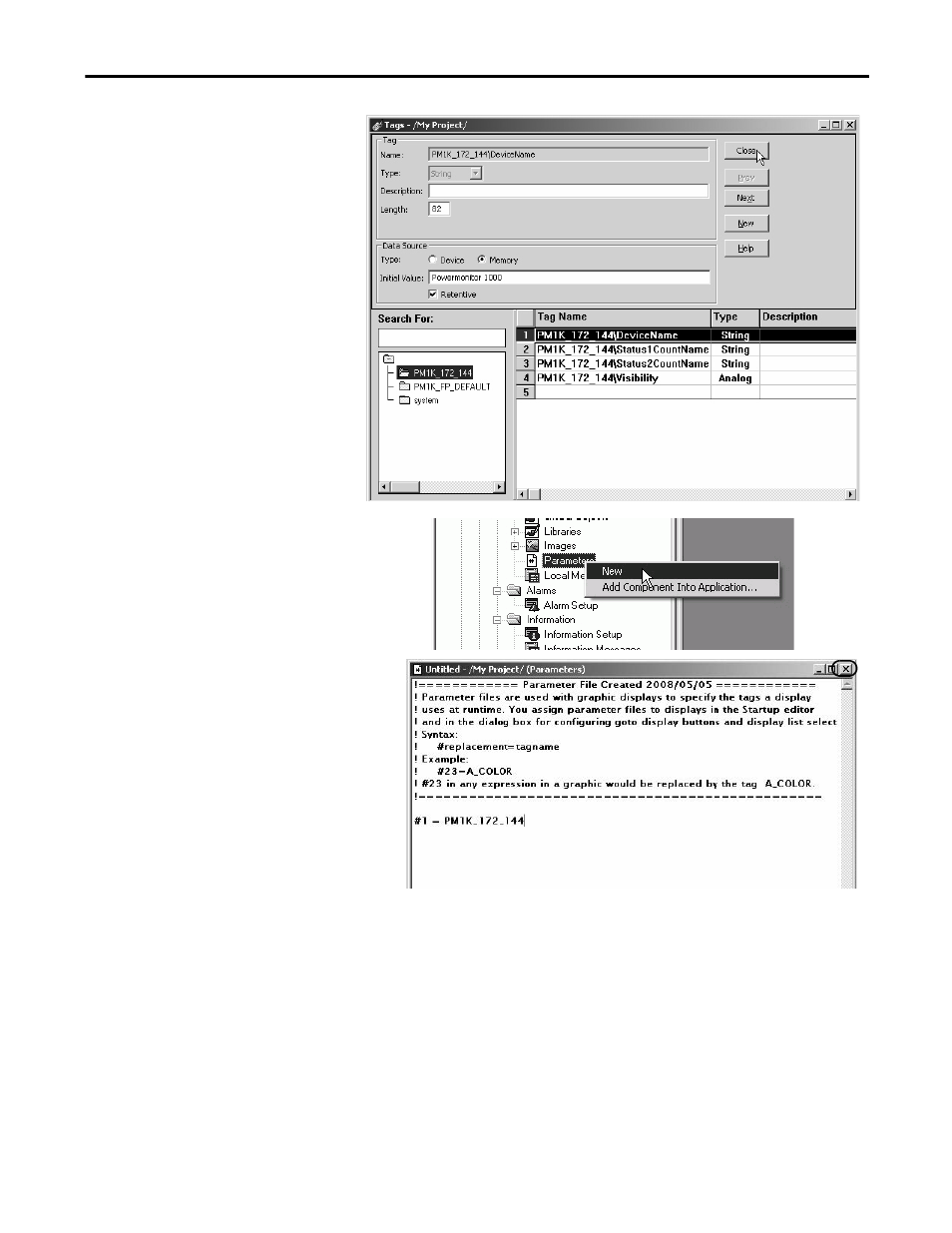

15. Verify that the tag folder was
duplicated.
16. Click Close to close the HMI Tag
database.
Create a Parameter File
You will now create a parameter file to
use when calling the faceplate display. A
parameter is used to replace the shortcut
name in the tags referenced on the
display. This allows the use of one display
for multiple PowerMonitor 1000 meters.
Follow these steps to create a parameter
file.
1. Right-click Parameters in the
Explorer window and choose New.
2. Set the parameter #1 =
shortcut> to the shortcut name
PM1K-172-144.
3. Click X to save and close the
Parameter file.
4. Rename the file PM1K-172-144.
Create a Display Navigation Button
Follow these steps to create a Goto Display
navigation button to launch the faceplate
display.
1. Create a new or open an existing display from which you want to launch the PowerMonitor 1000 faceplate.
