FactoryTalk View ME Energy Faceplates Chapter 11
Configure RSLogix5000 for the PowerMonitor 5000 Unit Faceplate
Follow these procedures to configure the faceplate.
Add the PowerMonitor 5000 Unit to your Ethernet Network

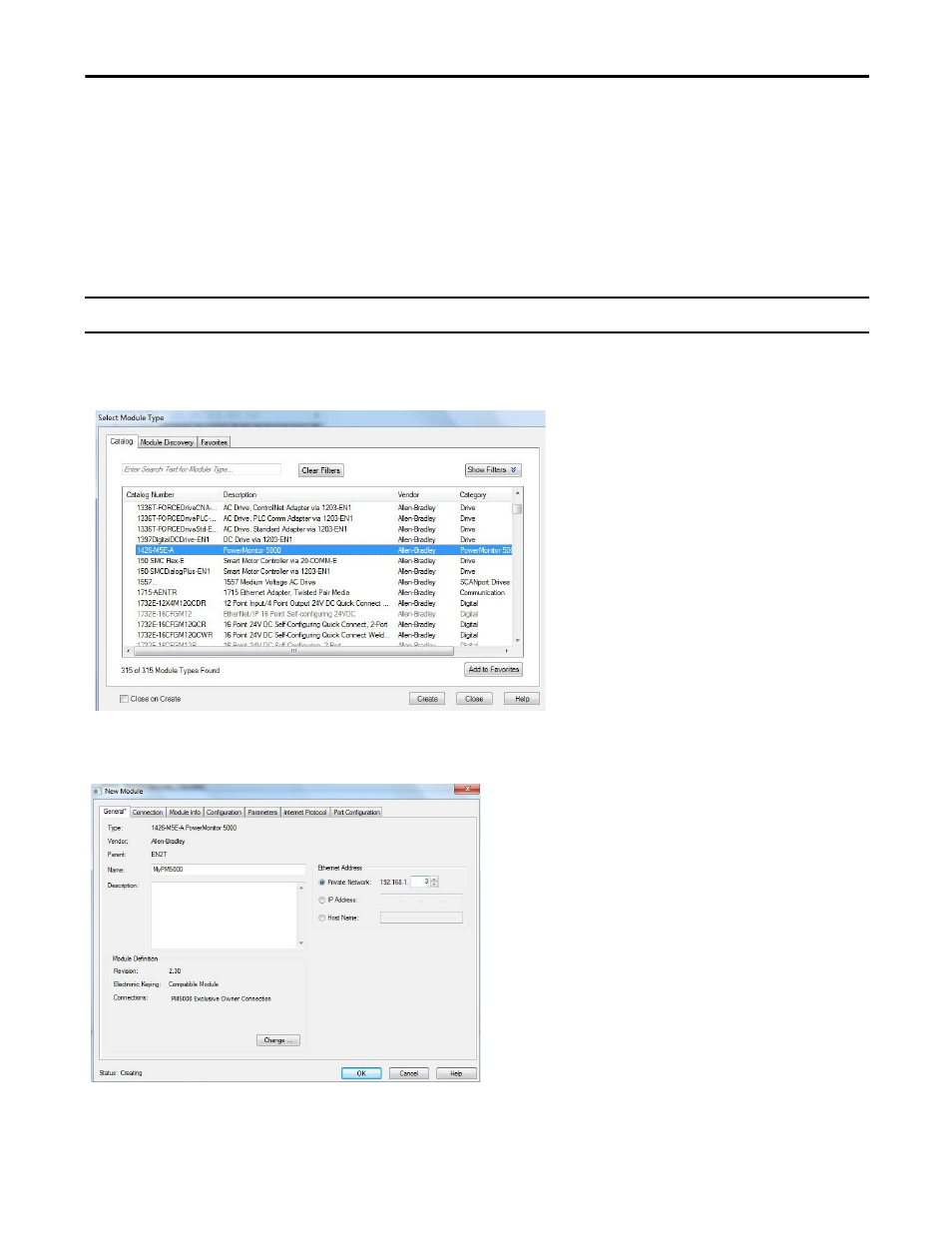

1. Create a new or open an existing RSLogix5000 file.
2. Under I/O Configuration, right-click the network communication module to be used for the intended drive.
3. Select ‘New Module’.
4. Select the PowerMonitor 5000 unit and click OK.
5. Enter a distinct module name and the IP Address of your power monitor.
(For example, we use ‘MyPM5000’ for the module name throughout this document.)
IMPORTANT This step assumes you have already added and configured an Ethernet module to your I/O tree.
