364 Rockwell Automation Publication IASIMP-QS016C-EN-P - October 2014
Chapter 12 Demand Control
Configure the I/O
Configure the I/O specific to your application, as identified in the control Hardware
Selection and Wiring section above.
The 1769-L23E packaged controller included embedded I/O for 16 DC inputs, 16
DC outputs, 4 differential or single-ended analog inputs, 2 single-ended analog
outputs, 6 HSC inputs, and 4 HSC outputs.

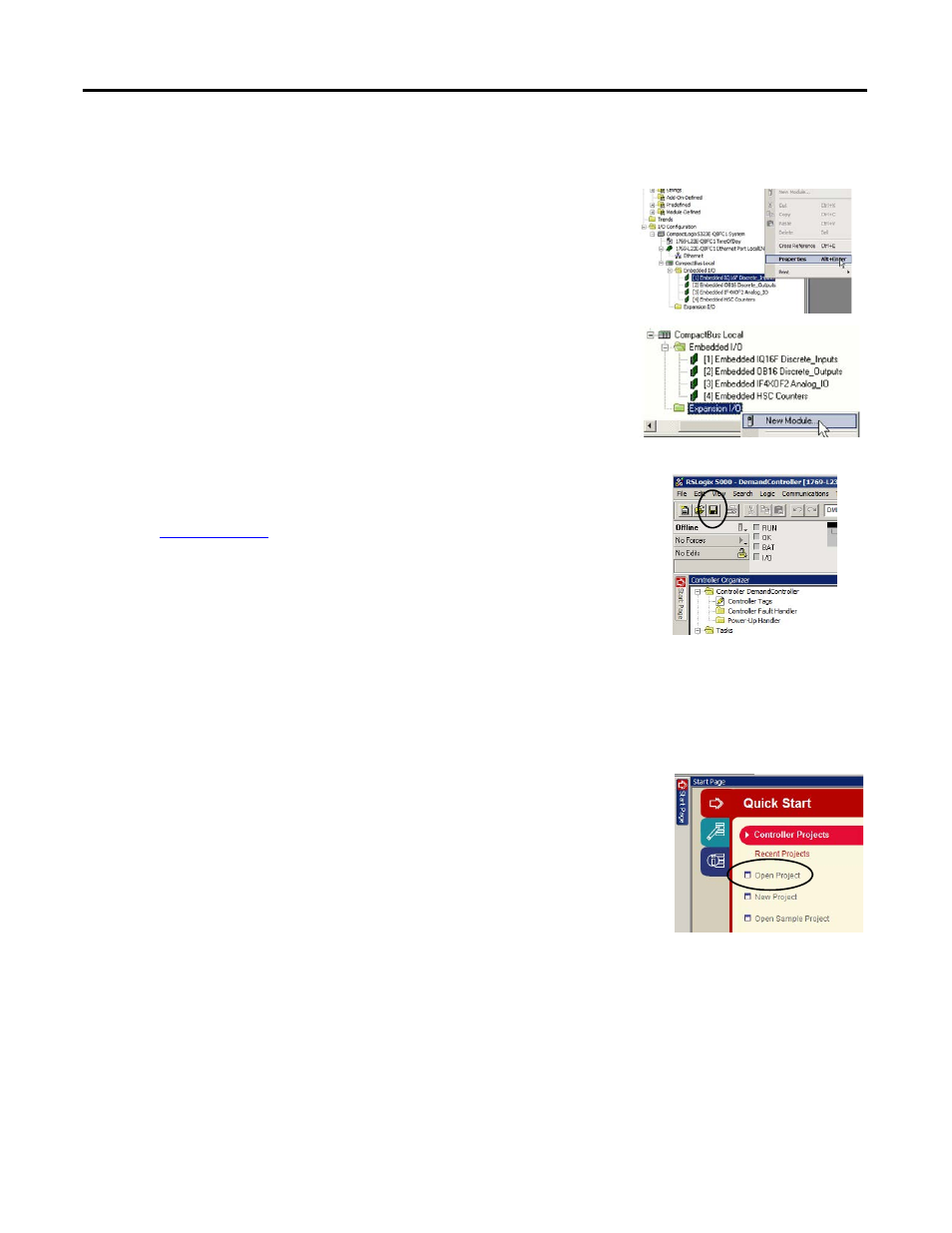

1. To configure the properties for any of the embedded I/O modules, right-click
on the module and select Properties.
If required, up to two 1769 CompactLogix modules may be added to the
1769-L23E-QBFC1B packaged controller.
2. To add an expansion module to the I/O configuration tree, right-click the
Expansion I/O folder and select New Module.
For detailed information about configuring your embedded I/O, see Chapter 3 of the
1769 CompactLogix Packaged Controllers Quick Start and User Manual,
publication
IASIMP-QS010 , Embedded I/O (page 191).
Save the Project File
Click to save your RSLogix 5000 application file.
Import and Configure Demand Control Program
Follow these steps to import and configure your Demand Control program.
1. If not already opened, open your RSLogix 5000 software project.
