Chapter 11 FactoryTalk View ME Energy Faceplates

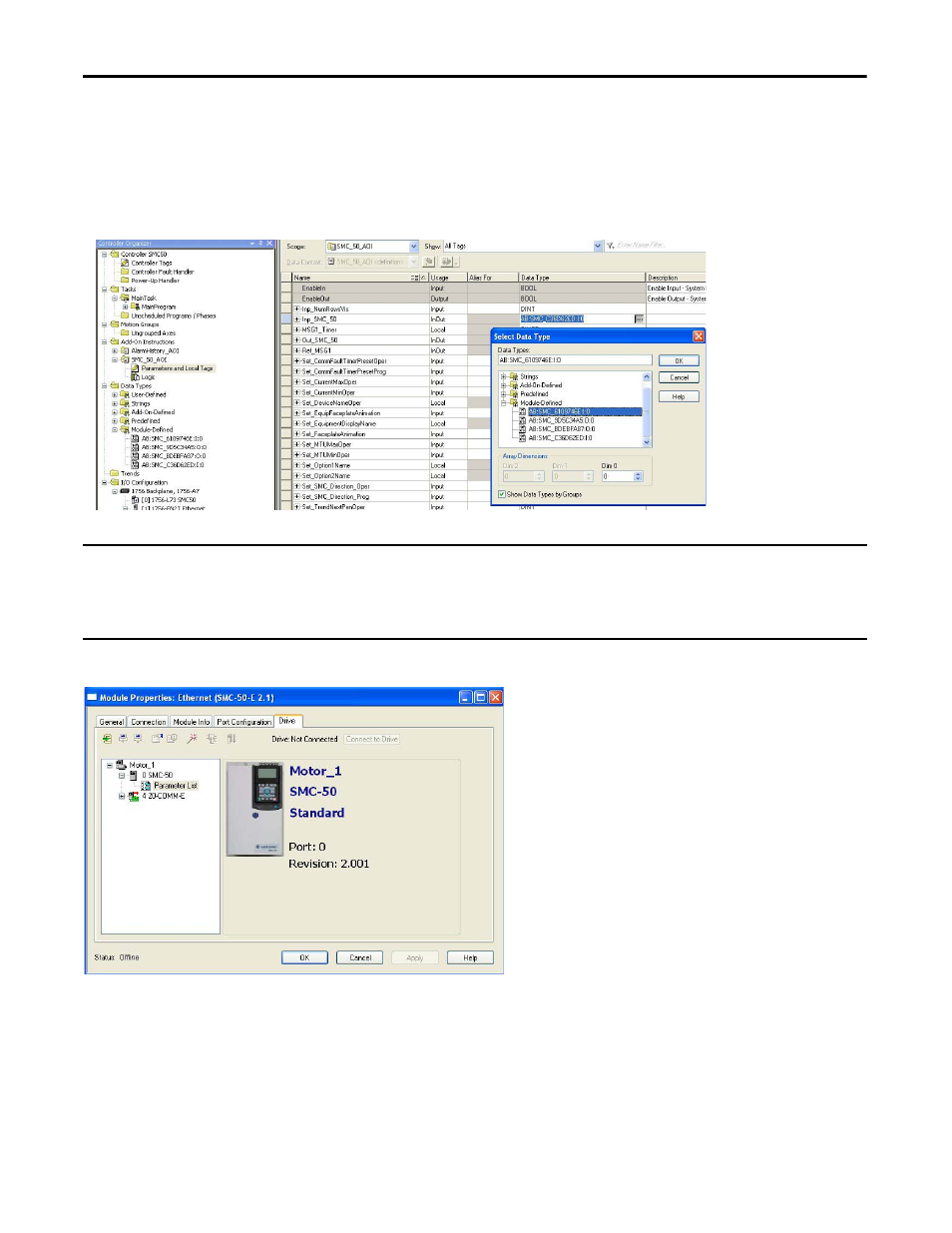

4. If you modify the datalink configuration, you must also re-configure tag data types in the SMC 50 AOI.
a. In your RSLogix5000 Controller Organizer, expand the Add-On Instructions folder.
b. Select the SMC_50 AOI and double-click on ‘Parameters and Local Tags’.
c. Click the Edit Tags tab and find the ‘Inp_SMC_50’ AOI tag
d. Change the Data Type to match the SMC_50 Module Input Data Type that applies to your application.
e. Repeat the previous steps for the "Out_SMC_50" AOI tag, using the Module Output Data Type.
5. Select the ‘Drive’ tab of the SMC_50 Module Properties.
6. Open the Parameter List and modify as your application requires.
IMPORTANT Any time you modify your SMC_50 Module definitions after you have created your SMC_50 AOI, you have to reassign your SMC_50
AOI Input and Output Tag Data Types. If multiple changes to your SMC_50 Module definitions were made and saved, there are
multiple Data Types listed for a particular DataLink configuration. Be careful to match the Data Type you select within the AOI to
the Data Type of the intended SMC_50 Module definition.
