Rockwell Automation Energy Management Accelerator Toolkit Quick Start User Manual
Page 233
Rockwell Automation Publication IASIMP-QS016C-EN-P - October 2014
233
FactoryTalk View ME Energy Faceplates
Chapter 11

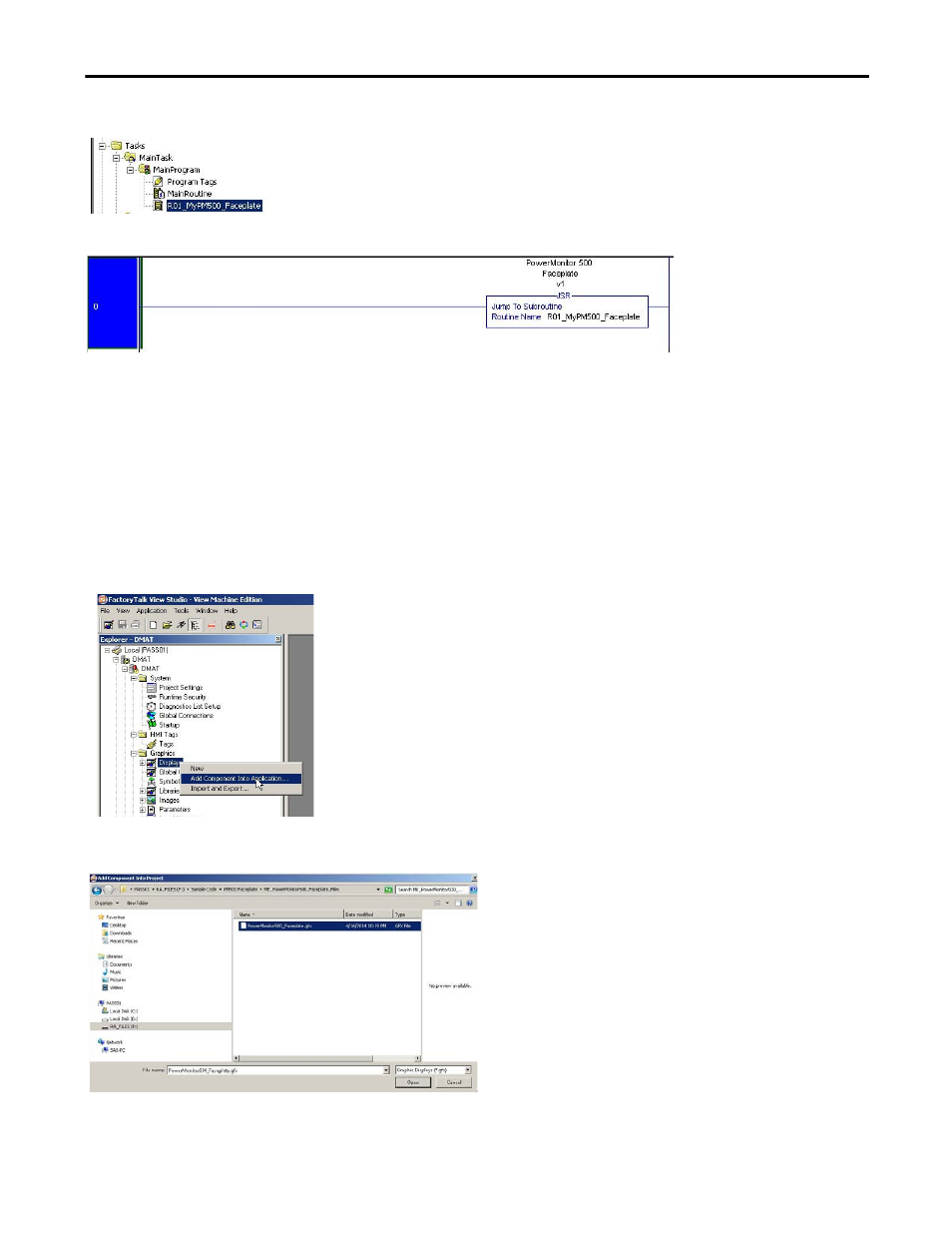

The new Routine appears in the Controller Organizer in the selected program.
8. Add a JSR to your main routine, or other desired location, to execute the new routine.
Configure FactoryTalk View ME for the PowerMonitor 500 Unit Faceplate
Follow these procedures to configure the faceplate.
Add PowerMonitor 500 Unit Faceplate to ME Application
1. Launch FactoryTalk View Studio software and create or open an existing application file.
2. In the Graphics folder, right-click on Displays and choose ‘Add Component Into Application’.
3. Navigate to the ME PowerMonitor 500 Faceplate Files folder, select the PowerMonitor500_Faceplate, and click
Open.
