Digital and Analog Energy Add-On Instructions Appendix D

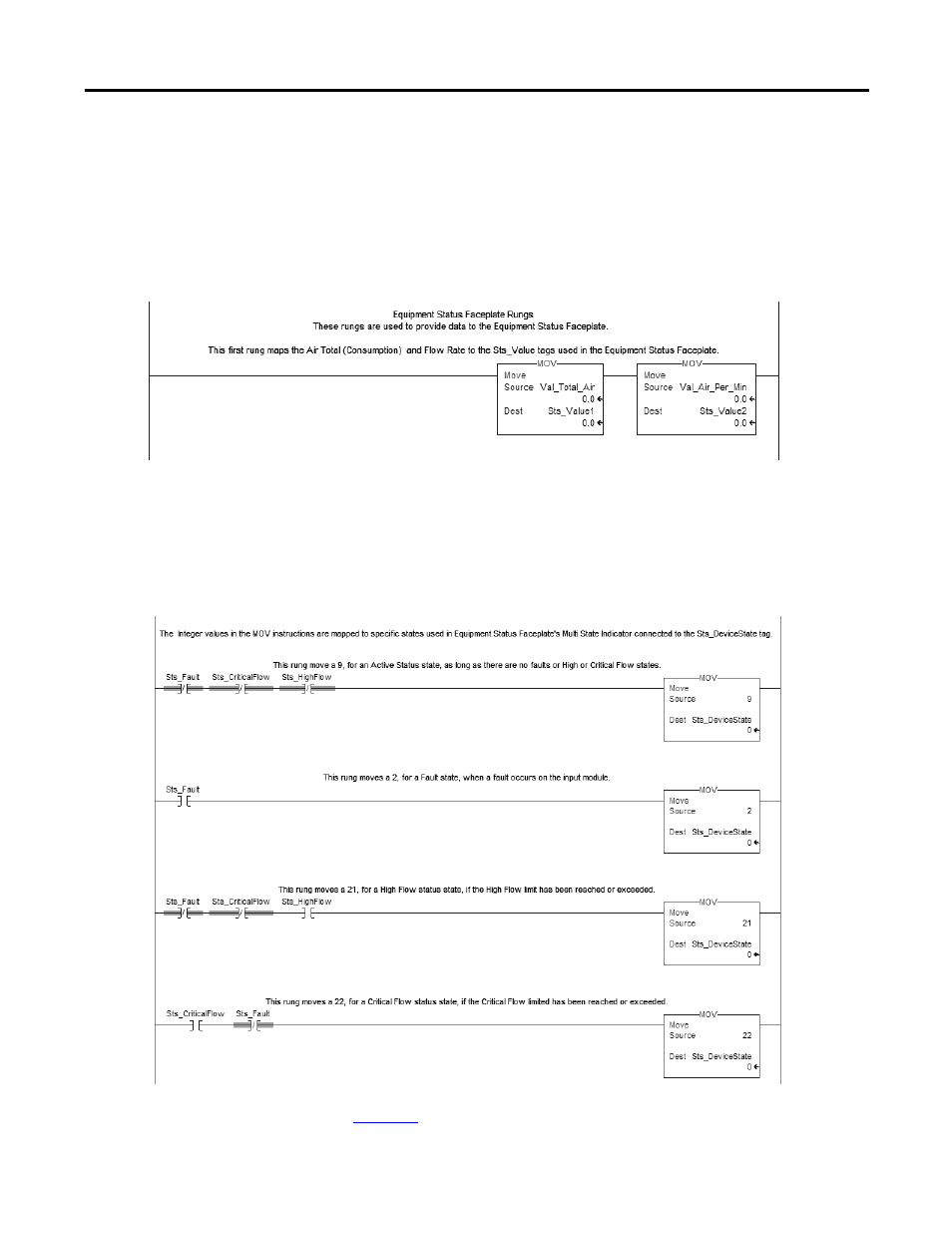

Equipment Status Faceplate Logic
The following logic is included all digital and analog energy Add-On Instructions to provide the Equipment Status
Faceplate with energy consumption, flow, and device states.
The following rung moves the Val_Total_ xxx and Val_xxx_Per_Min or Val_xxx_Per_Hr values to the predefined tags in
the Equipment Status Faceplate, Sts_Value1 and Sts_Value2.
The next four rungs monitor and send device status information to the Equipment Status Faceplate including Active, Fault,
High Flow, and Critical Flow.
The Sts_DeviceState tag is a predefined tag mapped to a multistate indicator in the Equipment Status Faceplate. Each
device status state is triggered by a unique integer value preconfigured in the multistate indicator.
The additional input fault logic added on
page 332
is used to move the Local:x:I.Fault data to the Sts_ xxx_Input_Fault
tag of the Add-On Instruction.
