Rockwell Automation Publication IASIMP-QS016C-EN-P - October 2014

299

FactoryTalk View ME Energy Faceplates

Chapter 11

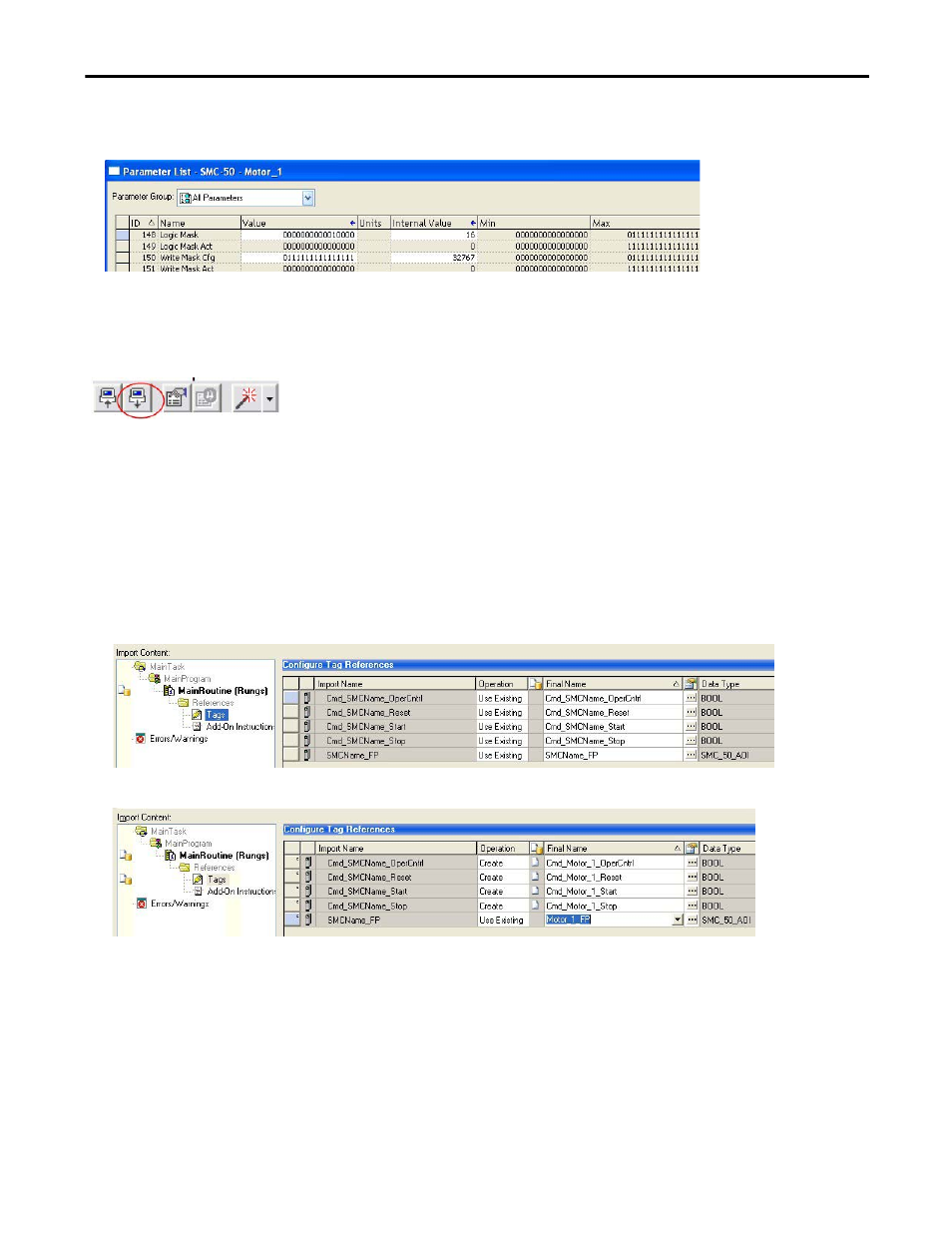

7. This faceplate requires bit 4 of parameter 148 to be set to 1 to enable start and maneuver commands via the internal

comm module.

8. Close the Parameter List window.

9. Download your parameters to the SMC-50 controller by choosing the download icon from the toolbar.

Follow prompts to complete the download process.

Import Program Control Rungs

Example logic is provided for configuring program commands. To import this configuration, follow these steps.

1. Choose a routine for importing the new rungs.

2. On a new rung, right click and select ‘Import Rungs’

3. From the ME SMC 50 Faceplate Files folder, select ‘SMC_50_Control_Rungs.L5X’ and click Import.

4. Click Tags in the Import Content organizer.

5. Replace SMCName in the Final Name field with the name of your SMC50 device and click OK.
