Alarm view – Rockwell Automation Energy Management Accelerator Toolkit Quick Start User Manual
Page 385
Rockwell Automation Publication IASIMP-QS016C-EN-P - October 2014
385
Demand Control Chapter 12

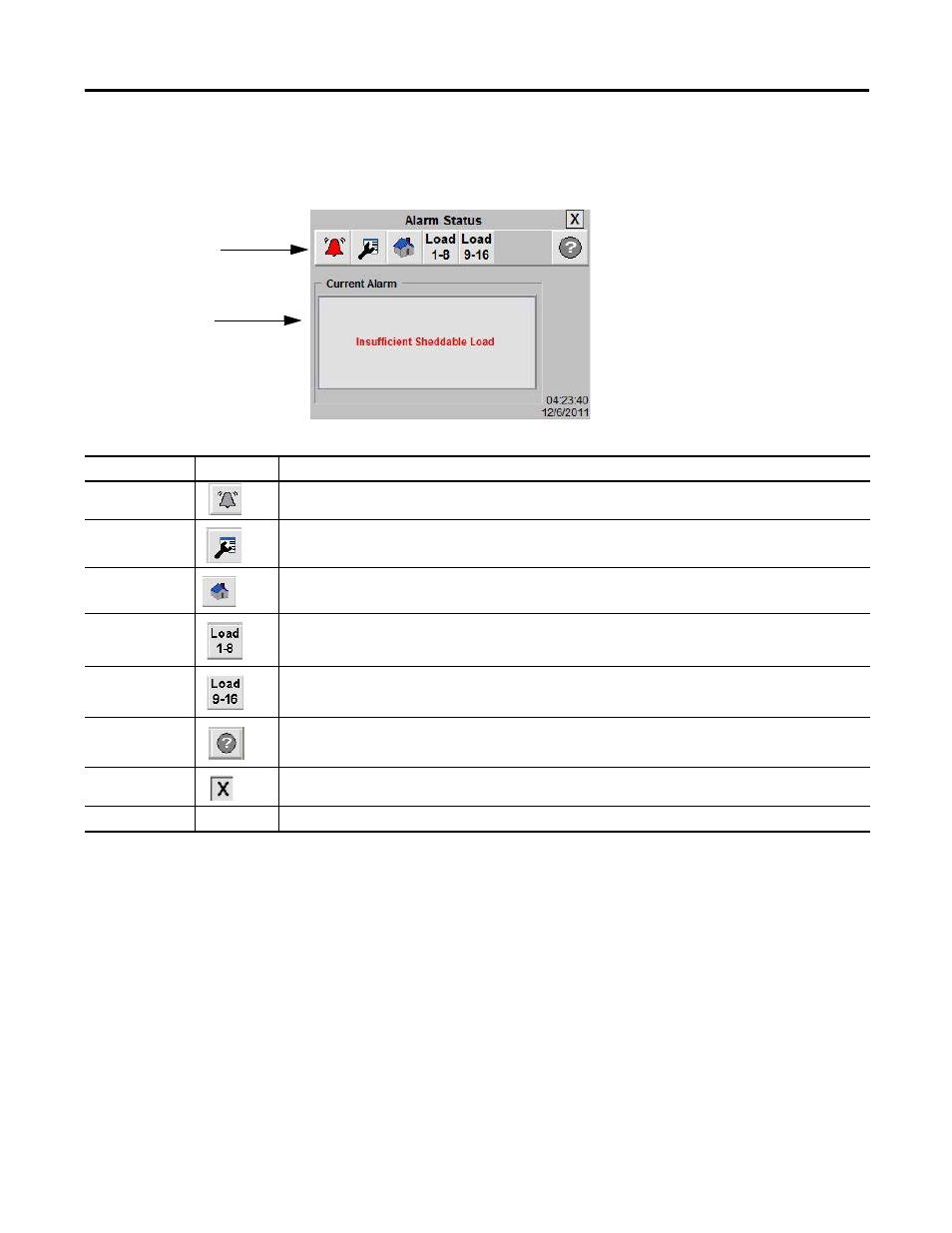

Alarm View
Click on the alarm bell button to display the Alarm Status view.
Faceplate Toolbar
Current Alarm
Indication
Button
Icons
Description
Alarm
The alarm button indicates an alarm condition and activates alarm diagnostic views. A grey bell indicates normal
status, with no alarms. A red flashing bell indicates an alarm condition.
Configuration
The Configuration button displays the main demand control configuration screen (upon entering the correct
password).
Home
The Home button lets you view the status of all 16 loads.
Load 1…8
The Load 1-8 button lets you view the load status, rated kW, priority and descriptive name for loads 1…8.
Load 9…16
The Load 9-16 button lets you view the load status, rated kW, priority and descriptive name for loads 9…16.
Help
Press the Help button to access a more detailed alarm description and recommended actions.
Close
Click the Close button to close the faceplate.
Current Alarm
Indicates the highest priority active alarm in the demand controller.
