Rockwell Automation Energy Management Accelerator Toolkit Quick Start User Manual
Page 254
254
Rockwell Automation Publication IASIMP-QS016C-EN-P - October 2014
Chapter 11
FactoryTalk View ME Energy Faceplates

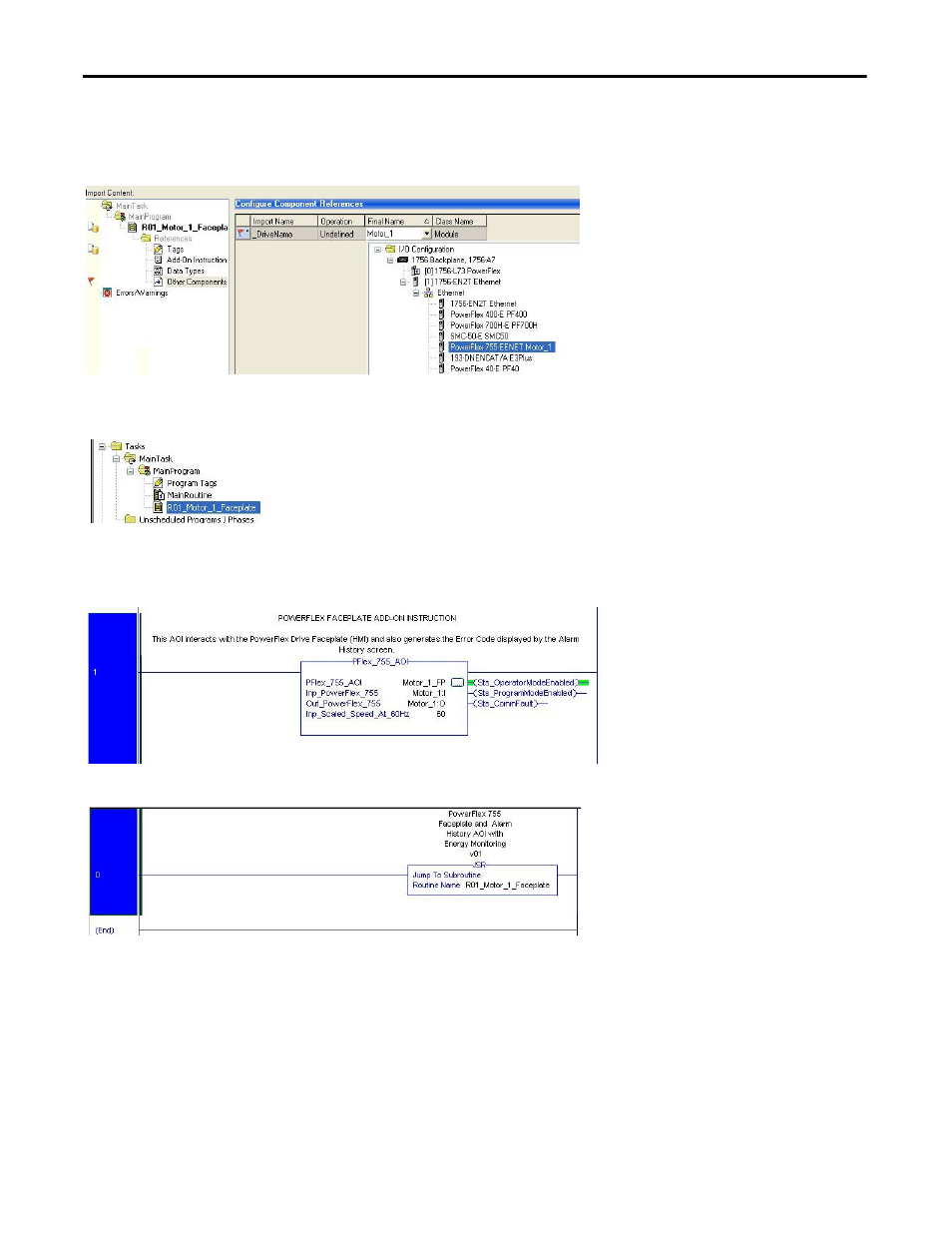

6. In the Import Content organizer, select Other Components.
The communication path can be set for all messages by selecting the device from the I/O configuration drop-down
in the Component References.
7. Click OK.
The new Routine appears in the Controller Organizer within the selected program.
8. Open the routine and enter the value for the Inp_Scaled_Speed_At_xxxx input on the AOI on rung 1.
The AOI scales the drive input and output speed values based on the value entered.
9. Add a JSR to your main routine, or other desired location, to execute the new routine.
