Chapter 13 Time of Day Control

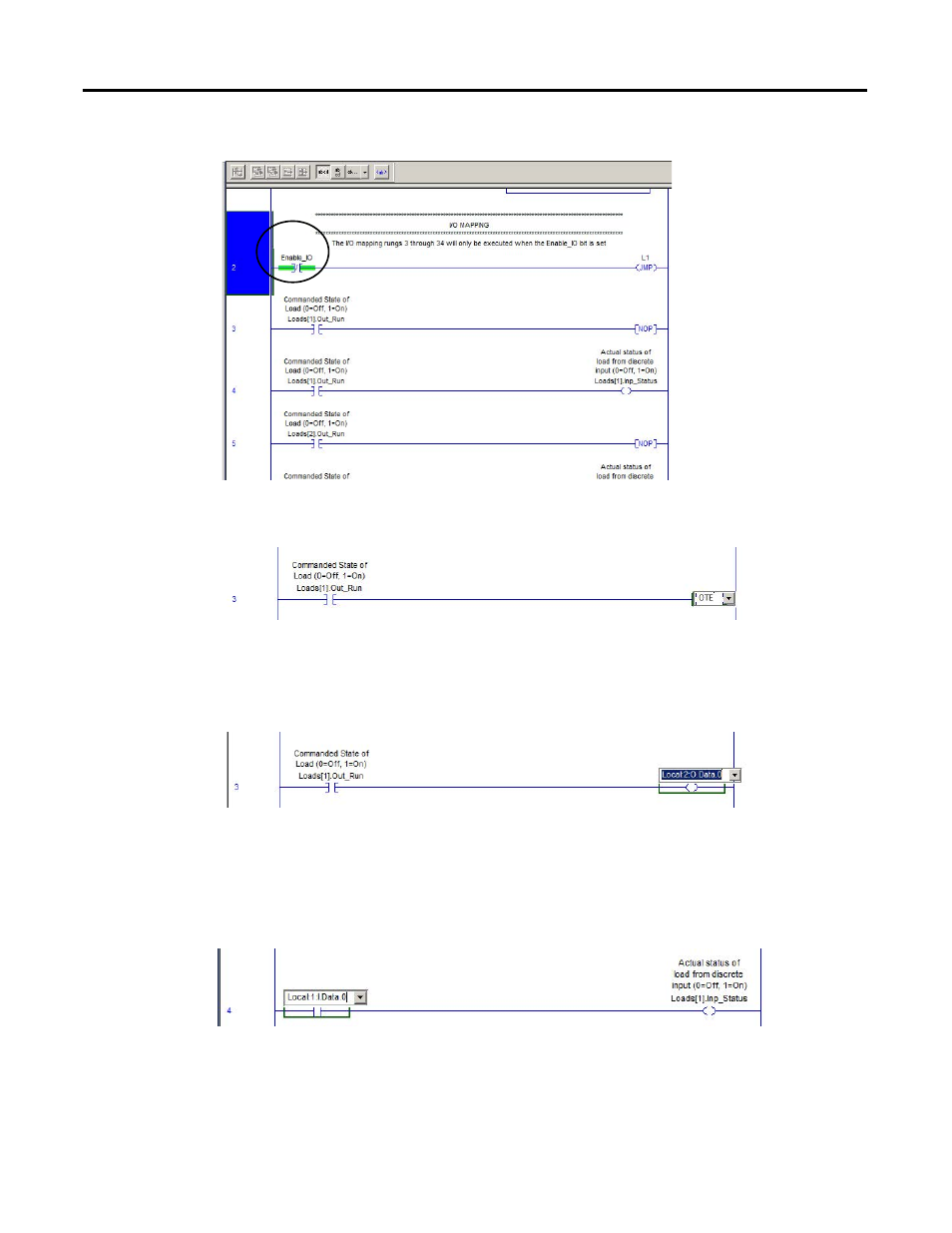

The I/O mapping rungs will not be executed unless the Enable_IO bit in rung 2 is set.
For each load, there are two rungs to configure. The first is for mapping the command output.
2. Double-click the NOP instruction on rung 3 and type OTE.
3. Click Enter.
4. Double click on the question mark above the OTE and type the name of the tag that should be mapped to the output
command for Load Number 1.
In the Efficient Industries example, the output for Load 1 is mapped to Local:2:O.Data.0.
5. Click Enter.
In rung 4, the input status has been configured to follow the commanded state. If the input status is not available for
the load, this rung can be left alone. In the Efficient Industries example, the input status for Load number 1 is
available and is wired to Local:1:I.Data.0.
6. Double click the tag above the XIC instruction and enter the I/O tag for the input status.
7. Click Enter.
8. Use the same procedure to configure the I/O mapping for the remaining loads in rungs 5…34.
If you are not utilizing all 16 loads in your application, you can delete the unused I/O mapping rungs, or leave them as is.
