Rockwell Automation Publication IASIMP-QS016C-EN-P - October 2014 57
Energy Data Collector Configuration Chapter 3
Configure a PowerMonitor 3000 Device
This section shows you how to configure PowerMonitor 3000 device settings by using the PowerMonitor 3000 display
module. Certain settings are needed for the power monitor to meter accurately, communicate correctly, and work with
FactoryTalk EnergyMetrix software properly. These settings include network configuration, wiring, PT and CT ratios,
nominal system voltage, demand settings, and the date/time. Your application may require additional configuration.

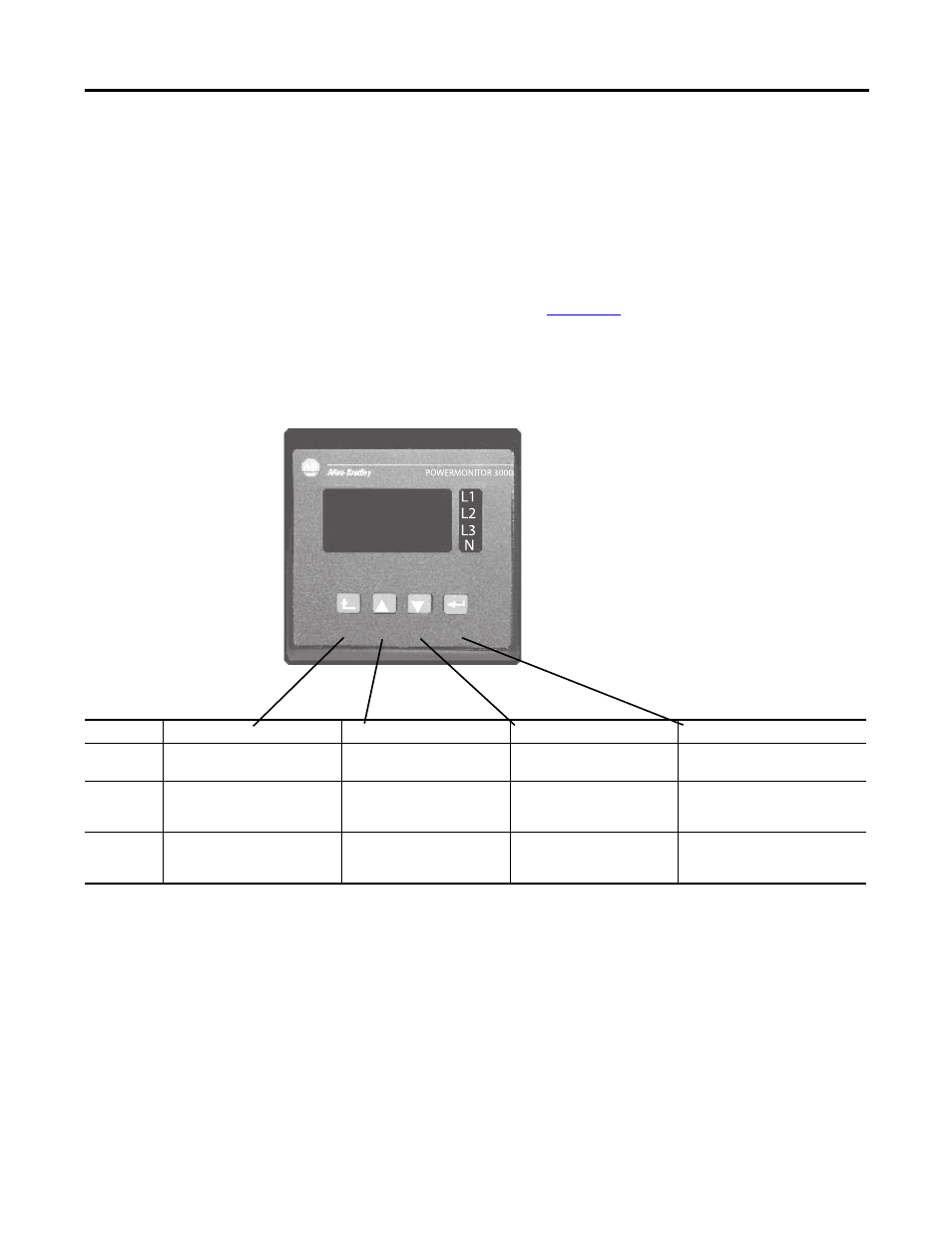

The PowerMonitor 3000 display module has four keys on its front bezel that are used to navigate menus and select
parameters within the module. The phase indicators, L1, L2, L3, N, show which phase, or phases, are being displayed. The
phase indicators also indicate Program mode by flashing.
TIP Network configuration is provided for the PowerMonitor 3000 on Ethernet device. For other communication options,
refer to the PowerMonitor 3000 Unit User Manual, publication
1408-UM001
Navigation to Menu Items
Mode Escape Key Up Arrow Key Down Arrow Key Enter Key
Display Returns to parent menu. Steps back to the previous
parameter/menu in the list.
Steps forward to the next
parameter/menu in the list.
Steps into a submenu or sets as
default screen.
Program Returns to parent menu. Steps back to the previous
parameter/menu in the list.
Steps forward to the next
parameter/menu in the list.
Steps into a submenu, selects the
parameter to be modified, or
changes to Edit mode.
Edit Cancels changes to a parameter,
restores the existing value, and
returns to Program mode.
Increments the parameter/
menu value.
Decrements the parameter
value.
Saves the parameter change to
the master module and returns to
Program mode.
