Rockwell Automation Energy Management Accelerator Toolkit Quick Start User Manual
Page 334
334
Rockwell Automation Publication IASIMP-QS016C-EN-P - October 2014
Chapter 11
FactoryTalk View ME Energy Faceplates

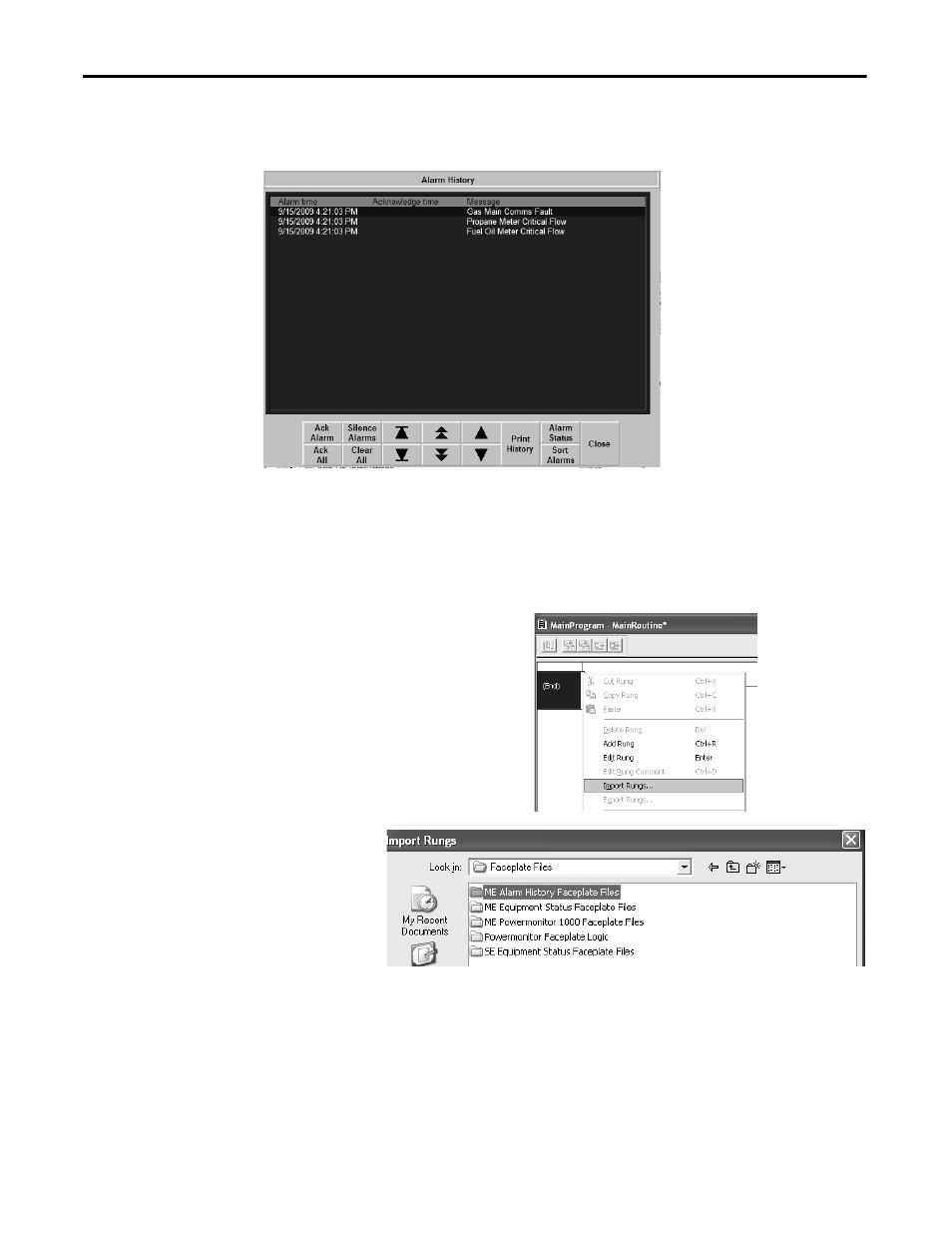

In this example, the Alarm History Faceplate shows alarms from three energy meters.
Follow these steps to add required logic for each energy meter you want to include in the Alarm History Faceplate.
1. Open your RSLogix 5000 program routine and select the end
rung or an existing rung that you want the alarm logic to
follow.
2. Right-click the rung and choose Import Rungs.
3. Browse to the Faceplate Files folder on
your Energy Management Toolkit CD
image and select the ME Alarm
History Faceplate Files folder.
