Chapter 7 FactoryTalk EnergyMetrix Software Meter and Tag Setup

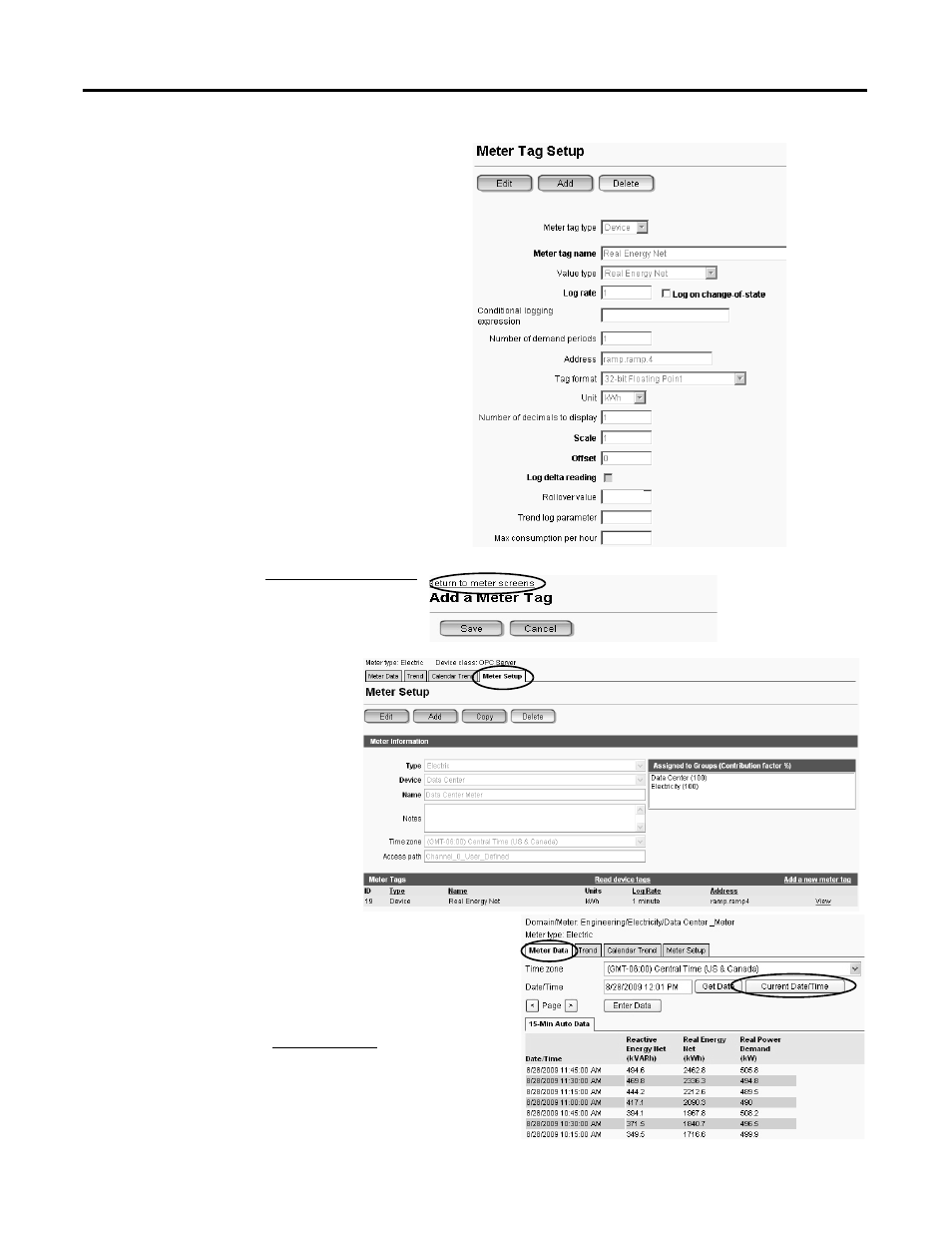

4. Verify the Meter tag type is Device.
5. Enter Real Energy Net as the name.
6. Choose Real Energy Net as the value type.
7. Set the Log rate to 1 minute.
8. Enter the OPC server data address.
For this example, enter ramp.ramp.4
9. Set the Tag format to 32-bit Floating Point.
10. Check the Log delta reading checkbox. This is an
example of a tag whose value represents the
consumption during the logging interval.
Leave the Rollover value blank.
11. Click Save.
12. When done, click the Return to meter screens
link or the meter tag.
The tag just entered appears on the
Meter Setup tab.
For this example, you should see
this tag.
13. Click the Meter Data tab to verify
that the meter data is being logged.
The data will not appear until the next logging interval has
occurred.
Another way to check the data is to return to the Meter
Setup tab and click the Read device tags link just above the
list of meter tags.
You can click Current Date/Time to refresh the data.
