Rockwell Automation Energy Management Accelerator Toolkit Quick Start User Manual
Page 296
296
Rockwell Automation Publication IASIMP-QS016C-EN-P - October 2014
Chapter 11
FactoryTalk View ME Energy Faceplates

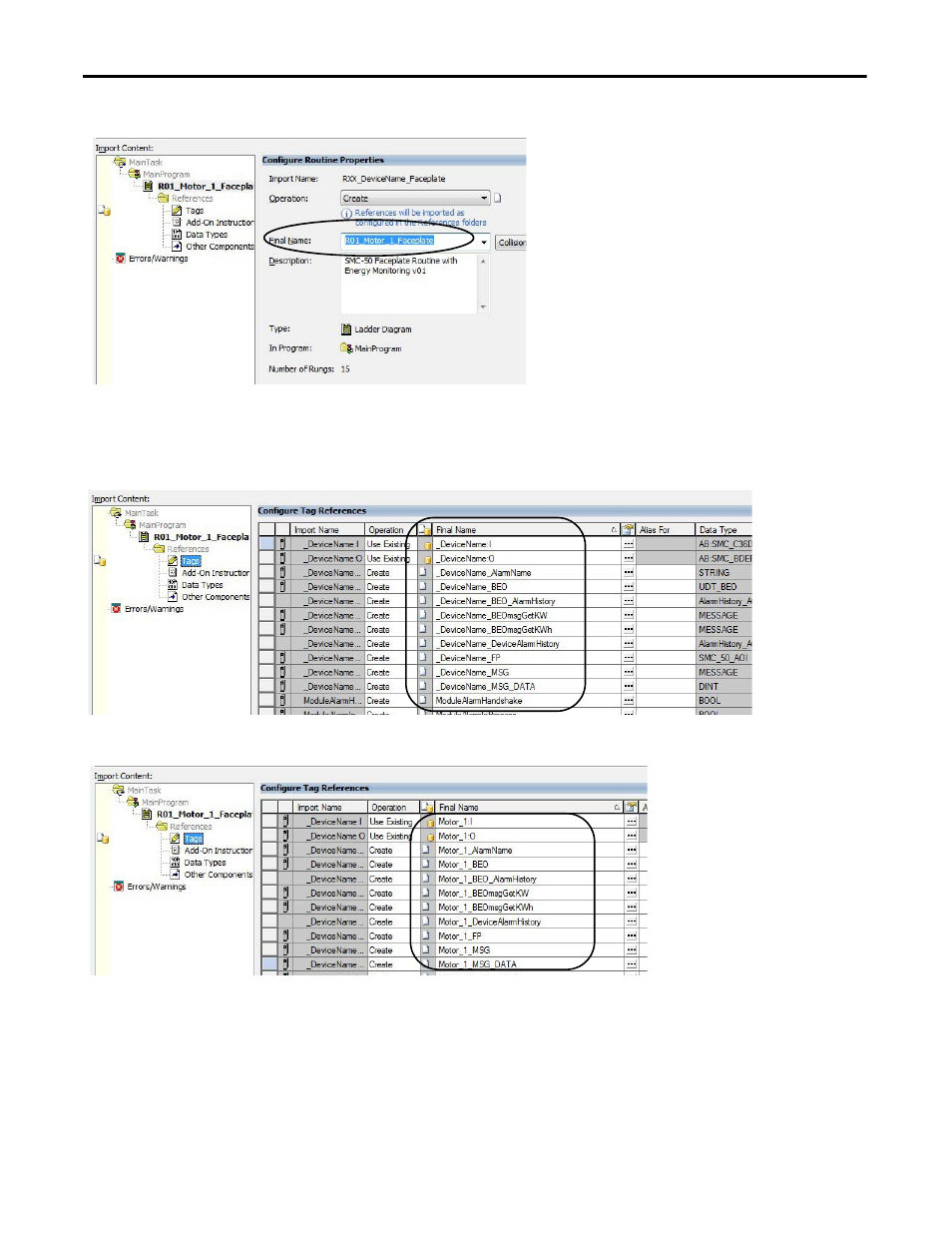

3. Enter the name for your routine in the Final Name field.
4. In the Import Content organizer, select tags.
The Configure Tag References dialog box opens.
5. Replace _DeviceName in the Final Name with the name of your device.
For the ‘Motor_1’ example, the Final Names are renamed to the following:
