FactoryTalk View ME Energy Faceplates
Chapter 11

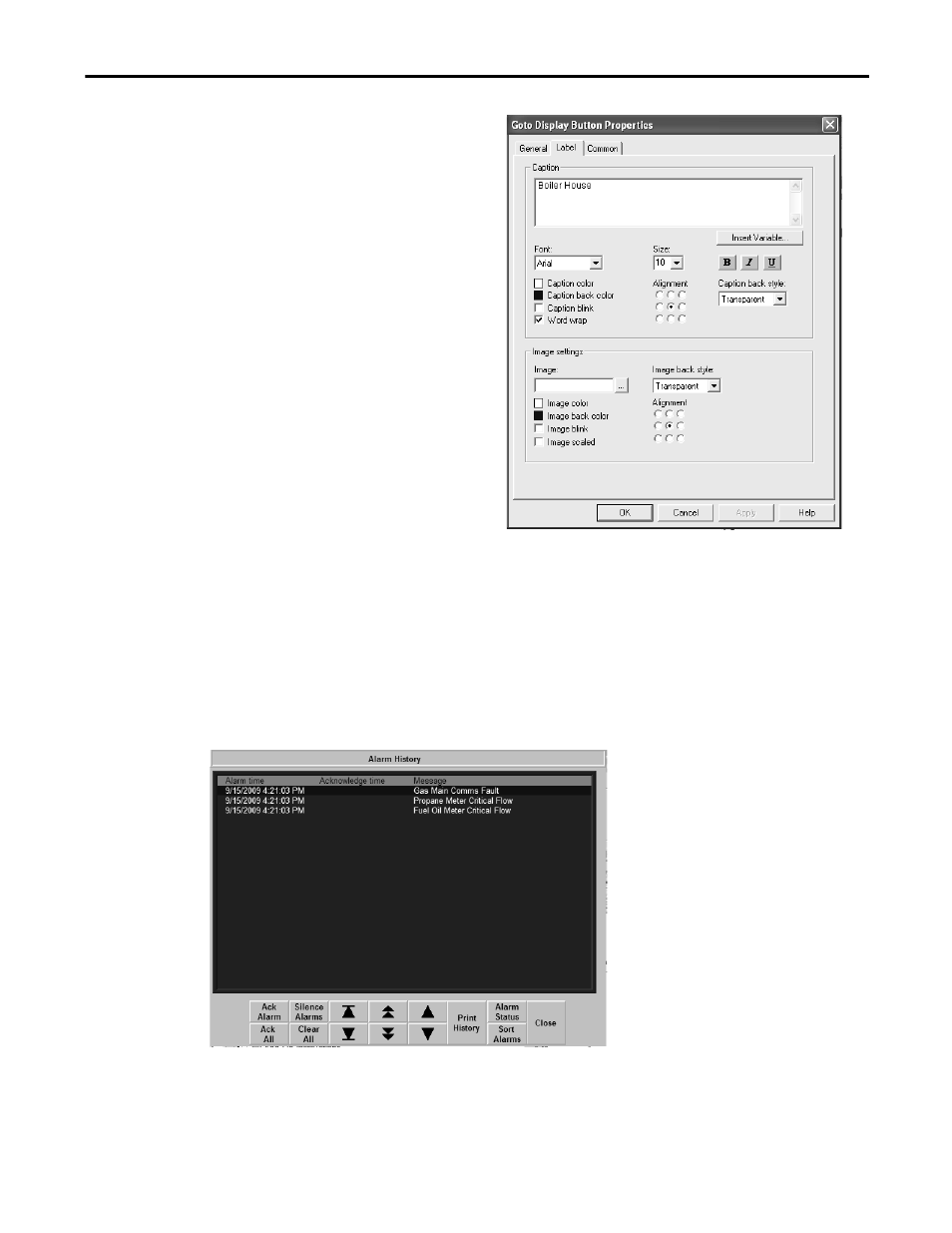

4. Click the Label tab and type the text you want
displayed on the button.
For this example, Boiler House is entered.
5. Click OK.
6. Save and test your application by creating a runtime
application.
Configure Alarm History Faceplate
The Alarm History Faceplate leverages the alarm functionality in FactoryTalk View Machine Edition and provides time
and date-stamped alarm, and fault information for energy data collector devices. This faceplate works in conjunction with
energy and faceplate Add-On Instructions.
In this example, the Alarm History Faceplate shows alarms from three energy meters.
