Chapter 3 Energy Data Collector Configuration
Configure a PowerMonitor 1000 Device
This section shows you how to configure parameters of a PowerMonitor 1000 device by using its internal Display and
Configuration web page. Certain settings are needed for the PowerMonitor to meter accurately, communicate correctly,
and work with FactoryTalk EnergyMetrix software properly. You will set the network configuration, voltage mode, PT and
CT ratios, demand values, and the date and time. Your application may require additional configuration.
Follow these steps to configure PowerMonitor 1000 device parameters.
1. Launch the Internet browser on your computer.
2. In the Address field, type the IP address of your PowerMonitor 1000 device.
The default IP address is 192.168.254.
xxx, where xxx is the unit’s id. The default address simplifies the task of
making the initial connection to the unit from a personal computer.
Configure the Ethernet IP Address
Follow these steps to configure the Ethernet IP address of a PowerMonitor 1000 device.

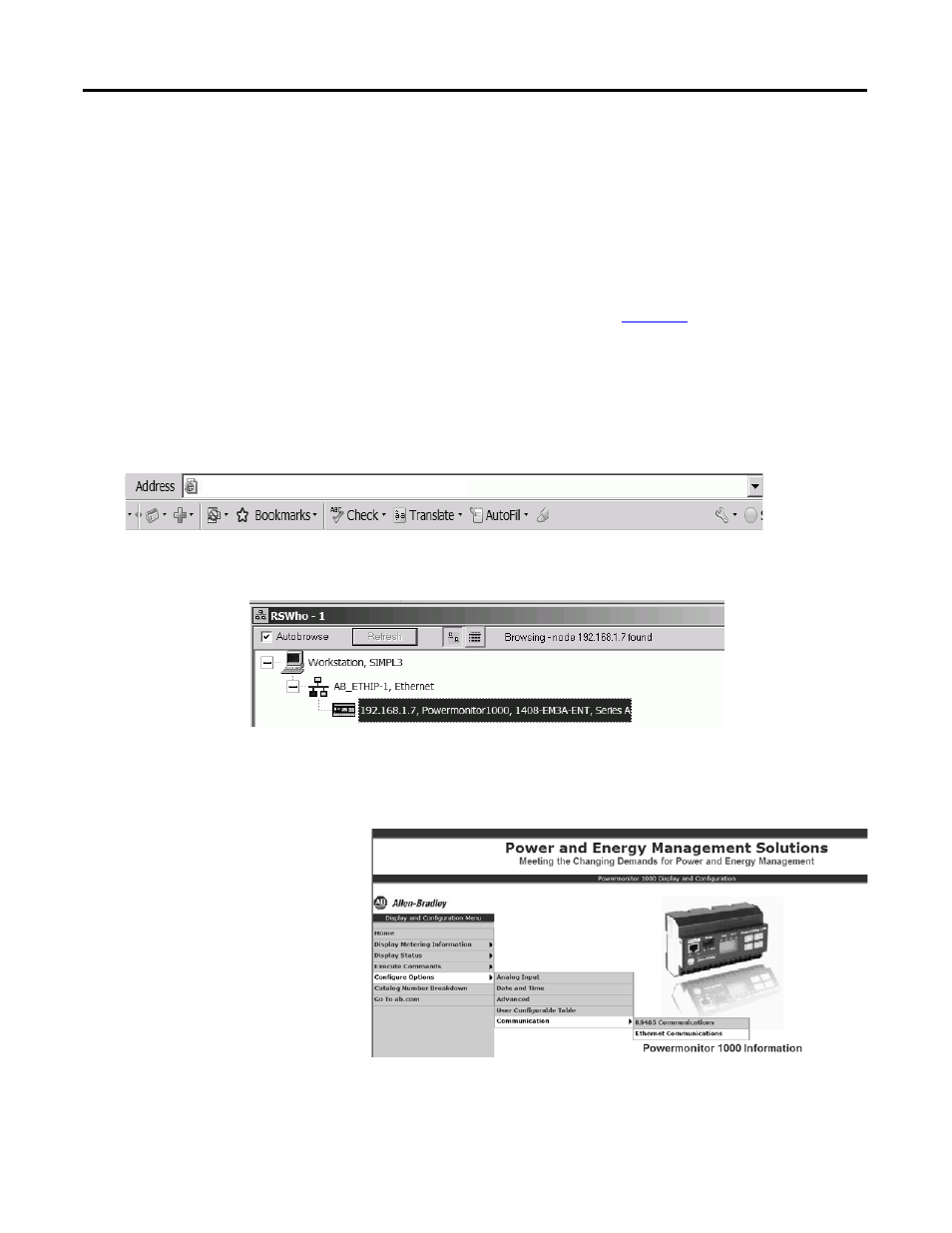

1. Choose Configure Options>
Communication>Ethernet
Communications to access the
Ethernet Configuration page.
TIP Network configuration is provided for the PowerMonitor 1000 on Ethernet device. For other communication options,
refer to the PowerMonitor 1000 Unit Installation Instructions, publication
1408-IN001
TIP You can check the IP address of the PowerMonitor 1000 device from its display or by using RSLinx
Classic software and configuring an EtherNet/IP driver.
http://192.168.254.23
