Add e300 module faceplate to me application – Rockwell Automation Energy Management Accelerator Toolkit Quick Start User Manual
Page 287
Rockwell Automation Publication IASIMP-QS016C-EN-P - October 2014
287
FactoryTalk View ME Energy Faceplates
Chapter 11

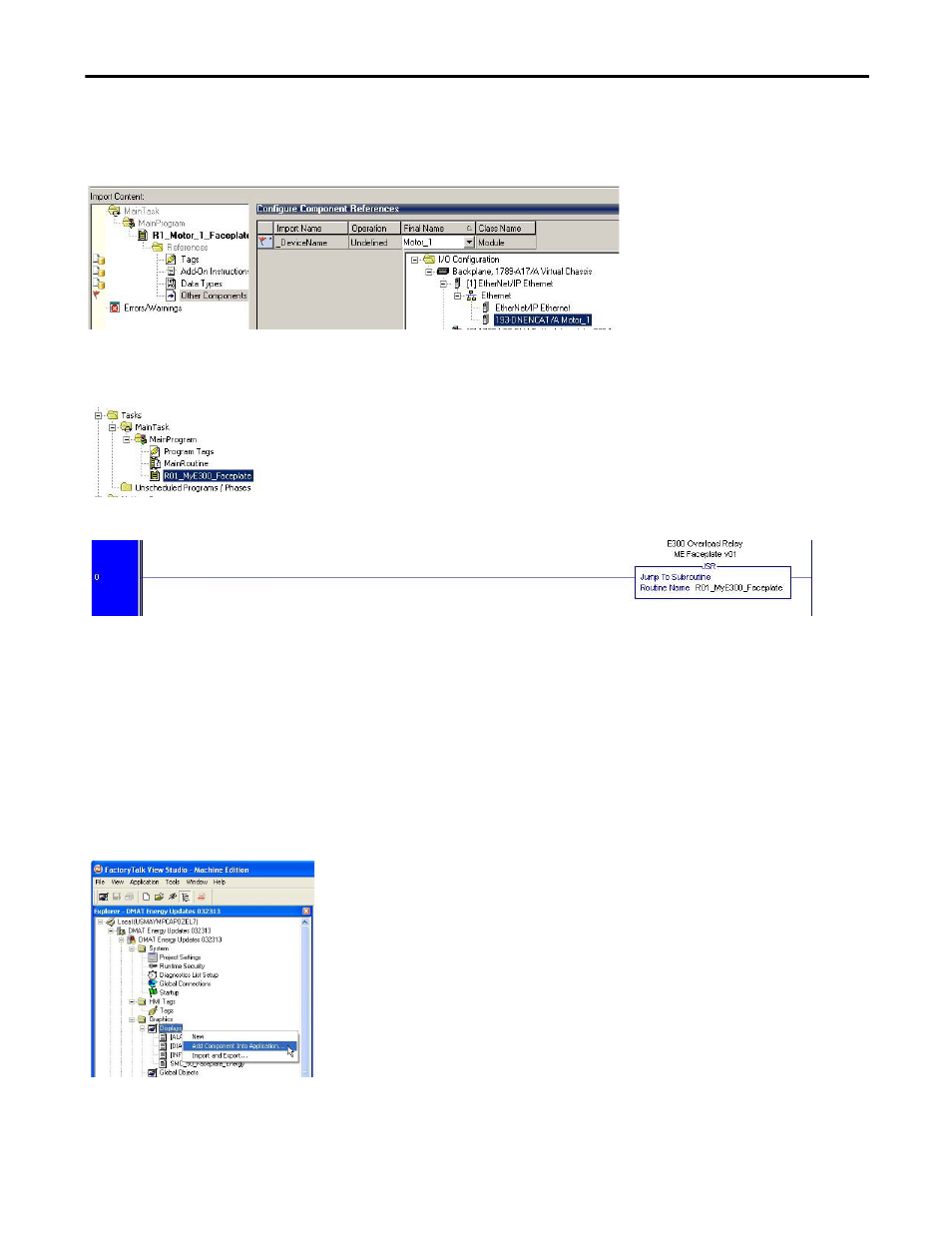

6. In the Import Content organizer, select Other Components.
The communication path can be set for all messages by selecting the device from the I/O configuration drop-down
in the Component References.
7. Click OK.
The new Routine appears in the Controller Organizer within the selected program.
8. Add a JSR to your main routine, or other desired location, to execute the new routine.
Configure FactoryTalk View ME for the E3 Plus Module Faceplate
Follow these procedures to configure the faceplate.
Add E300 Module Faceplate to ME Application
1. Launch FactoryTalk View Studio software and create or open an existing application file.
2. In the Graphics folder, right-click on Displays and choose ‘Add Component Into Application’.
