Import energy add-on, Instructions – Rockwell Automation Energy Management Accelerator Toolkit Quick Start User Manual
Page 79

Rockwell Automation Publication IASIMP-QS016C-EN-P - October 2014
79
Energy Data Collector Configuration Chapter 3

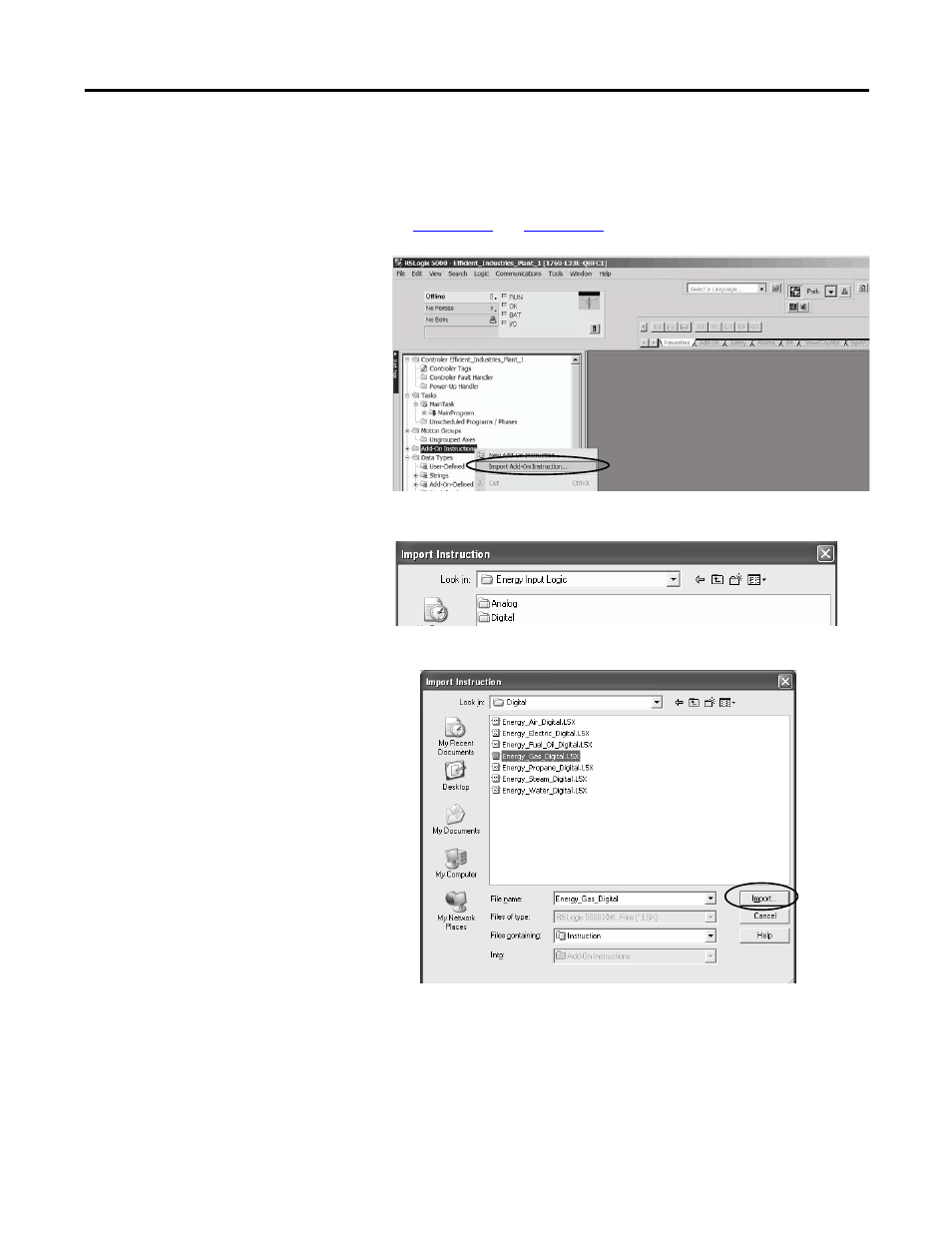

Import Energy Add-On Instructions
You will now import preconfigured Energy Add-On Instructions to support the digital and analog energy inputs listed on
the CompactLogix tab of your Energy Data Worksheet. These Add-On Instructions provide energy data calculations and
HMI interface logic for the energy inputs. Refer to
and
for detailed logic information.
1.
Navigate to and right-click the Add-
On Instructions folder.
2.
Choose Import Add-On Instruction.
3.
Browse to the Energy Input Logic folder
on your Energy Management
Accelerator Toolkit CD image.
4.
Select the Analog or Digital folder and browse to the desired energy input file.
Choose a digital input file for meters with a
pulse output representing consumption.
Select an analog input file for meters with
an analog output representing flow rate.
The example shows a gas meter digital
input selected.
5.
Click Import.
