Section 2 — Concepts
Vector Values
Path vector setting values of ± 1.0 are available, same as the Grass Valley
Group Kaleidoscope DPM.
Tension Control
In the example below, the keyframes comprise a right angle, so the TENSION
control operates on a 45° line drawn through the keyframe. This line is
referred to as the Tension Vector and is parallel to a line drawn between
adjacent keyframes (
Figure 60 ).
The TENSION soft knob controls the length of the tension vector. The length
of the tension vector is inversely proportional to its parameter value. For
example, at a Tension setting of 0 (zero), this imaginary line extends an
equal distance into and out of the keyframe, and the path through the
middle keyframe is curved. The unmodified KF2 is said to have a correc-
tion value of 0.0.

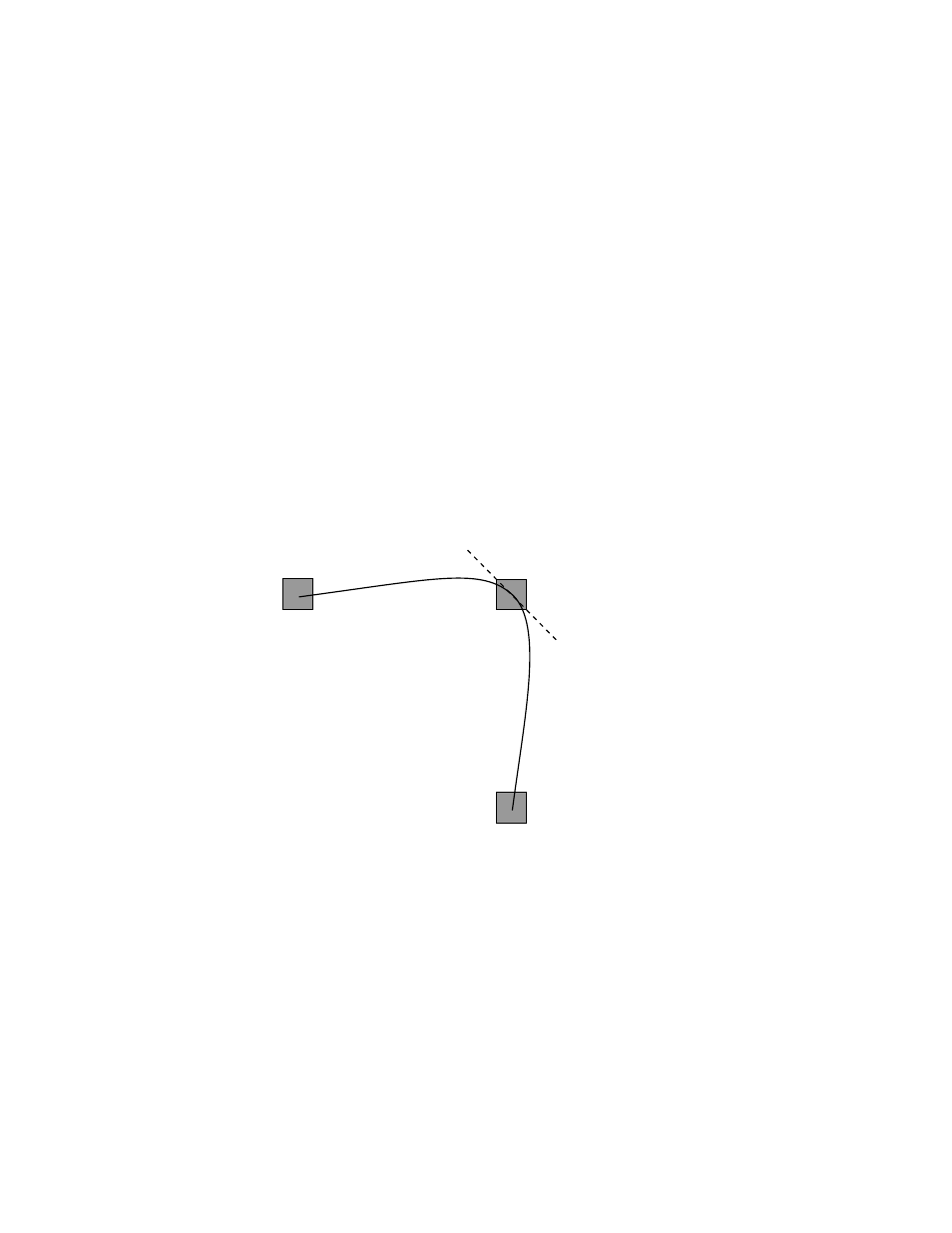

Figure 60. Tension Control Setting Zero
Tension = 0.0
KF1 KF2
KF3
Tension
Vector
0721_06_47_r0
