356 Zodiak — User Manual
Section 5 — System Operation

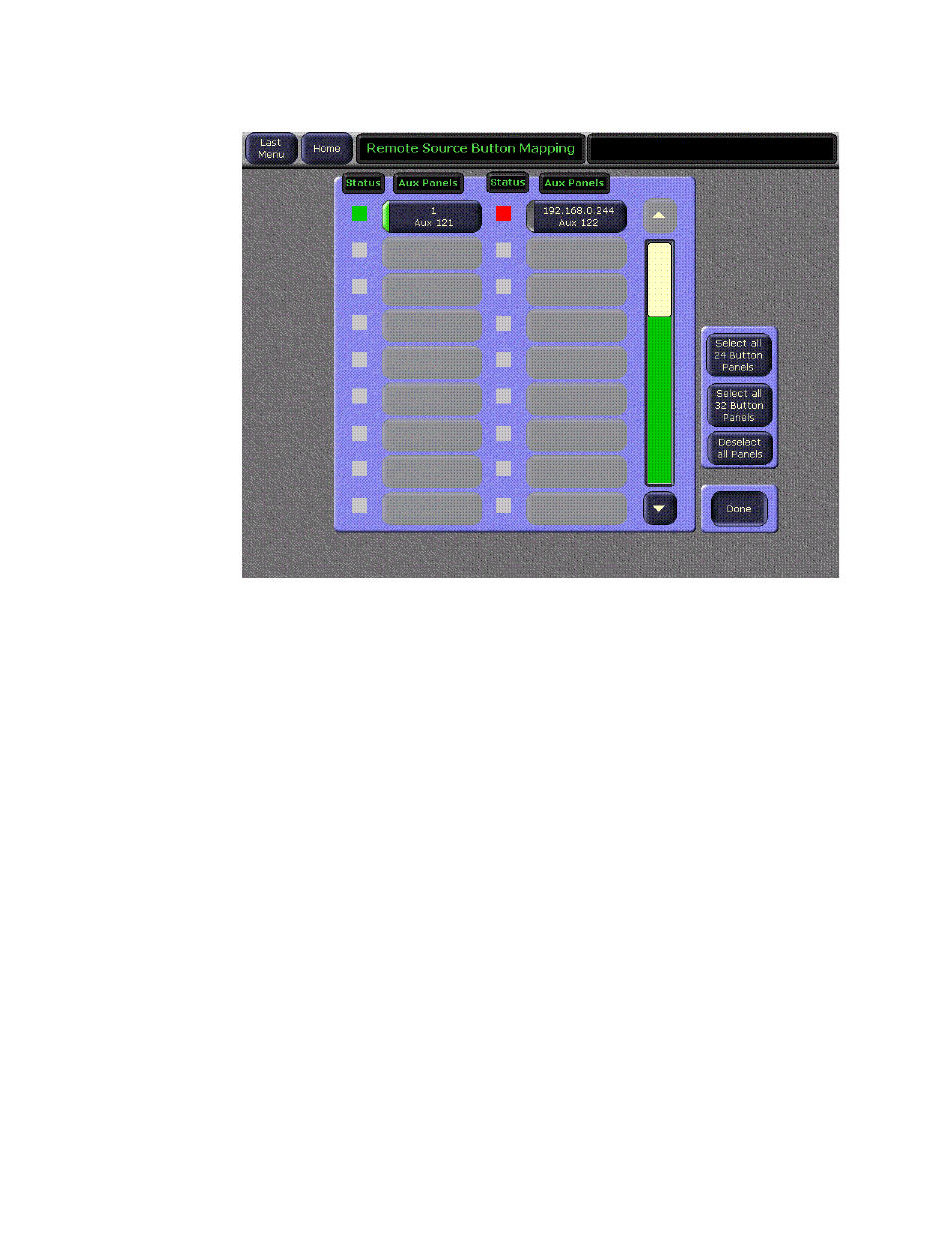

Figure 254. Remote Aux Panel Selection Menu
3. Individual Remote Aux panels are selected by touching the buttons in
the large pane. Buttons on the right allow selection of a group of
Remote Aux panels, by type. Only the same type of Remote Aux panel
can be selected with the Select All buttons or individually. An attempt
to select both a 24 button and a 32 button panel will be rejected with a
message posted indicating the panels are not the same type.
4. After selecting the desired panel(s), touch Done to return to the previous
menu ( Figure 253 on page 355 ). When multiple Remote Aux panels are
selected, changing a button’s mapping applies that individual button’s
mapping to all the selected Remote Aux panels.
5. Use the same Local Panel button mapping procedure ( page 353 ) to map
the source buttons on the Aux panel. Select the Local Aux source button
in the central pane, then select the Zodiak source in the right pane.
Note Button mapping settings for Remote Aux Panels are saved to the User Pref
configuration file.
