282 Zodiak — User Manual
Section 4 — Menus Overview
Still Store Create Edit Menu
The Still Store Create Edit menu provides many of the same controls as the
Playback menu, but also provides still capture, clip recording, save con-
trols, and also provides access to clip mark and loop editing controls.
Touch
Still Store , Create Edit to access this menu ( Figure 198 ).

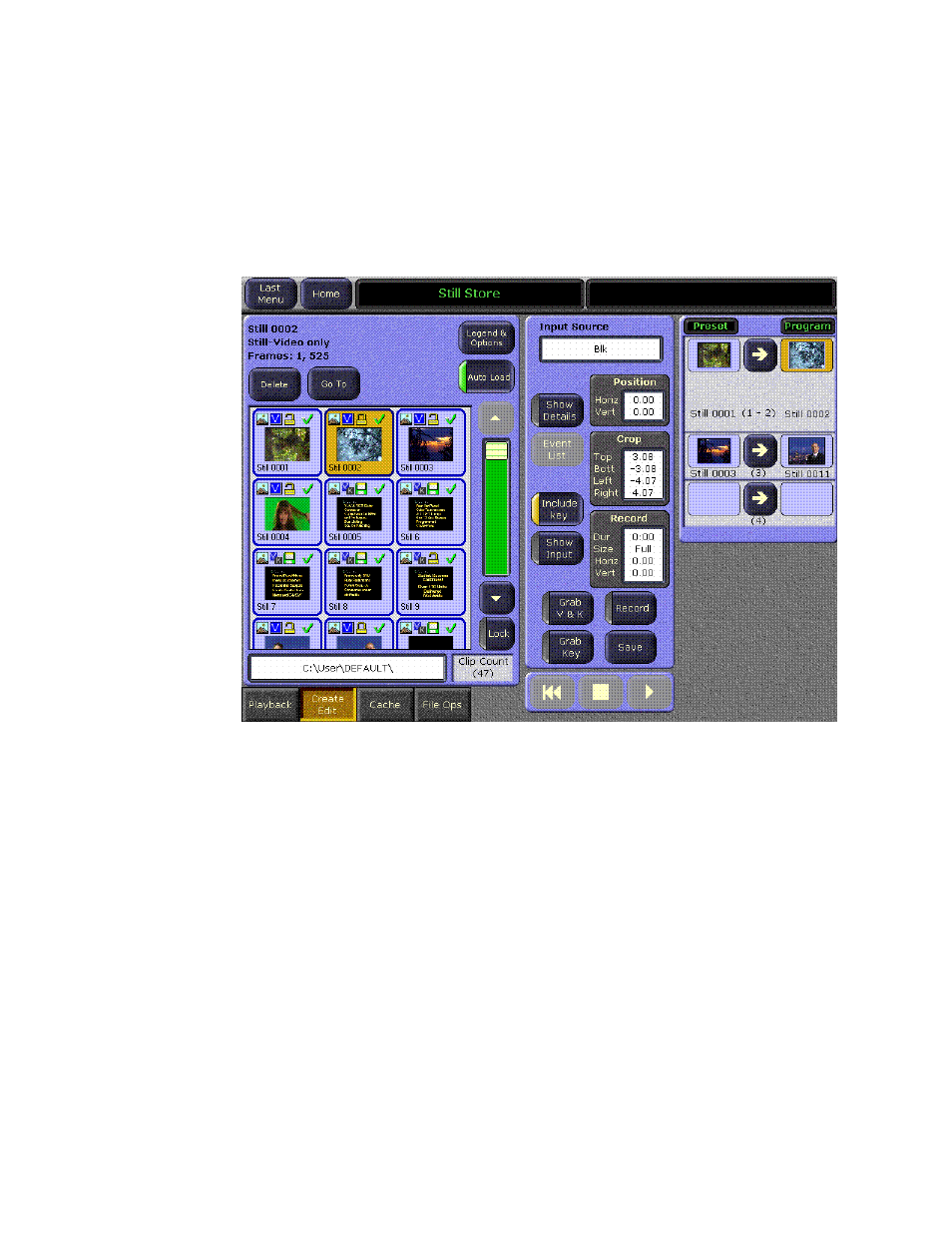

Figure 198. Still Store Create Edit Menu
Capture Controls
The Show Input button routes the input signal to the delegated output so that
the incoming video can be monitored. Any previously grabbed video or
key image is released to accommodate the new input.
The Include Key button determines if a video only or a video/key capture is
performed. This button is only active when the Still Store output is config-
ured as a video/key pair. When
Include Key is off, only a video image is cap-
tured. When on, both video and key are captured.
The Grab V & K button freezes the input stream and grabs one complete
frame. Whether video only or video and key signals are captured is deter-
mined by the
Include Key button above.
Note Images that have not been saved are only held temporarily. Selecting a dif-
ferent item or changing Still Store output delegation discards unsaved
images.
